Digital Panel Meters

Used to monitor the performance of electrical equipment, Digital Panel Meters are instruments that display an input signal in digital form. Primarily used in process control equipment as they are an affordable option to present data from instrumentation such as thermocouples, humidity and pressure sensors. They are also used in applications such as displaying voltage or current information.

Meter Types

  • Multi Function Meters
  • Ampere Meters
  • Voltage Meters
  • Frequency Meter
  • Power Factor Meter
  • Disconnect and Test Terminal Block

MFM Series

Multi-Function Meters

  • Programmable CT Primary, PT Primary/Secondary
  • RS485 Modbus RTU Communication
  • Single Pulse Output

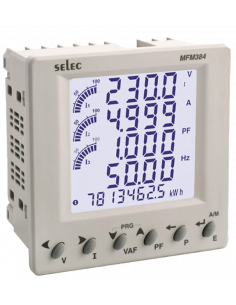

MFM384-C-CU

  • Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
  • LCD display with backlight
  • 11 to 300V (L-N), 19 to 519V (L-L) measurement
  • Max/Min power Demand measurement, Import/Export Energy measurement
  • %THD upto 31st level, RS485 Communication MODBUS RTU
  • Accuracy Class 0.5S & Class 1
  • CE, RoHS, UL & MID

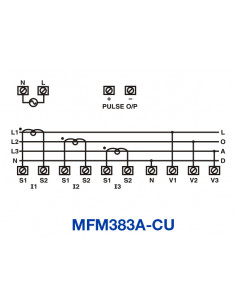

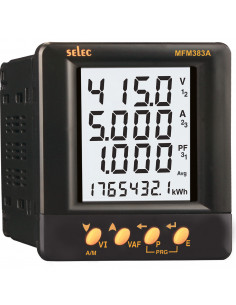

MFM338A-CU

  • Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
  • LCD display with backlight
  • 11 to 300V (L-N), 19 to 519V (L-L) measurement
  • RS485 Communication MODBUS RTU (MFM383A-C-CE)
  • Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for
  • Active,reactive & Apparent energy
  • CE, RoHS

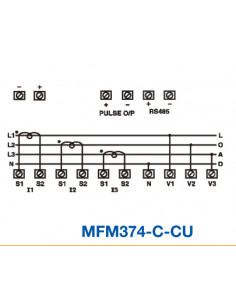

MFM374-C-CU

  • 3 rows of 4 digits
  • Compatible for 3 phase (3/4 wires), 2 phase (3 wire), 1 phase (2 wire)
  • 7-segment red LED display
  • Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for
  • Measures all electrical parameters (True RMS Voltage, True RMS Current, Active power, Reactive power, Apparent power, Power factor, Frequency, Active energy, Reactive energy & Apparent energy )
  • Memory retention for ten years
  • 85 to 270V AC auxiliary supply
  • RS485 communication (MODBUS Protocol), (Optional)

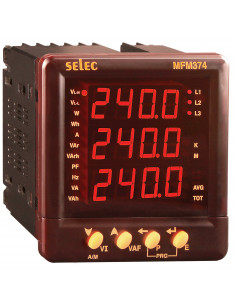

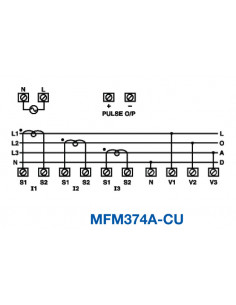

MFM374-CU

  • 3 rows of 4 digits
  • Compatible for 3 phase (3/4 wires), 2 phase (3 wire), 1 phase (2 wire)
  • 7-segment red LED display
  • Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for
  • Measures all electrical parameters (True RMS Voltage, True RMS Current, Active power, Reactive power, Apparent power, Power factor, Frequency, Active energy, Reactive energy & Apparent energy )
  • 85 to 270V AC auxiliary supply
  • Memory retention for ten years

VAF Series

Volt-Ampere-Frequency Meters

  • Programmable CT Primary, PT Primary/Secondary

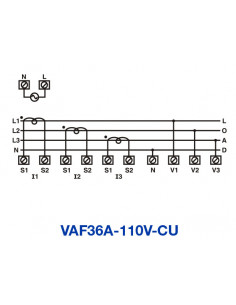

VAF36A-110V-CU

  • 1 Phase & 3 Phase systems
  • 11 to 300V AC (L-N), 19 to 519V AC (L-L) measurement
  • Accuracy of ± 0.5% of voltage, ±1% of current, ±0.1Hz of frequency, ±0.5% for RPM & ±1% for run hour
  • 3 rows 3 digits LCD display with back light
  • Bargraph for current representation
  • Panel mount
  • Supply voltage of 230V AC ±20%, 110V AC ±20%
  • CE, UL

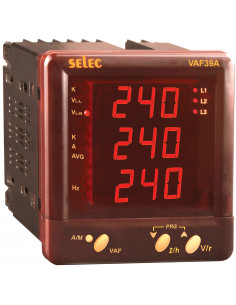

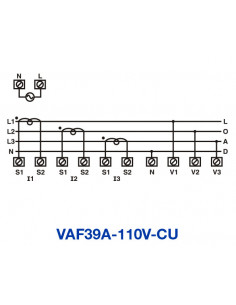

VAF39A-110V-CU

  • 1 Phase & 3 Phase systems
  • 11 to 300V(L-N), 19 to 519V(L-L) measurement
  • Accuracy of ± 0.5% of voltage, ±1% of current, ±0.1Hz of frequency, ±0.5% for RPM & ±1% for run hour
  • 3 rows 3 digits LCD display with back light
  • Panel mount
  • Supply voltage of 230 V AC ± 20%, 110 V AC ± 20%
  • CE, UL

EM Series

Energy Meters

  • Programmable CT/PT Primary/Secondary
  • RS485 Modbus RTU Communication
  • Single Pulse Output

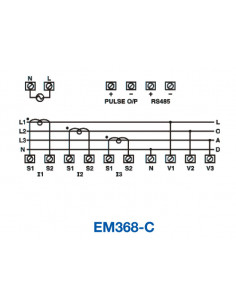

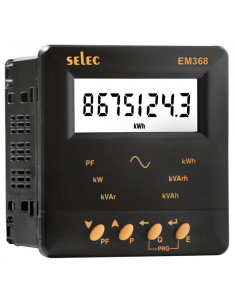

EM368-C-CU

  • LCD Display with 1 row of 8 digits
  • Pulse output, RS485 and Modbus RTU communication
  • Accuracy of 1% digit for PF
  • 1% for Power
  • Class 1 for Active energy
  • 1% for reactive/apparent energy
  • LCD Display with 1 row of 8 digits
  • Pulse output and RS485 Modbus communication
  • CE, RoHS & UL

MA Series

LCD Ampere Series

  • Integrated selector switch phase selection (MA2301)
  • LCD Display with Backlight
  • Bargraph Indicator

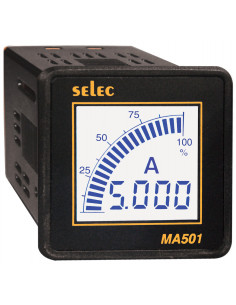

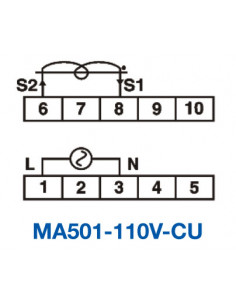

MA501-110V-CU

  • 1 phase 2 wire systems
  • Accuracy of ± 0.5% of F.S
  • LCD display with bargraph
  • 4 digits 7 segment
  • Panel mounted
  • Supply voltage of 240V AC ±20% , 110V AC ±20%
  • CE, RoHS & UL

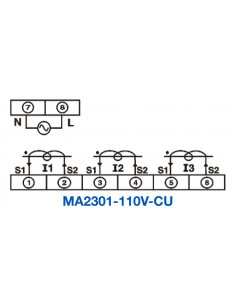

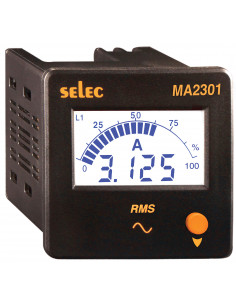

MA2301-110V-CU

  • 3 Phase 4 Wire, 3 Phase 3 Wire & 1 Phase 2 Wire systems
  • Accuracy of ± 0.5% of F.S
  • LCD display with bargraph
  • 4 digits 7 segment
  • Panel mounted
  • Supply voltage of 240 V AC
  • CE, RoHS & UL

MA12 Series

LED Ampere Meters

  • Programmable CT Primary/Shunt Setting
  • AC version (CT Type)
  • DC version (Shunt Type, External Shunt (50mV/100mV) is required for measurement.)
  • 4 Digit LED Display

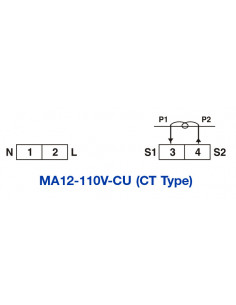

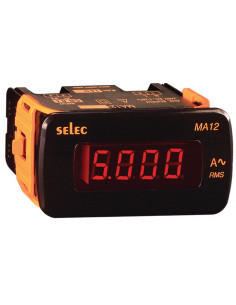

MA12-110V-CU

  • 1 phase 2 wire systems
  • Accuracy of ± 0.5% of F.S
  • 4 digit 7 segment LED display
  • Panel mounted
  • 110V AC ±20% (60Hz)
  • CE, RoHS & UL

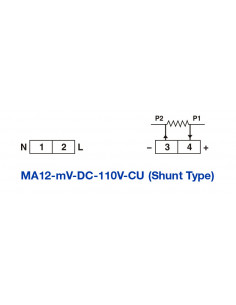

MA12-50mV-DC-110V-CU

MA12-100mV-DC-110V-CU

  • 1 phase 2 wire systems
  • Accuracy of ± 0.5% of F.S
  • 4 digit 7 segment LED display
  • Panel mounted
  • 110V AC ±20% (60Hz)
  • CE, RoHS & UL
  • Shunt size: 50mV (MA12 - 50MV) / 100mV (MA12-100mV)

MV15 Series

LED Voltage Meters

  • 3 Digit LED Display

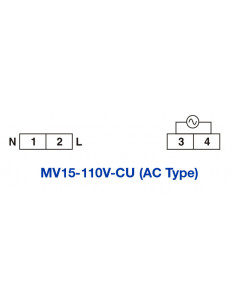

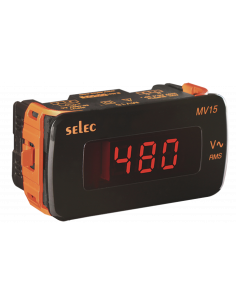

MV15-110-CU

    • 1 phase 2 wire systems
    • 50 to 480 V measurement
    • Accuracy of ± 0.5% of F.S
    • 3 Digit 7 segment LED display
    • Panel mount
    • Supply voltage of 240V AC ±20% , 110V AC ±20%
    • CE, RoHS & UL

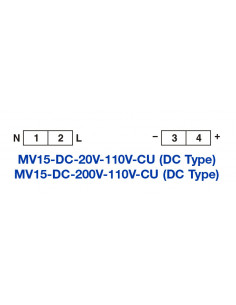

MV15-DC-20V-110V-CU

MV15-DC-2000V-110V-CU

  • 1 phase 2 wire systems
  • 50 to 480 V measurement
  • Accuracy of ± 0.5% of F.S
  • 3 Digit 7 segment LED display
  • Panel mount
  • Input voltage range: 0 ~20VDC (MV15-20V)      0 ~ 200VDC (MV15-200V)
  • Supply voltage of 240V AC ±20% , 110V AC ±20%
  • CE, RoHS & UL



MV Series

LCD Voltage Meters

  • Integrated selection switch for Phase Selection (MV2307)
  • LCD Display with Backlight
  • Bargraph Indicator

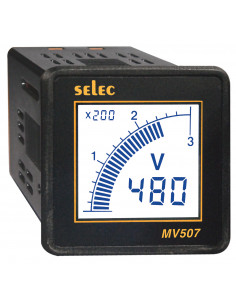

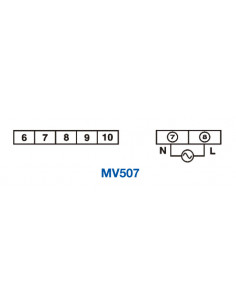

MV507-110V-CU

  • 1 phase 2 wire systems
  • 50 to 480 V measurement
  • Accuracy of ± 0.5% of F.S
  • 3 digit LCD display with analog style bargraph
  • Panel mount
  • Supply voltage of 240V AC ±20% , 110V AC ±20%
  • CE, RoHS & UL

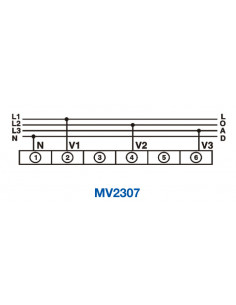

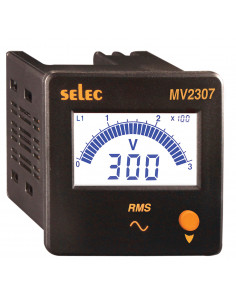

MV2307-110V-CU

  • 1 phase & 3 phase systems
  • 50 to 480 V measurement
  • Accuracy of ± 0.5% of F.S
  • 3 digit LCD display with analog style bargraph
  • Panel mount
  • Supply voltage of 240V AC ±20% , 110V AC ±20%

MF16 Series

Frequency Meter

4 Digit LED Display

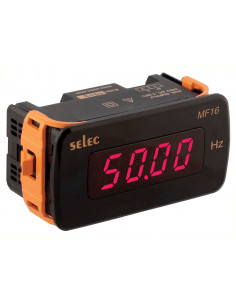

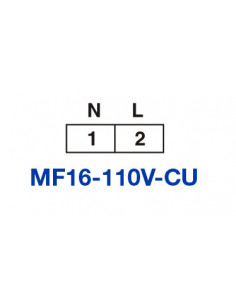

MF16-110V-CU

  • Electrical Connection: 1 phase (2 wire).
  • 45.00 ~ 65.00 Hz with accuracy of +- 0.05Hz.
  • Supply Voltage: 110V AC ( ±20%)
  • Frequency: 45 ~ 65 Hz.
  • CE, RoHS & UL

MP14 Series

Power Factor Meter

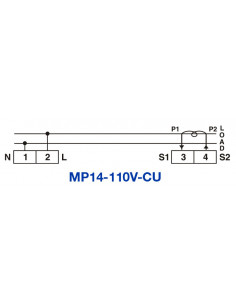

MP14-110V-CU

  • Electrical Connection 1 phase (2 wire).
  • Accuracy +/-0.05% + /-2 digits
  • Input Current Range 0.25 ~ 6A (AC).
  • Supply Voltage: 110V AC ( ±20%)
  • Frequency: 50 / 60Hz.
  • Parameter resolution : 0.001
  • CE, RoHS & UL

Disconnect & Test Terminal Blocks

For Meter Circuits

Disconnect and Test Terminals Blocks are an ideal choice for measuring control and regulatory circuits. The terminals provide a clear functional advantage for devices having utility instruments and associated transformers when it is mandatory to keep the secondary side shorted at any point while taking current measurements. Specially designed socket head screws act as test/monitoring points.

CDS6U

  • Rated Voltage: 600 V, 800 V
  • Rated Current : 45 A,  41 A
  • Tightening Torque: 14 lb-in, 0.8 Nm
  • Housing Material: Polyamide 6.6
  • Type of Connection: 2 Screw Clamp
  • Function: Sliding Type Disconnect and Test
  • CE, RoHS, UL, CSA, IEC, & VDE

CDS6U/TS

  • Rated Voltage: 600 V, 630 V
  • Rated Current : 45 A,  41 A
  • Tightening Torque: 14 lb-in, 0.8 Nm
  • Housing Material: Polyamide 6.6
  • Type of Connection: 2 Screw Clamp
  • Function: Sliding Type Disconnect and Test
  • CE, RoHS, UL, CSA, IEC
