Mini Rail and Panel Mount Terminal Blocks
Terminal blocks that are smaller than most and do not need DIN Rail to be mounted.
FEATURES
- Screw clamp & Spring Clamp Technology versions
- Extremely Compact wiring solution
- 15mm Mini Rail Terminals
- Modular easy snap together Panel Mount Terminals
- High Temperature Ceramic Solution
- Reliable Gas-tight connection
Click Here for Data Sheet
Filters
Selection Guide
Termination
Termination
Current UL
Current UL
Type
Type
Selection Guide
Termination
Termination
Current UL
Current UL
Type
Type
Grey - CMB4 - Terminal Block
CMB4
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, greyDATA SHEET3D STEP File - TBD
Beige - CMB4/BG - Terminal Block
CMB4/BG
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, beigeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Red - CMB4/R - Terminal Block
CMB4/R
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, redDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Blue - CMB4/BU - Terminal Block
CMB4/BU
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, blueDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Black - CMB4/BL - Terminal Block
CMB4/BL
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, blackDATA SHEET3D STEP File - TBD<< Product photo color will vary depending on part number selection.
Orange - CMB4/O - Terminal Block
CMB4/O
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, orangeDATA SHEET3D STEP File - TBD<< Product photo color will vary depending on part number selection.
Green - CMB4/G - Terminal Block
CMB4/G
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, greenDATA SHEET3D STEP File - TBD<< Product photo color will vary depending on part number selection.
Yellow - CMB4/Y - Terminal Block
CMB4/Y
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, yellowDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
White - CMB4/W - Terminal Block
CMB4/W
Term Blk, Screw, Panel Mount, Feed-Thru.Modular, 35A, 300V, 22-10AWG, 6mm, whiteDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Grey - CMT4 - Terminal Block
CMT4
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, greyDATA SHEET3D STEP File - TBD
Beige - CMT4/BG - Terminal Block
CMT4/BG
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, beigeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Red - CMT4/R - Terminal Block
CMT4/R
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, redDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Blue - CMT4/BU - Terminal Block
CMT4/BU
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, blueDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Black - CMT4/BL - Terminal Block
CMT4/BL
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, blackDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Orange - CMT4/O - Terminal Block
CMT4/O
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, orangeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Green - CMT4/G - Terminal Block
CMT4/G
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, greenDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Yellow - CMT4/Y - Terminal Block
CMT4/Y
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, yellowDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
White - CMT4/W - Terminal Block
CMT4/W
DIN Term Blk, Screw, Feed-Thru.15mm Mini Rail, 35A, 300V, 22-10AWG, 6mm, whiteDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Yellow/Green - CGMT4 - Terminal Block
CGMT4
DIN Term Blk, Screw, Grnd15mm Mini Rail, 22-10AWG, 6mm, yellow/greenDATA SHEET3D STEP File - TBD
Grey - CSCP2.5T - Terminal Block
CSCP2.5T
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, greyDATA SHEET3D STEP File - TBD
Beige - CSCP2.5T/BG - Terminal Block
CSCP2.5T/BG
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, beigeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.

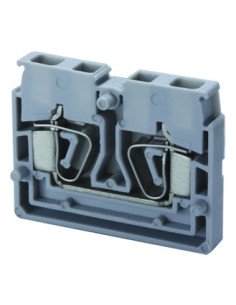

Red - CSCP2.5T/R - Terminal Block
CSCP2.5T/R
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, redDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Blue - CSCP2.5T/BU - Terminal Block
CSCP2.5T/BU
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, blueDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Black - CSCP2.5T/BL - Terminal Block
CSCP2.5T/BL
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, blackDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Orange - CSCP2.5T/O - Terminal Block
CSCP2.5T/O
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, orangeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Green - CSCP2.5T/G - Terminal Block
CSCP2.5T/G
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, greenDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Yellow - CSCP2.5T/Y - Terminal Block
CSCP2.5T/Y
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, yellowDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
White - CSCP2.5T/W - Terminal Block
CSCP2.5T/W
Term Blk, Spring, Panel Mount, Feed-Thru.2 Conn, 20A, 600V, 22-14AWG, 5mm, whiteDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Grey - CSCP2.5T2 - Terminal Block
CSCP2.5T2
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, greyDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.

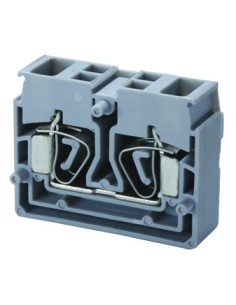

Beige - CSCP2.5T2/BG - Terminal Block
CSCP2.5T2/BG
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, beigeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Red - CSCP2.5T2/R - Terminal Block
CSCP2.5T2/R
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, redDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Blue - CSCP2.5T2/BU - Terminal Block
CSCP2.5T2/BU
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, blueDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Black - CSCP2.5T2/BL - Terminal Block
CSCP2.5T2/BL
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, blackDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Orange - CSCP2.5T2/O - Terminal Block
CSCP2.5T2/O
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, orangeDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Green - CSCP2.5T2/G - Terminal Block
CSCP2.5T2/G
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, greenDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
Yellow - CSCP2.5T2/Y - Terminal Block
CSCP2.5T2/Y
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, yellowDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
White - CSCP2.5T2/W - Terminal Block
CSCP2.5T2/W
Term Blk, Spring, Panel Mount, Feed-Thru.4 Conn, 20A, 600V, 22-14AWG, 10mm, whiteDATA SHEET3D STEP File - TBD< Product photo color will vary depending on part number selection.
