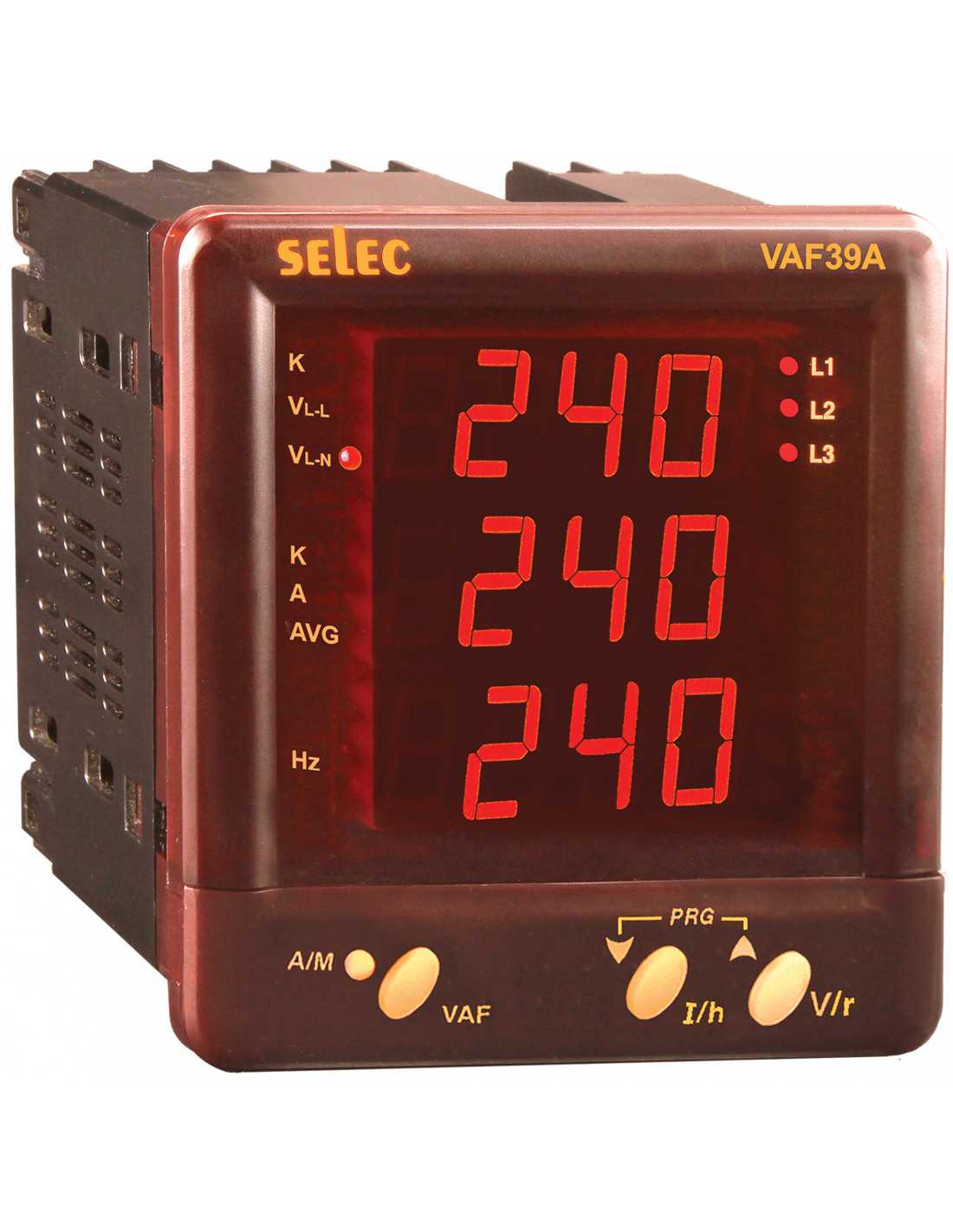

VAF39A-110V-CU, Volt-Ampere-Frequency Meters

VAF Series

Volt-Ampere-Frequency Meters

1 Phase & 3 Phase systems
11 to 300V(L-N), 19 to 519V(L-L) measurement
Accuracy of ± 0.5% of voltage, ±1% of current, ±0.1Hz of frequency, ±0.5% for RPM & ±1% for run hour
3 rows 3 digits LCD display with back light
Panel mount
Supply voltage of 230 V AC ± 20%, 110 V AC ± 20%
CE, UL

Programmable CT Primary, PT Primary/Secondary

Digital Display: 7 Segment LED Display
Digits: 3 rows of 3 digits
Bargraph: none
Display Scrolling: Automatic/ Manual
Supply Specification: 110VAC +/- 20% (50/60Hz)

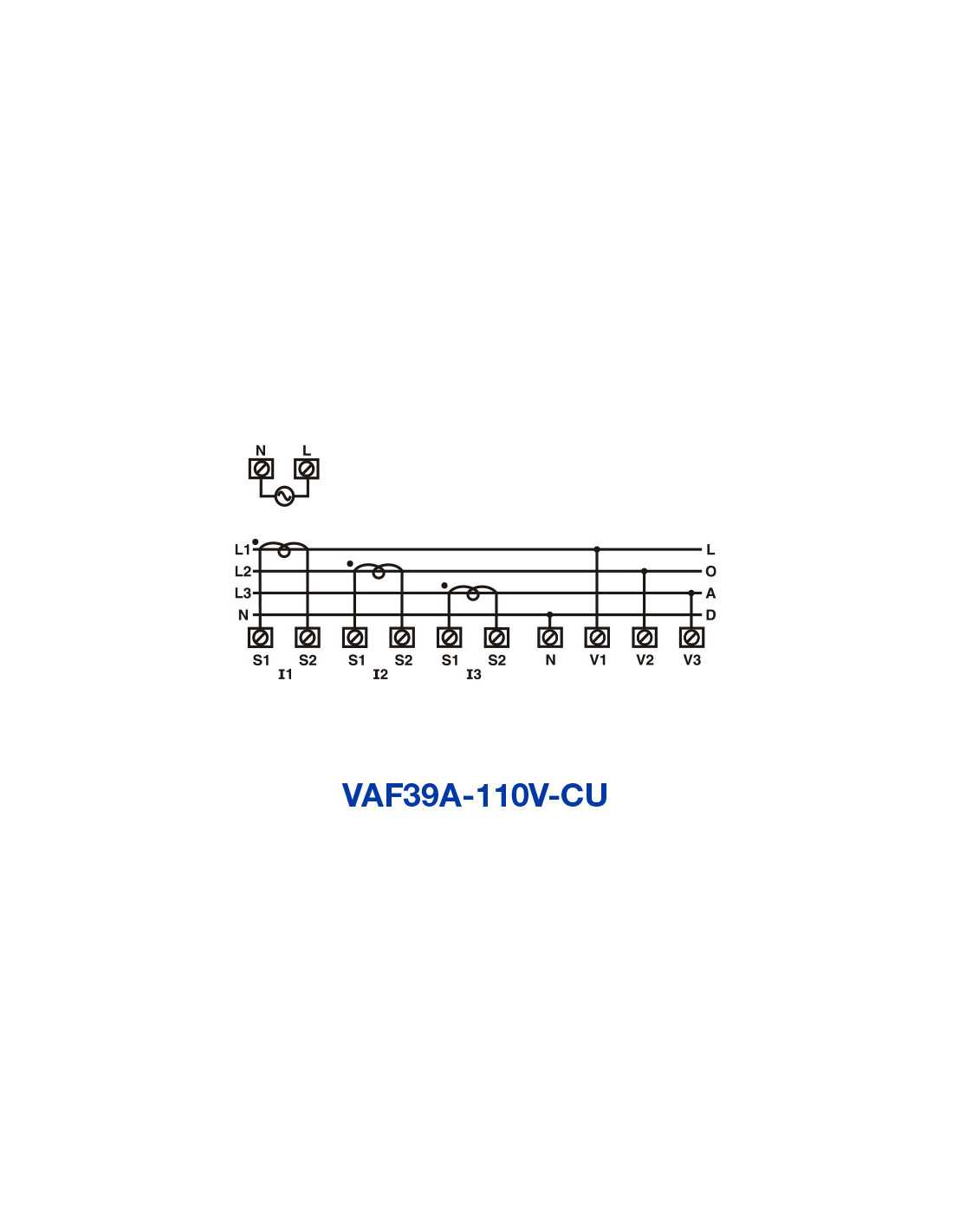

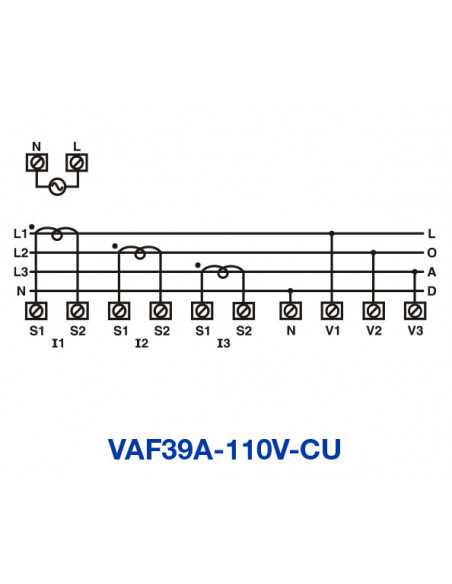

Electrical Wire System: 3 Phase (3/4 wires)
Input Voltage Range: 11 ~ 300 VAC (Phase to Neutral); 19 ~ 519 VAC (Phase to Phase)
Input Current Range: 20mA ~ 6A (External CT required for current greater 5A)
Input Frequency: 45 ~ 65Hz
Parameter Resolution - Current: 0.01, 0.1, 1A/KA
Parameter Resolution - Voltage: 0.1 V/KV
Parameter Resoultion RPM: 0.1
Parameter Resolution - Run Hour: 0.1 hr (0~99999.9 hr)
Accuracy Class - Voltage (L-N, L-L), Current: +/-0.5% of Full-Scale Value, +/- 2 digits
Accuracy Class - Average Voltage (L-N, L-L), Current: +/-0.5% of Full-Scale Value, +/- 2 digits
Accuracy Class - Frequency: 0.1 Hz
Accuracy Class - RPM: +/- 0.5%
Accuracy Class - Run Hour: +/-1%
Pulse Output: none
Communication: none
CT Primary: 5A ~ 10,000A (Progammable for any value)
CT Secondary: 5A fixed (External CT must be connected for current greater 5A)
PT Primary: 100V ~ 500 kV (any value)
PT Secondary: 100V ~ 500 VAC (any value)
Temperature (meters): Operating: -10°C~55°C, Storage: -20°C~ 75°C
Humidity: Up to 85% RH
Protection Level (meters): IP65 for Faceplate

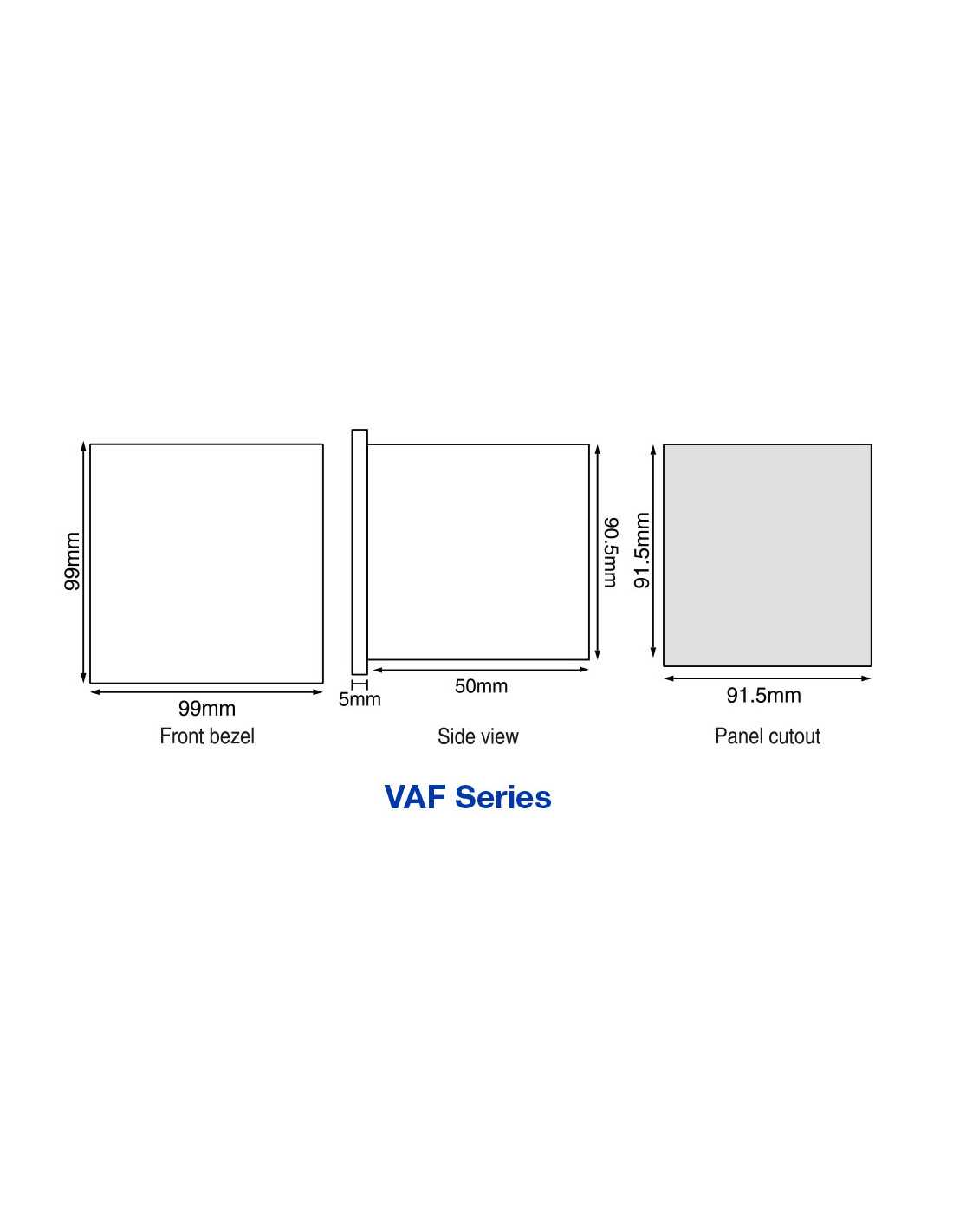

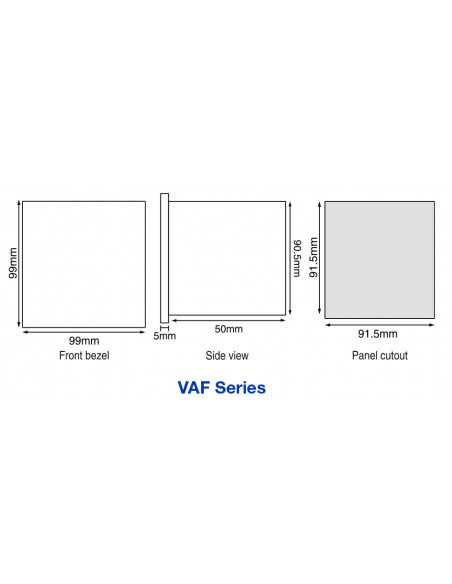

Size (meters): 1/8 DIN, 48 mm x 96 mm
Weight (meters): 0.79 lbs (357g)
Terminal Size Acceptability and Torque: 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)

Part Number VAF39A-110V-CU
