Carrier Profile for 7.5mm DIN Rail, 250 mm length
91.905
Carrier Profile for 7.5mm DIN Rail, 250 mm length

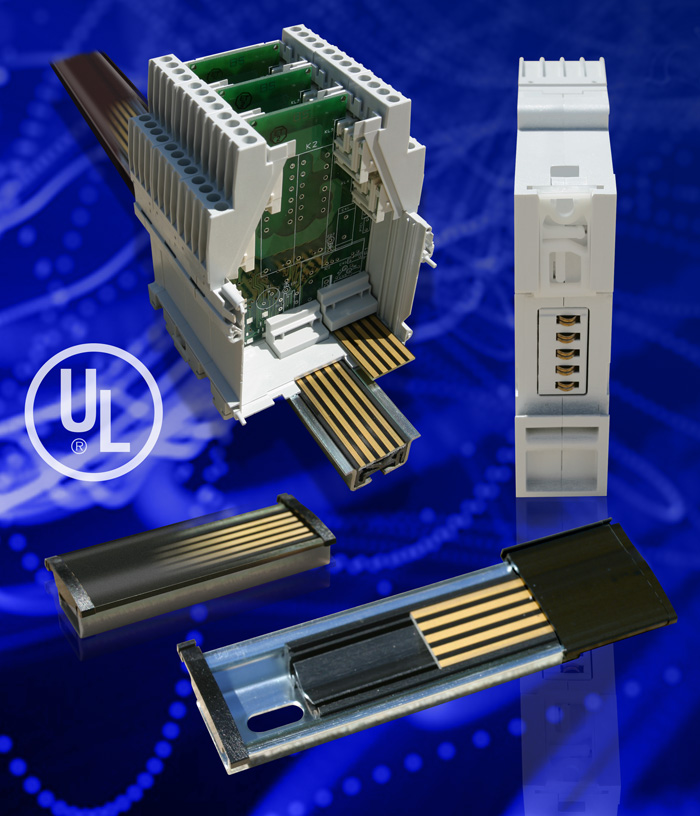

In-Rail Busbar System
Click for catalog pages
DIN Rail Mounted Electronic Enclosures
In-Rail Bus
- DIN Rail Mount
- Universal Bus system useable with most DIN enclosure types*
- 5 Bus lines per Bus PCB
- 5A per bus, 25A max per PCB rail
- Quick and easy mounting in the DIN rail
- Gold plated contact surfaces
- Contact block springs with double contacts
- High spring force on the contact springs
- Max temperature 70°C
- Can be used for internal busing
- Standard DIN profiles, 7.5mm and 15mm
- UL approval
- 1 meter piece components can be cut to suitable lengths
* Enclosures must be miled to accept contact block.
| Ordering Information | |
| Part Number | Description |
| 91.905 | Carrier Profile for 7.5mm DIN Rail, 1 meter length |
| 91.915 | Carrier Profile for 15mm DIN Rail, 1 meter length |
| 91.925 | BUS PCB, 1 meter length |
| 91.935 | Carrier-rail Cover, 1 meter length |
| 91.945 | Safety Cap – Right |
| 91.946 | Safety Cap – Left |
| 91.955 | Spring Contact Block |
| 2511120/1M | TS35x7.5mm DIN Rail, slotted, 1 meter length |
| CA701-15/S | TS35x15mm DIN Rail, slotted, 1 meter length |
Carrier Profile for 15mm DIN Rail, 250 mm length
91.915
Carrier Profile for 15mm DIN Rail, 250 mm length
