MP14-110V-CU, Power Factor Meter
MP14-110V-CU
MP14 Series
Power Factor Meter

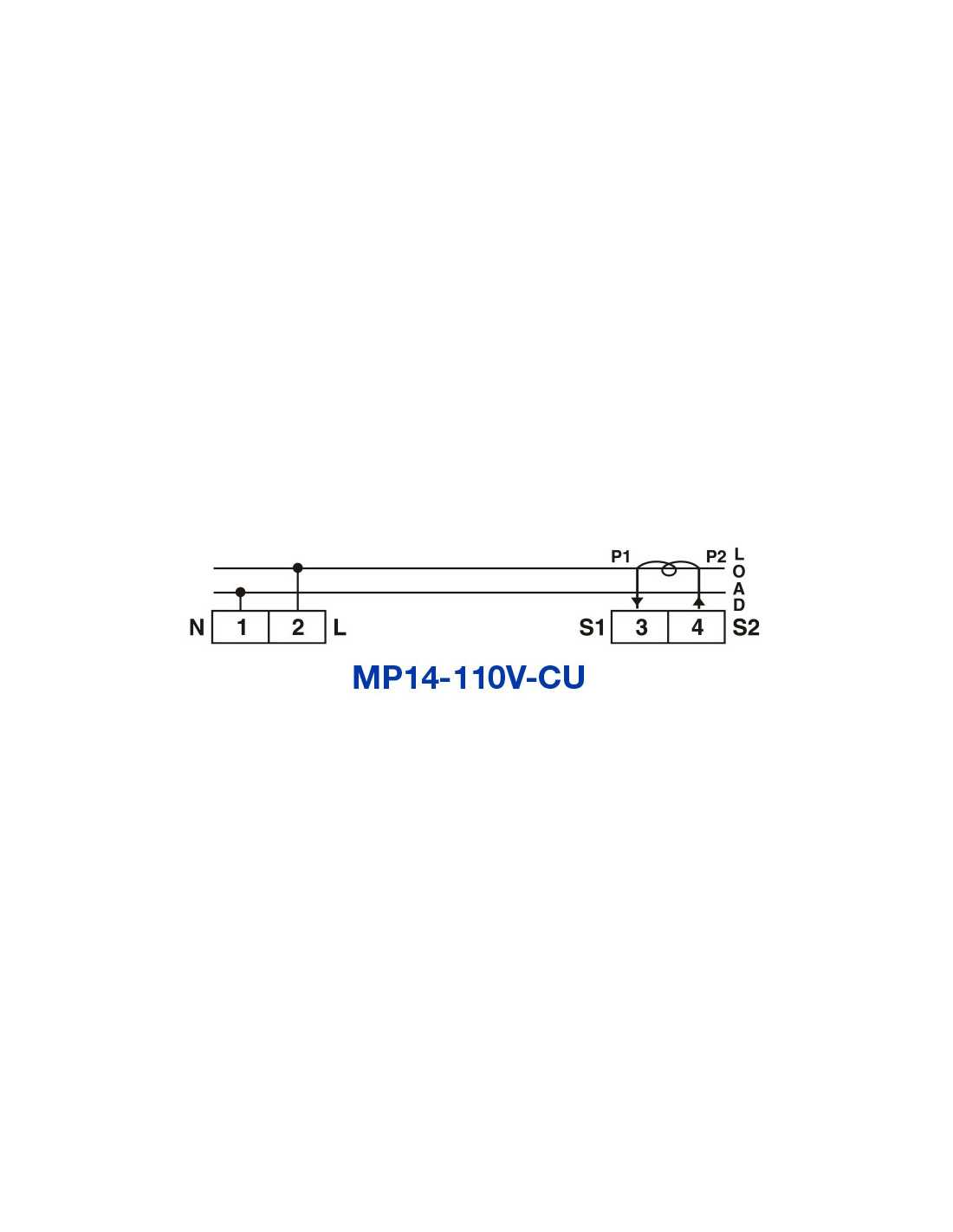

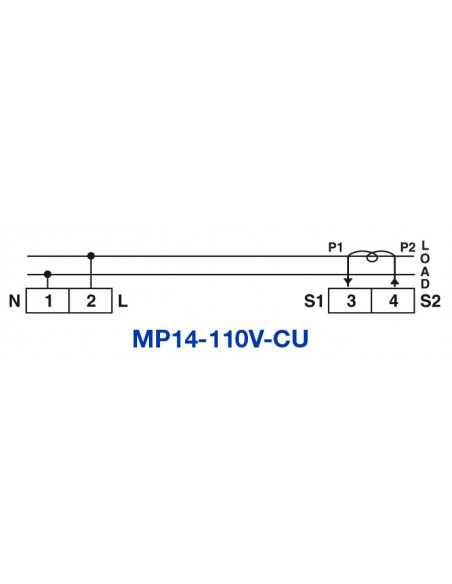

- Electrical Connection 1 phase (2 wire).
- Accuracy +/-0.05% + /-2 digits
- Input Current Range 0.25 ~ 6A (AC).
- Supply Voltage: 110V AC ( ±20%)
- Frequency: 50 / 60Hz.
- Parameter resolution : 0.001
- CE, RoHS & UL
4 Digit LED Display
- Digital Display
- 7 Segment LED Display
- Digits
- 4 digits
- Bargraph
- none
- Display Range
- -1.000 ~ +1.000
- Supply Specification
- 110VAC +/- 20% (50/60Hz)
- Electrical Wire System
- 1 Phase (2 wire)
- Input Current Range
- 0.25 ~ 6A
- Input Frequency Range
- 50/60 Hz
- Parameter Resolution - Frequency
- none
- Parameter Resolution - Power Factor
- 0.001
- Accuracy Class - Frequency
- none
- Accuracy Class - Power Factor
- +/- 0.05% +/- 2 digits
- Pulse Output
- none
- Communication
- none
- Programmable Parameters
- none
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate

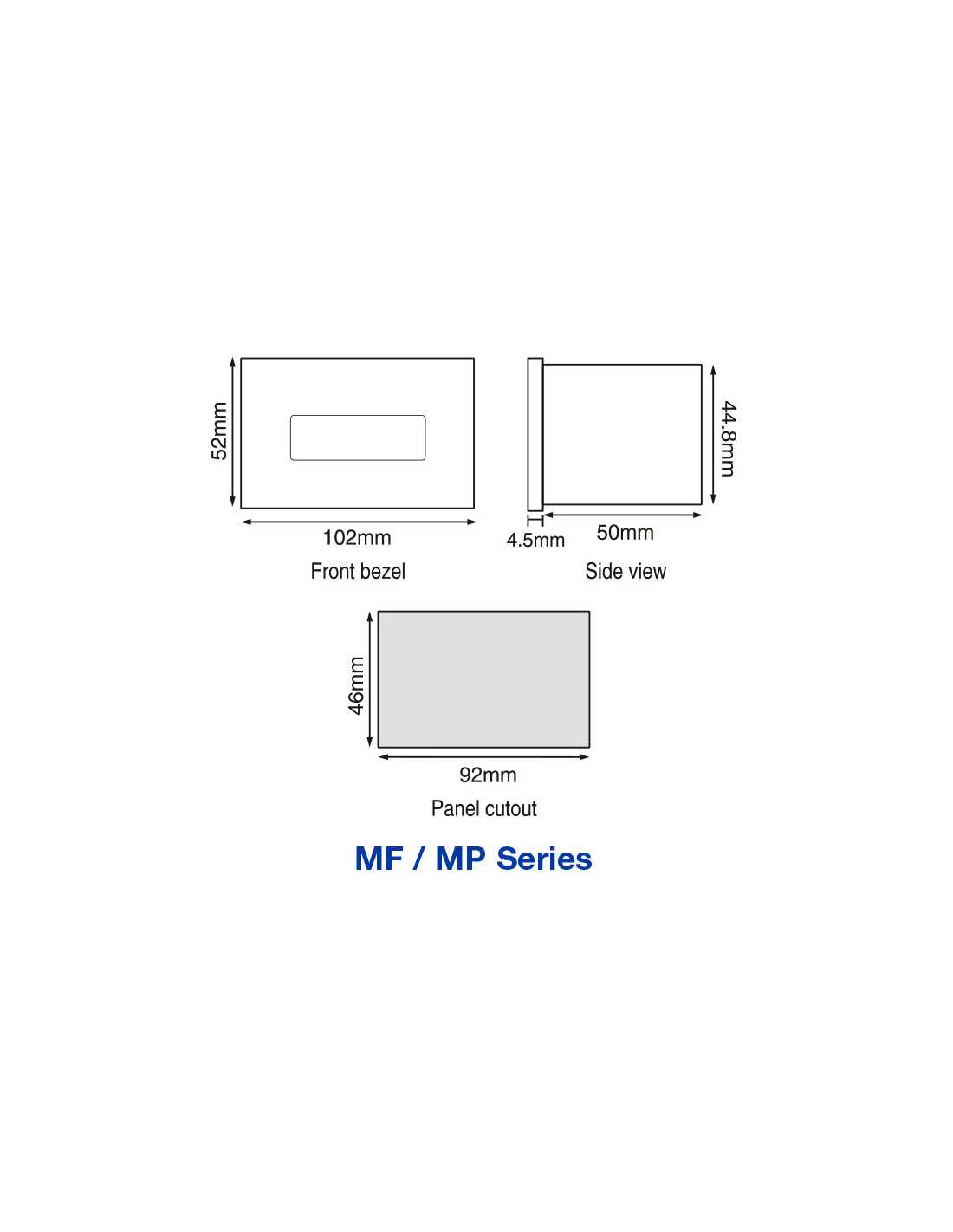

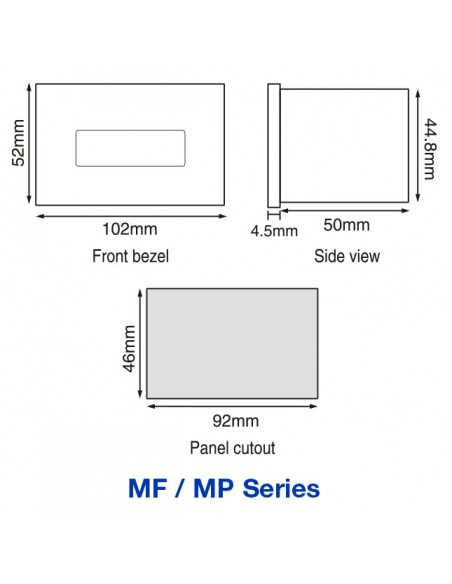

- Size (meters)
- 1/8 DIN, 48 mm x 96 mm
- Weight (meters)
- 0.37 lbs (170g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
