GEOS Series

Altech GEOS Series Enclosures offer IP67-rated, UV- and impact-resistant protection—ideal for harsh outdoor environments and demanding industrial applications.

Scroll down for individual part details.

Tough • Flexible • Safe

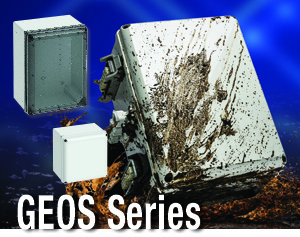

GEOS - Industrial and Outdoor Enclosure

High quality materials and an innovative design make the new GEOS series a universal solution and longlasting enclosure for indoor and outdoor applications. The UV and weather resistance of the high-quality polycarbonate and the new and innovative “Drain Protect” seal system guarantee optimal protection against most environmental influences, as well as rain, cold and heat. Even in tough conditions caused by aggressive atmospheres, oils, greases or mechanical stresses, you can rely on the GEOS enclosure. Certifications for the most varied applications give the user confidence at all times.

Tough

  • UV and weather resistant
  • Corrosion resistant
  • Temperature resistant -35° to 80°C
  • Rugged
  • High impact resistance - IK 09

Flexible

  • Modular component mounting system
  • Lightweight
  • Easily machined
  • Multiple mounting and closure options

SAFE

  • Drain Protect seal system
  • Air ventilation element option
  • High protection rating IP 67
  • Insulated protection
  • Safety agency approvals (UL, CSA)

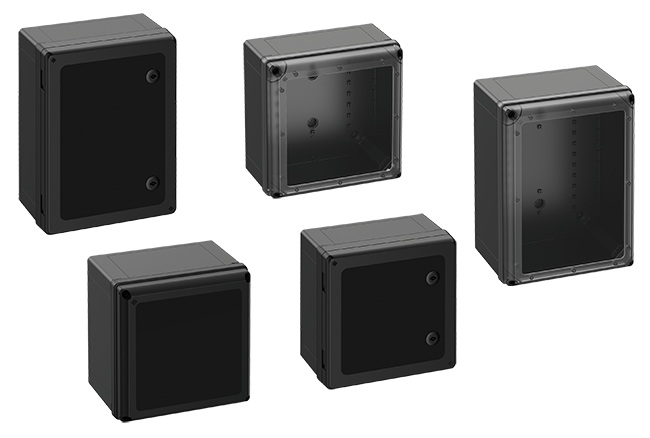

Now in Black

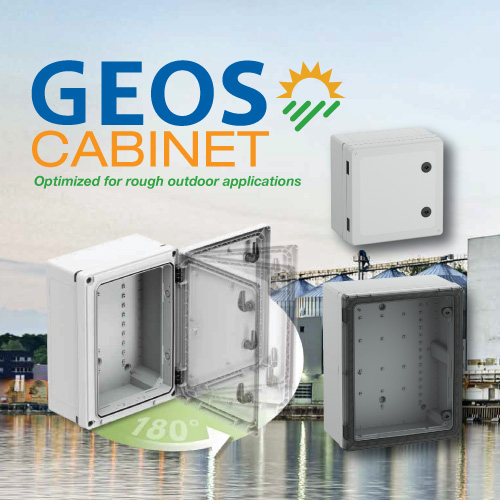

Altech now offers a hinged series called GEOS Cabinet.

Features

  • Cover frame with hinged door
  • Horizontal or vertical hinge layout
  • Locking system - cam lock (3mm - two bit key)
  • Transparent and opaque doors
  •  3 base sizes
  • Up to 2 enclosure heights
  • Cabinets tested according to IEC 61439, IEC 62208, UL 50, UL 50E, CSA 22.2
  • UL TYPE 4X rated

Advantages

  • Can be opened quickly and easily and closed safely
  • Good operability of components
  • No restrictions for the assembly of internal fittings
  • Doors with wide opening angle > 180°
  • Access to the interior space with standard locking system
    (3 mm - two-bit key)
  • Alternative locking inserts available as accessories
  • Doors are guided by frames to be solid
  • Doors easily removed or reversed
  • Frame accepts accessories (front plates, internal swing doors, contact protection modules, door stops, wiring
Filters
Filter by
Series
GEOS(20)
Length (mm)
300(8)
400(8)
500(4)
Width (in)
11.8(16)
15.75(4)
Width (mm)
300(16)
400(4)
Depth (in)
7.10(8)
8.90(12)
Depth (mm)
180(8)
226(12)
Material
Polycarbonate(20)
IP Protection
IP67(20)
NEMA 4X
YES(20)
UL approval
YES(20)
Outdoor Use
YES(20)
