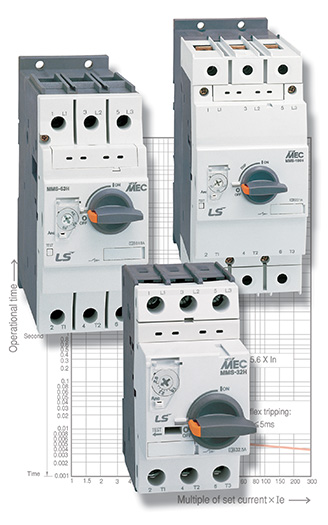

Manual Motor Starters

Standards and Certifications:

• UL508 (Manual Motor Controller)
• UL508 (Type E self-protected Manual Motor Controller)
• CSA C22.2 NO.14
• IEC 60947-2 & IEC 60947-4-2

Features:

• DIN Rail and Screw Mounting
• Lockable Handle in OFF position
• Finger safe terminals
• Class 10 thermal Overload protection
• Trip test feature • Phase failure protection
• Adjustable thermal release
• Type F combination Manual Motor Controller (with MC-Series Contactor)

Wide range of common accessories:

• Auxiliary Contacts
• Alarm Switch
• Undervoltage/ Shunt Release
• Rotary Handle
• Busbar
• MC-Series Mounting Adaptor

General Specifications

• Maximum Voltage: 600V AC
• Short Circuit Current Rating (SCCR): up to 65kA@480VAC
• Rated Frequency: 50/60Hz
• Max Operating Frequency: 25 operations/hour
• Operating Temperature: -20°C (-4°F) to +60°C (140°F)
• Storage Temperature: -50°C (-58°F) to +80°C (176°F)
• Degree of protection: IP20
• Resistance to Shock: 25g Resistance to Vibration: 5 - 150Hz
