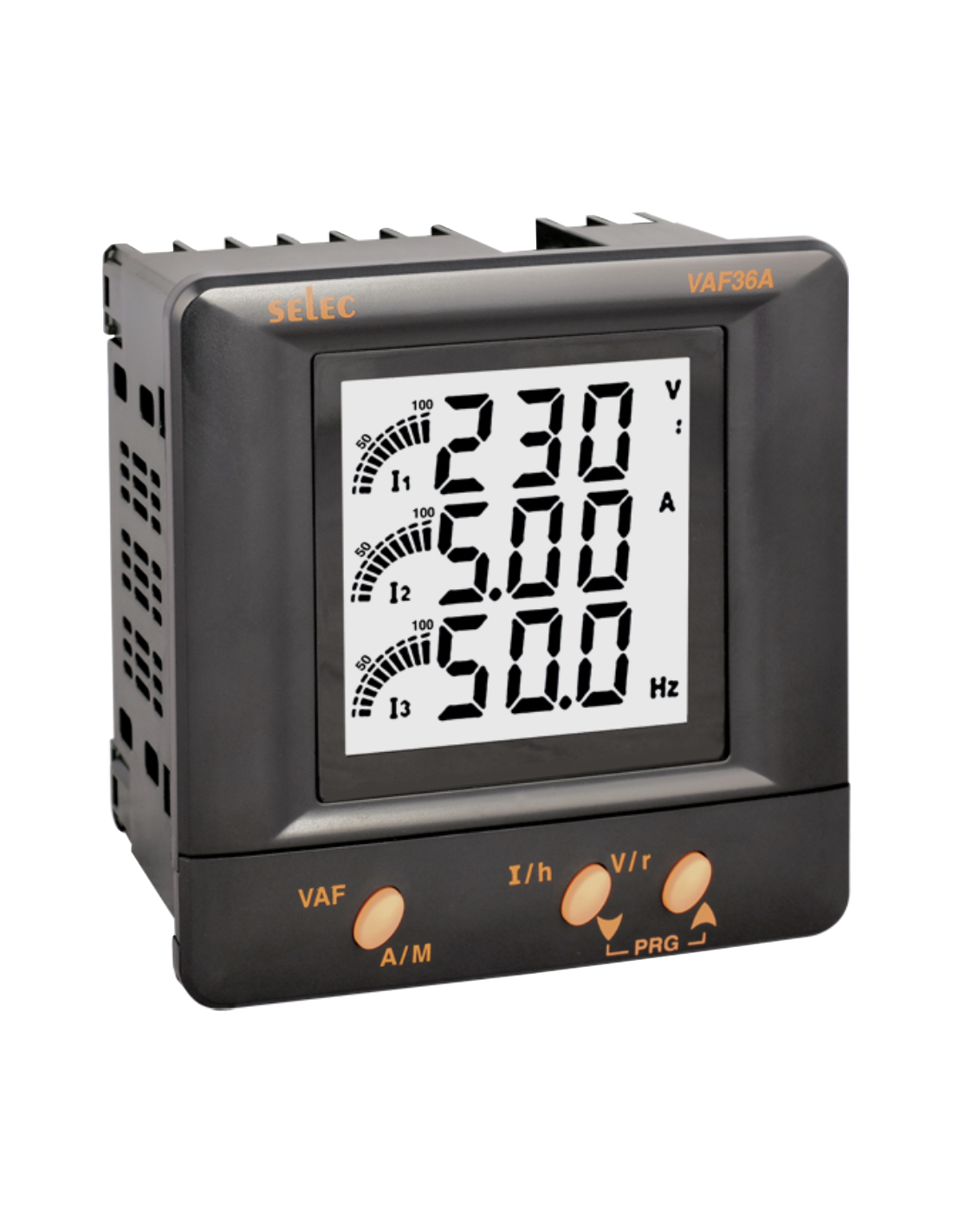

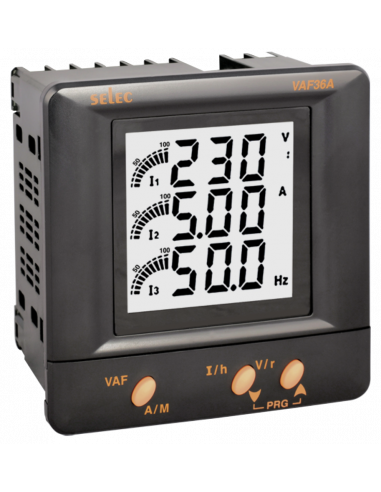

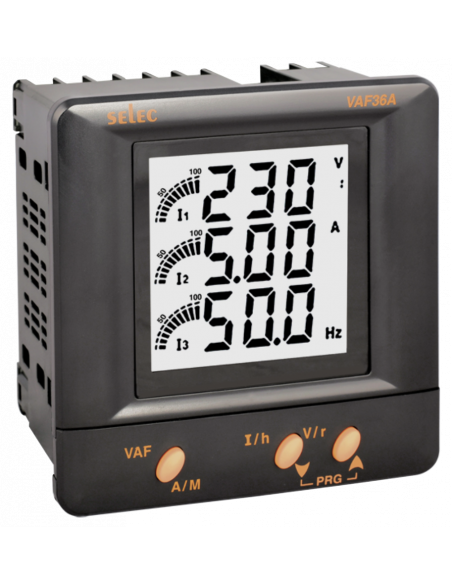

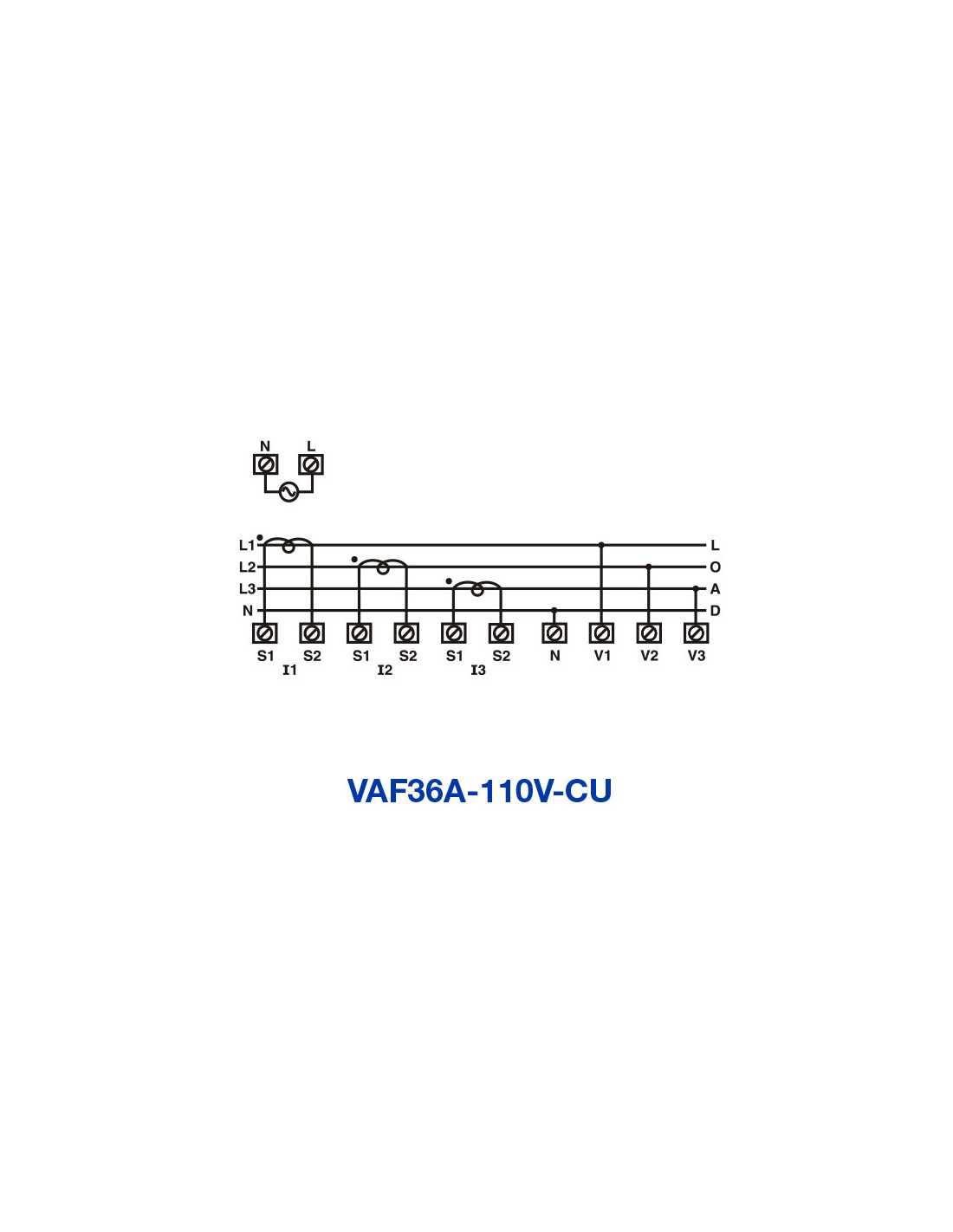

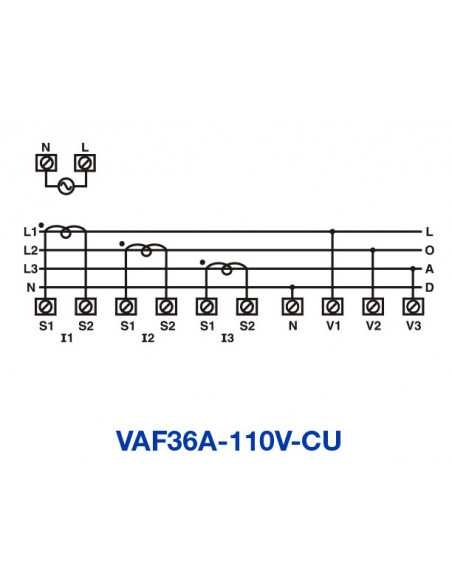

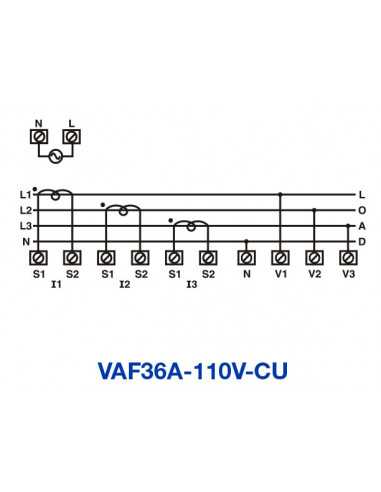

VAF36A-110V-CU, Volt-Ampere-Frequency Meters
VAF Series
Volt-Ampere-Frequency Meters
- 1 Phase & 3 Phase systems
- 11 to 300V AC (L-N), 19 to 519V AC (L-L) measurement
- Accuracy of ± 0.5% of voltage, ±1% of current, ±0.1Hz of frequency, ±0.5% for RPM & ±1% for run hour
- 3 rows 3 digits LCD display with back light
- Bargraph for current representation
- Panel mount
- Supply voltage of 230V AC ±20%, 110V AC ±20%
- CE, UL
Programmable CT Primary, PT Primary/Secondary
- Digital Display
- LCD Display with backlight
- Digits
- 3 rows of 3 digits
- Bargraph
- Bargraph for current percentage
- Display Scrolling
- Automatic/ Manual
- Supply Specification
- 110VAC +/- 20% (50/60Hz)
- Electrical Wire System
- 3 Phase (3/4 wires)
- Input Voltage Range
- 11 ~ 300 VAC (Phase to Neutral); 19 ~ 519 VAC (Phase to Phase)
- Input Current Range
- 20mA ~ 6A (External CT required for current greater 5A)
- Input Frequency
- 45 ~ 65Hz
- Parameter Resolution - Current
- 0.01, 0.1, 1A/KA
- Parameter Resolution - Voltage
- 0.1 V/KV
- Parameter Resolution - RPM
- 0.1
- Parameter Resolution - Run Hour
- 0.1 hr (0~99999.9 hr)
- Accuracy Class - Voltage (L-N, L-L), Current
- +/-0.5% of Full-Scale Value, +/- 2 digits
- Accuracy Class - Average Voltage (L-N, L-L), Current
- +/-0.5% of Full-Scale Value, +/- 2 digits
- Accuracy Class - Frequency
- 0.1 Hz
- Accuracy Class - RPM
- +/- 0.5%
- Accuracy Class - Run Hour
- +/-1%
- Pulse Output
- none
- Communication
- none
- CT Primary
- 5A ~ 10,000A (Progammable for any value)
- CT Secondary
- 1A/ 5A (External CT must be connected for current greater 5A)
- PT Primary
- 100V ~ 500 kV (any value)
- PT Secondary
- 100V ~ 500 VAC (any value)
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate
- Size (meters)

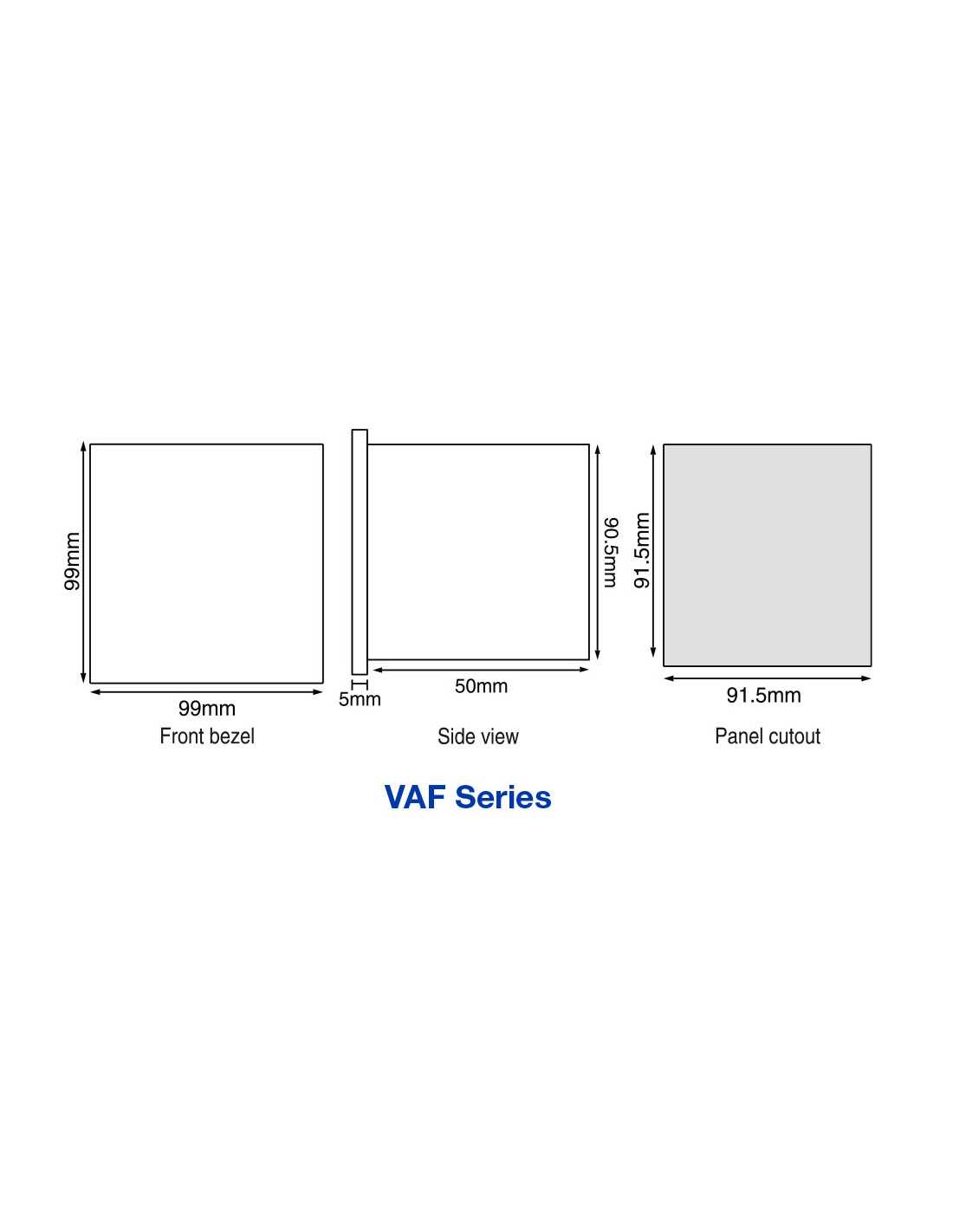

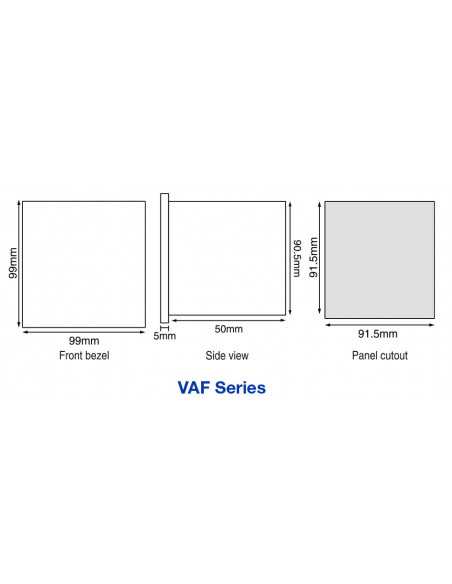

- 1/4 DIN, 96 mm x 96 mm
- Weight (meters)
- 0.79 lbs (357g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
