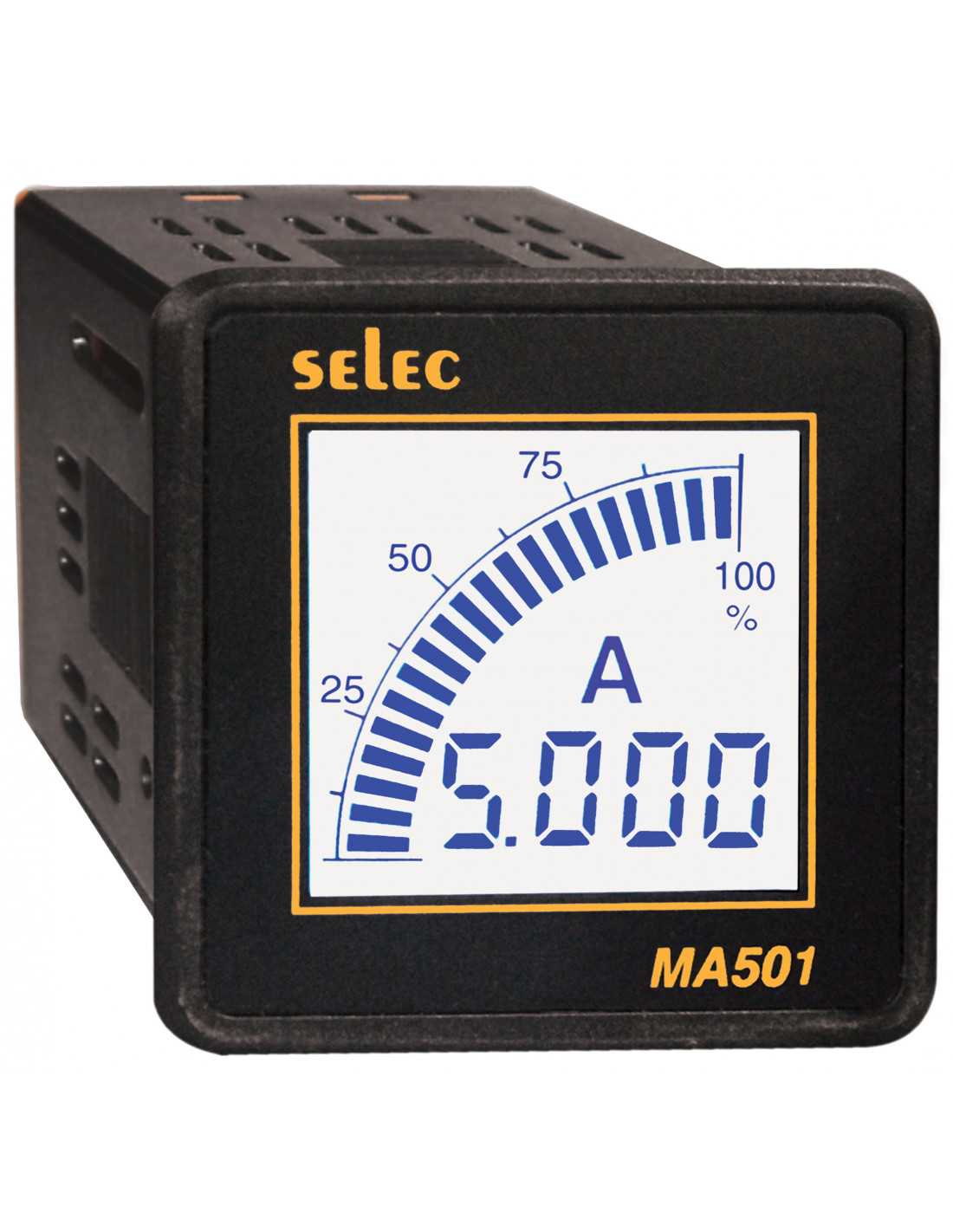

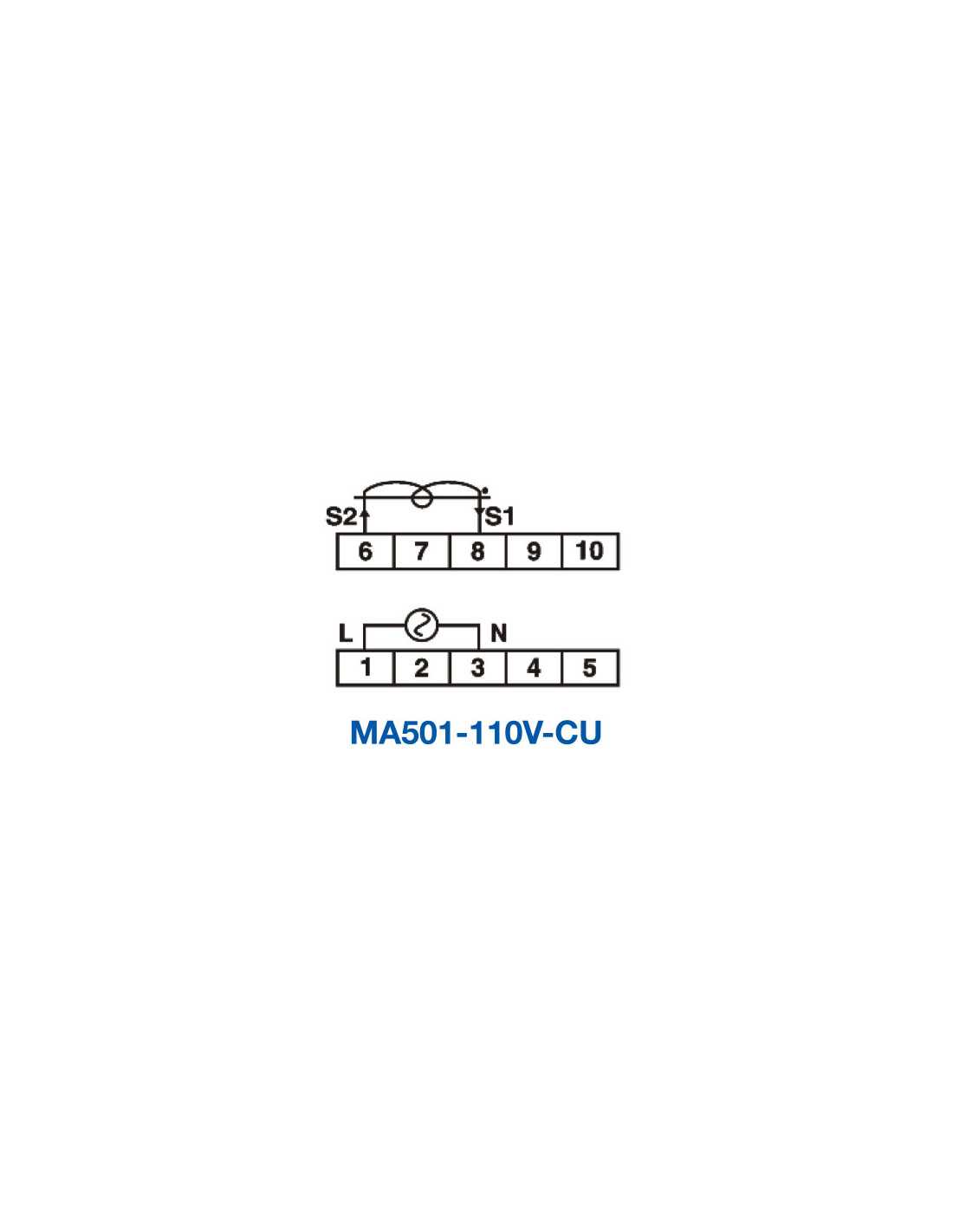

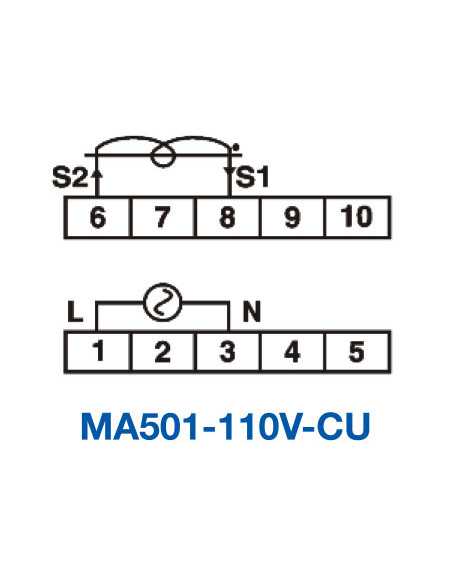

MA501-110V-CU, LCD Ampere Meters
MA Series
LCD Ampere Meters
- 1 phase 2 wire systems
- Accuracy of ± 0.5% of F.S
- 4 digit 7 segment LED display
- Panel mounted
- 110V AC ±20% (60Hz)
- CE, RoHS & UL
- Shunt size: 50mV (MA12 - 50MV) / 100mV (MA12-100mV)
- Integrated selector switch phase selection (MA2301)
- LCD Display with Backlight
- Bargraph Indicator
- Digital Display
- 7 Segment LED Display
- Digits
- 4 digits
- Bargraph
- Analog bargraph Indicator
- Display Range
- 0 ~ 6200A
- Display Scrolling
- none
- Supply Specification
- 110VAC +/- 20% (50/60Hz)

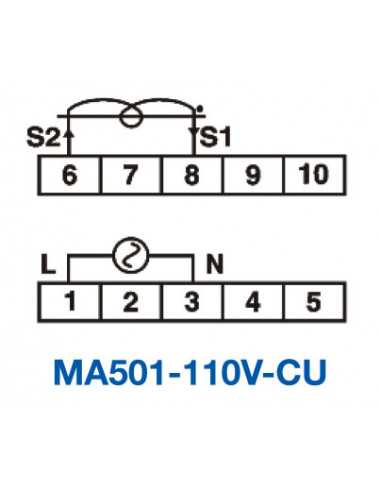

- Electrical Wire System
- 1 Phase (2 wire)
- Input Specification - Measurement Type
- AC, CT Type, External CT required for current greater 5A
- Input Current Range
- 50mA ~ 5A (External CT required for current greater 5A)
- Input Frequency Range
- 45 ~ 65 Hz
- Parameter Resolution - Current
- 0.001, 0.01, 0.1, 1A (depending on CT Primary)
- Parameter Resolution -Sample Rate
- 3 samples / sec
- Accuracy Class - Current
- +/-0.5% of Full-Scale Value
- Pulse Output
- none
- Communication
- none
- CT Primary
- 5, 10, 20, 30, 40, 50, 60, 75, 80. 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1500, 1600, 2000, 2500, 3000, 4000
- CT Secondary
- 5A fixed (External CT must be connected for current greater 5A)
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate

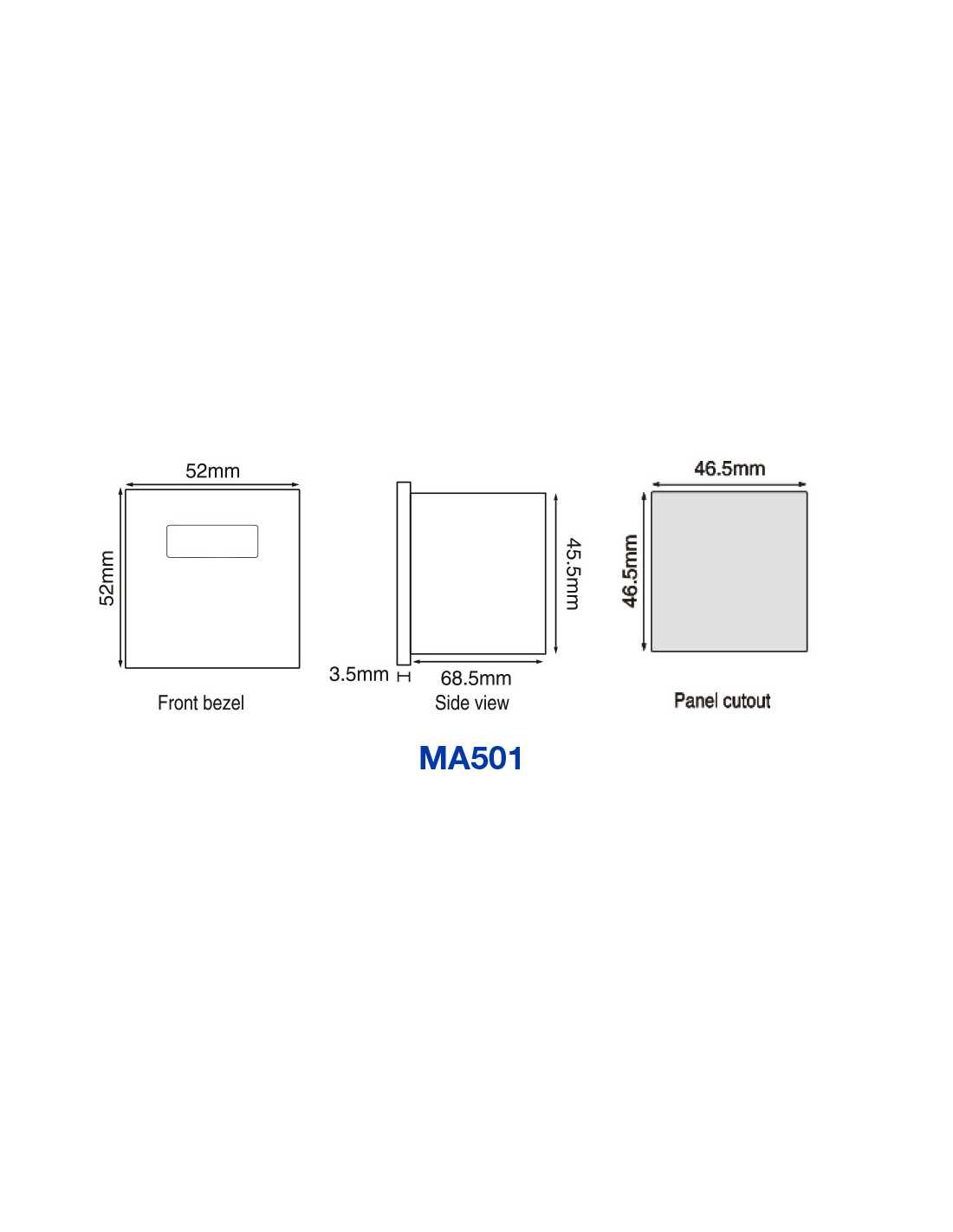

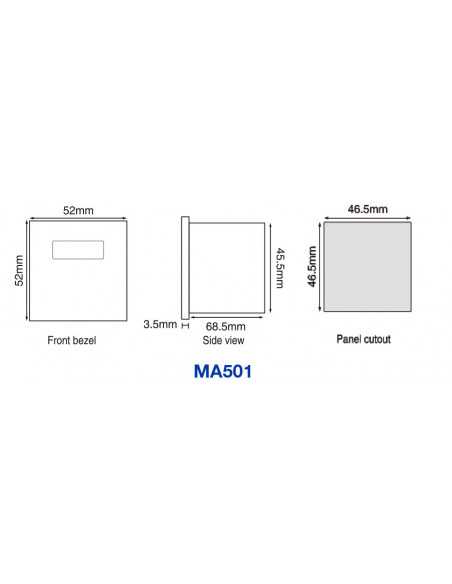

- Size (meters)
- 1/16 DIN, 48 mm x 48 mm
- Weight (meters)
- 0.25 (113g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
