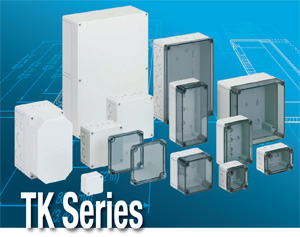

TK Series
Designed for tough industrial environments and a wide variety of applications, TK Enclosures are available with standard gray or tinted transparent covers in several heights. Sidewalls and endwalls are supplied smooth or with knockouts. Precision molded from impact and flame resistant materials, they offer functionality and appealing solutions for diverse application requirements.
- 16 different enclosures with up to 3 different cover heights
- IP66 (NEMA 4X)
- Polystyrene or Polycarbonate
- Gray or tinted transparent covers
- Smooth sidewalls or sidewalls with knockouts
- Four cover mounting screws
- Tongue and groove with polyurethane gasket (CFC free)
- Gasket inserted by robots
- HF - EMC models available
- Knockout mounting holes in enclosure base
- Screw fastening cover design requires six turns to lock
- Dust and moisture proof
- Non flammable and halogen free
| Drawing and Data Files (If files do not automatically open, save to disk and than open.) | ||||
| TK 55 – Polycarbonate – 50 x 52 mm (1.97 x 2.05 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK75 – Polycarbonate – 65 x 50 mm (2.56 x 1.97 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 77 – Polystyrene and Polycarbonate – 65 x 65 mm (2.56 x 2.56 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 97 – Polystyrene and Polycarbonate – 94 x 65 mm (3.70 x 2.56 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 99 – Polystyrene and Polycarbonate – 94 x 94 mm (3.70 x 3.70 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1111 – Polystyrene and Polycarbonate – 110 x 110 mm (4.33 x 4.33 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1309 – Polystyrene and Polycarbonate – 130 x 94 mm (5.12 x 3.70 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1313 – Polystyrene and Polycarbonate – 130 x 130 mm (5.12 x 5.12 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1809 – Polystyrene and Polycarbonate – 180 x 94 mm (7.09 x 3.70 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1811f – Polystyrene and Polycarbonate – 180 x 110 mm (7.09 x 4.33 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1811 – Polystyrene and Polycarbonate – 180 x 110 mm (7.09 x 4.33 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1813f – Polystyrene and Polycarbonate – 180 x 130 mm (7.09 x 5.12 in.) | ||||
| 3D STEP | DWG | – | Specification pages | |
| TK 1813 – Polystyrene and Polycarbonate – 180 x 130 mm (7.09 x 5.12 in.) | ||||
| 3D STEP | DWG | – | Specification pages | |
| TK 1818f – Polystyrene and Polycarbonate – 182 x 180 mm (7.17 x 7.09 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 1818 – Polystyrene and Polycarbonate – 182 x 180 mm (7.17 x 7.09 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 2518f – Polystyrene and Polycarbonate – 254 x 180 mm (10.0 x 7.09 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 2518 – Polystyrene and Polycarbonate – 254 x 180 mm (10.0 x 7.09 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
| TK 3625 – Polystyrene and Polycarbonate – 360 x 254 mm (14.2 x 10.0 in.) | ||||
| 3D STEP | DWG | 3D PDF | Specification pages | |
