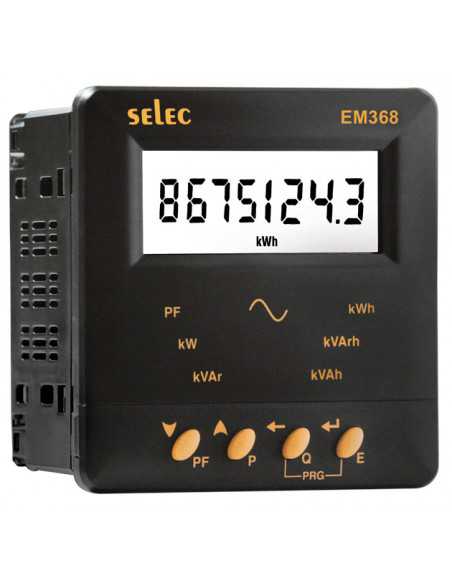

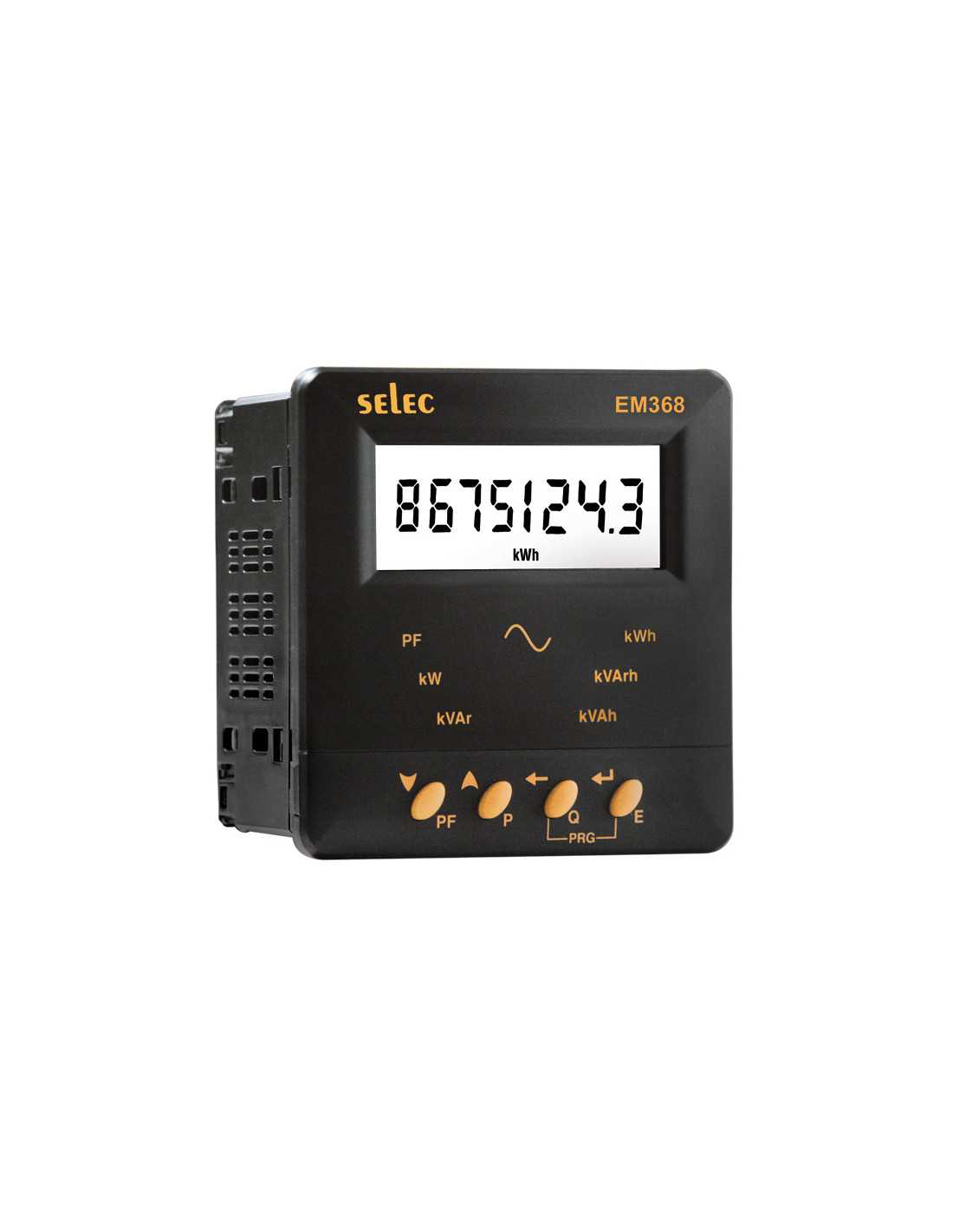

EM368-C-CU, Energy Meters
EM368-C-CU
EM Series
Energy Meters
- LCD Display with 1 row of 8 digits
- Pulse output, RS485 and Modbus RTU communication
- Accuracy of 1% digit for PF
- 1% for Power
- Class 1 for Active energy
- 1% for reactive/apparent energy
- LCD Display with 1 row of 8 digits
- Pulse output and RS485 Modbus communication
- CE, RoHS & UL
- Programmable CT/PT Primary/Secondary
- RS485 Modbus RTU Communication
- Single Pulse Output
- Digital Display
- LCD Display with backlight
- Digits
- 8 digits
- Bargraph
- none
- Display Scrolling
- Automatic
- Supply Specification
- 85 ~ 270 VAC (50/60Hz)

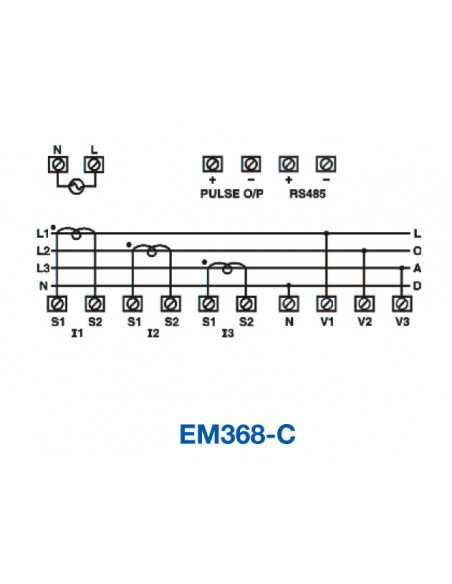

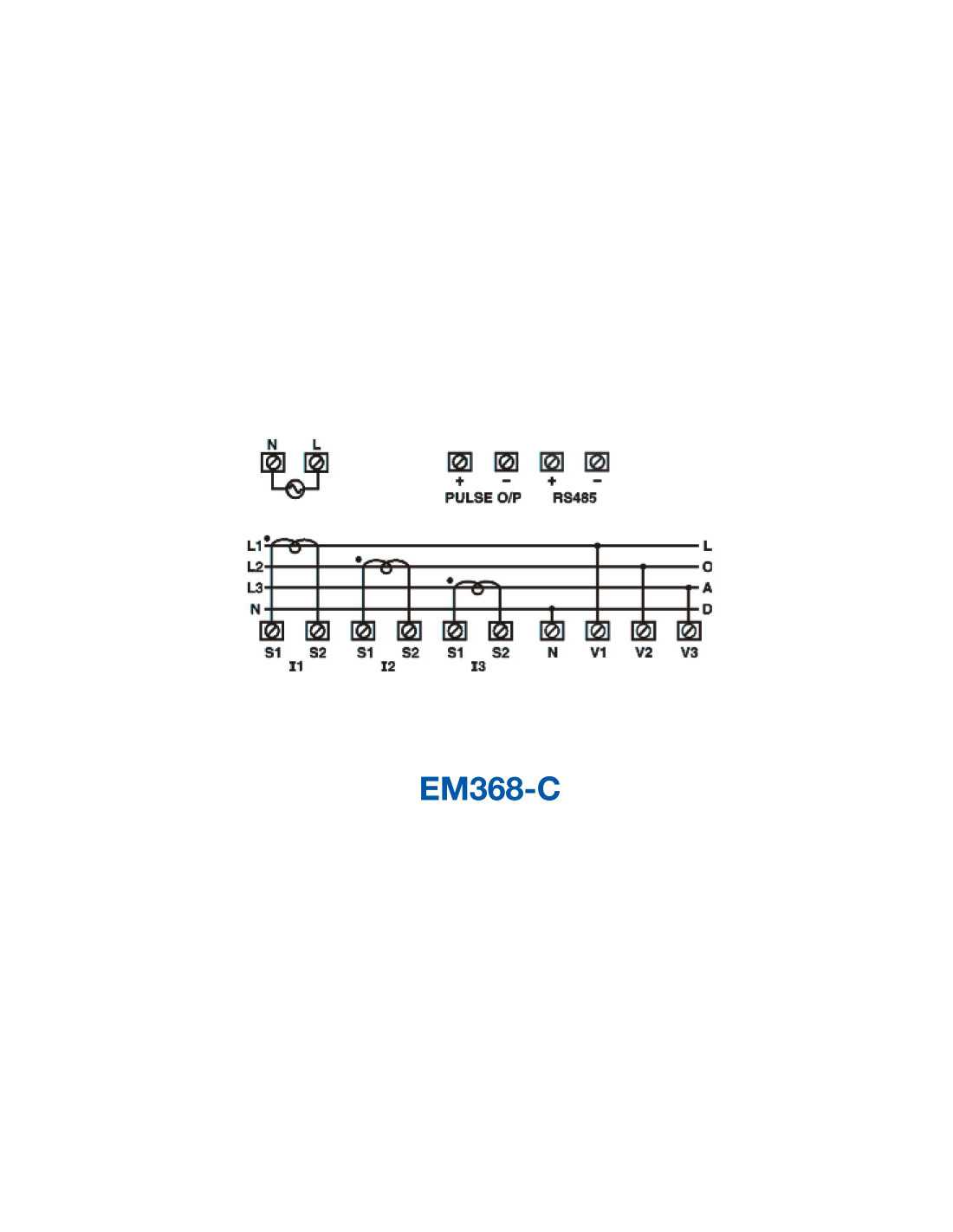

- Electrical Wire System
- 3 Phase (3/4 wires)
- Input Voltage Range
- 11 ~ 300 VAC (Phase to Neutral); 19 ~ 519 VAC (Phase to Phase)
- Input Current Range
- 10mA ~ 5A (External CT required for current greater 5A)
- Input Frequency
- 45 ~ 65Hz
- Parameter Resolution - Energy
- 0.01K, 0.1K, 1K, 0.01M, 0.1M, 1M
- Parameter Resolution - Power
- Auto resolution
- Parameter Resolution - Power Factor
- 0.01
- Accuracy Class - Power Factor
- +/-1%
- Active, Reactive, Apparent Power
- +/-1%
- Active, Reactive, Apparent Energy
- Class 1
- Pulse Output
- 1
- Pulse Voltage
- 24 VDC max.
- Pulse Current
- 100mA max.
- Pulse Duration
- 100ms +/-5ms
- Communication
- RS485 MODBUS Communication
- CT Primary
- 1A/ 5A ~ 10,000A (Programmable for any value)
- CT Secondary
- 1A/ 5A (External CT must be connected for current greater 5A)
- PT Primary
- 100V ~ 500 kV (any value)
- PT Secondary
- 100V ~ 500 VAC (any value)
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate

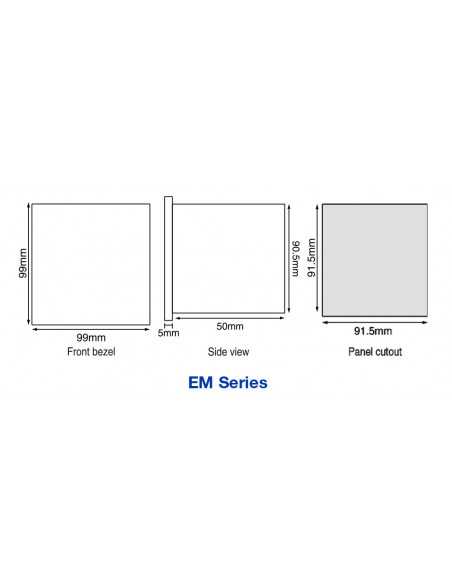

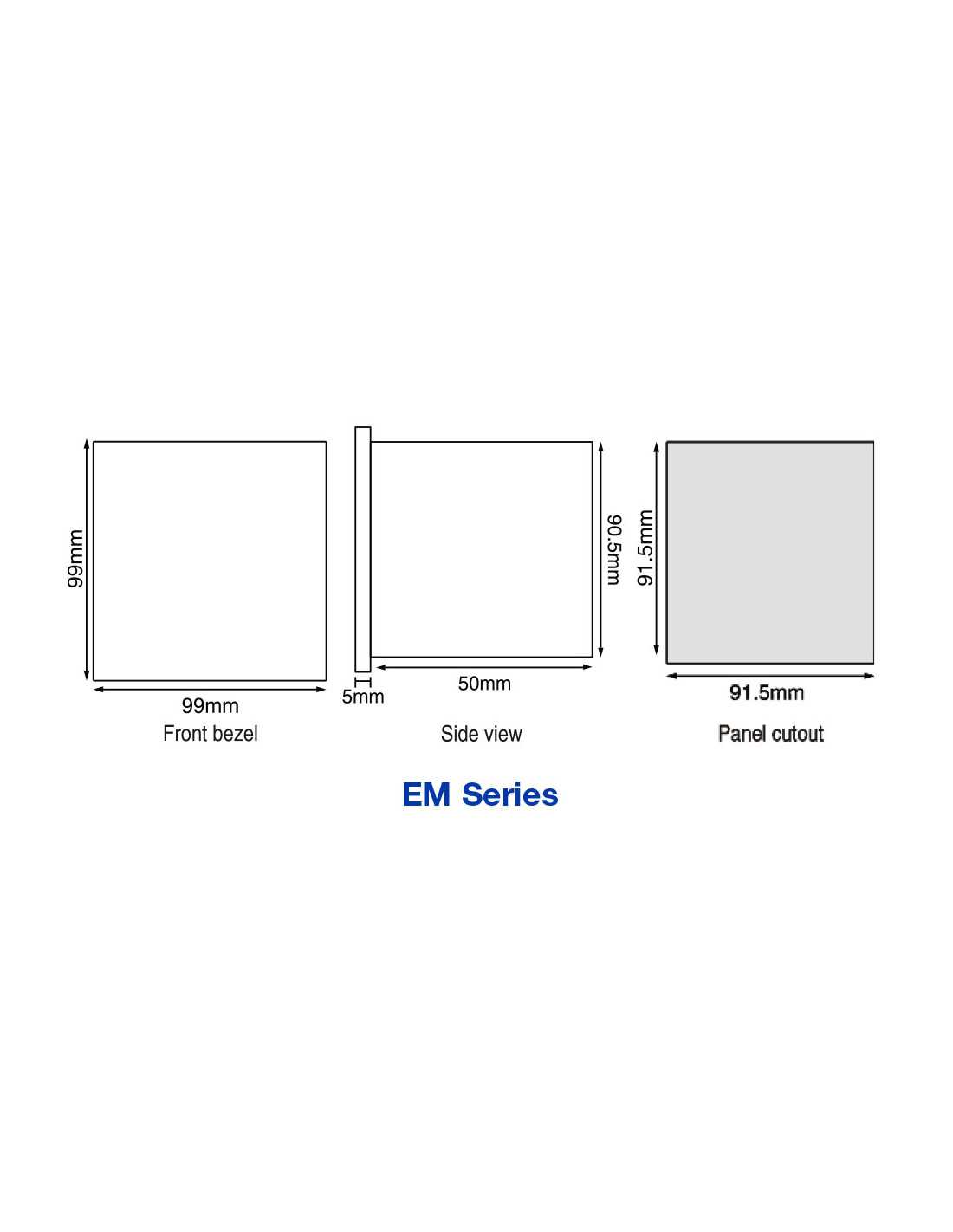

- Size (meters)
- 1/4 DIN, 96 mm x 96 mm
- Weight (meters)
- 0.69 lbs (312g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
EM368-C-CU
