Stud / Ring Lug Technology

FEATURES

  • Accepts Ring/ Fork Lug Cable Lugs
  • Withstands severe vibration
  • Reliable Gas-tight connection
  • For very large wire sizes (up to 350 kcmil)
  • High Torque values
  • Secure connection
  • Hinged cover featuring captive nut system
    guarantees quick and easy ring lug wiring

Click Here for Catalog

Ring Lug Barrier Terminal Blocks

CBS Series

  • Phillips Screw
  • 22-4 AWG
  • Up to 85A

Data Sheet

CSB Series

  • Slotted Hex Nut
  • 22-4 AWG
  • Up to 85A

Data Sheet

Ring Lug Stud Terminal Blocks

CSTSN Series

  • Hex Nut
  • 22-2 AWG
  • Up to 125A

Data Sheet

CSTSB Series

  • Slotted Hex Nut
  • 22-2 AWG
  • Up to 125A

Data Sheet

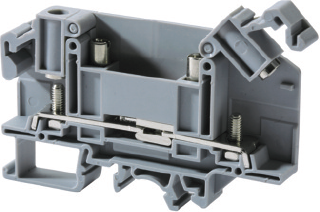

Ring Lug Hinge Terminal Blocks

Feed-Through

  • Captive Nut Built-In Hinge
  • Feed-Through Terminals
  • Disconnect Terminals
  • 22-2 AWG
  • Up to 115A

Data Sheet

Disconnect

Ring Lug Power Terminal Blocks

CBB Series
Nut/Bolt Connection

  • Threaded Current Bar
  • 10 AWG - 350 kcmil
  • up to 310A

Data Sheet

CBB Series
Threaded Current Bar

High Current Power Terminal Blocks

PTB Series

  • Captive Bolt System
  • 8-4/0 AWG
  • Up to 230A
  • Protective Cover
  • Stackable

Data Sheet

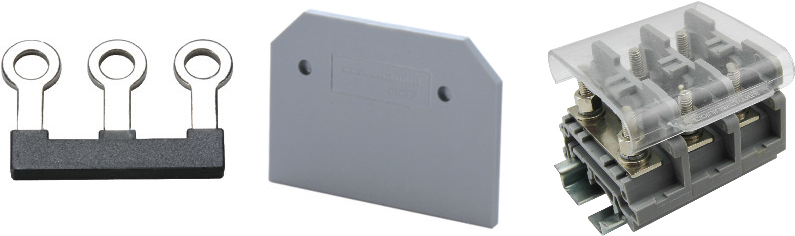

Accessories
