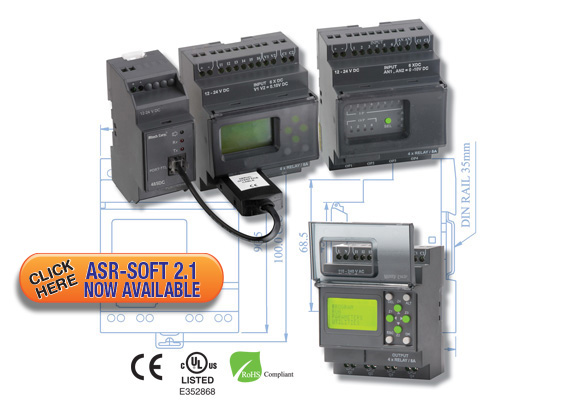

Smart Relays

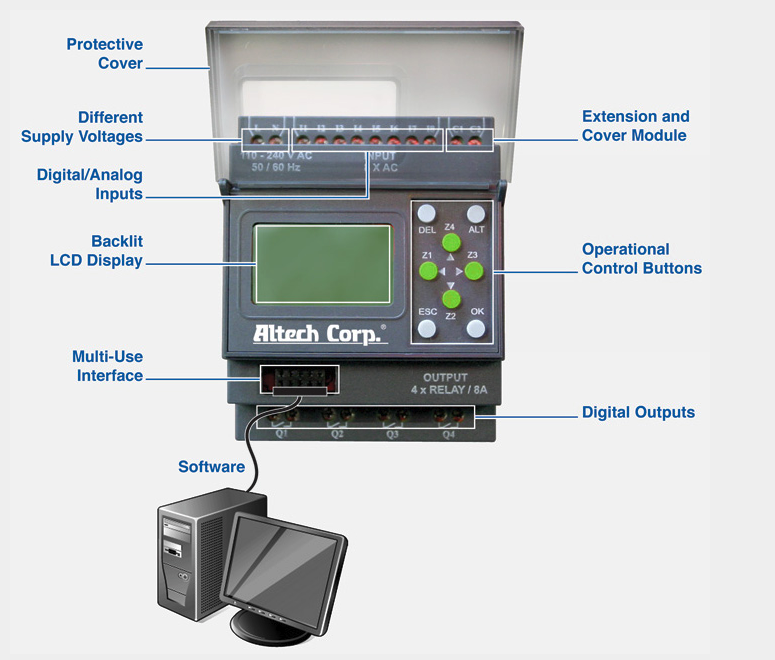

Features
- Supports upto 48 I/Os (32 digital inputs & 16 digital outputs)
- DST Feature Available
- Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device
- PC software for programming, online & offline simulation, documentation & printing
- Designed for use in automation for commercial & Industrial sectors
- Modbus Communication
Standards and Certifications:
- UL 508 (UL File No. E352868)
- IEC 61000-3-2
- IEC 61000-4-2-1~11
Programming Features:
- 250 lines of ladder programming
- 16 soft text messages, Time Switches, Compare Counters, Timers,
Counters & 12 analog functions
Function Blocks:
| Timers: | 16 (ON Delay, Interval, Cyclic ON-OFF, OFF Delay) |
| Counters: | 16 (Up/Down, Retentive selectable) |
| Time Switches: | 16 (Weekly / Daily) |
| Compare Counters: | 16 |
| Analog Functions: | 12 |
| Soft Text Messages: | 16 (Priority Driven) |
| Auxiliary Relays: | 32 |
.png)

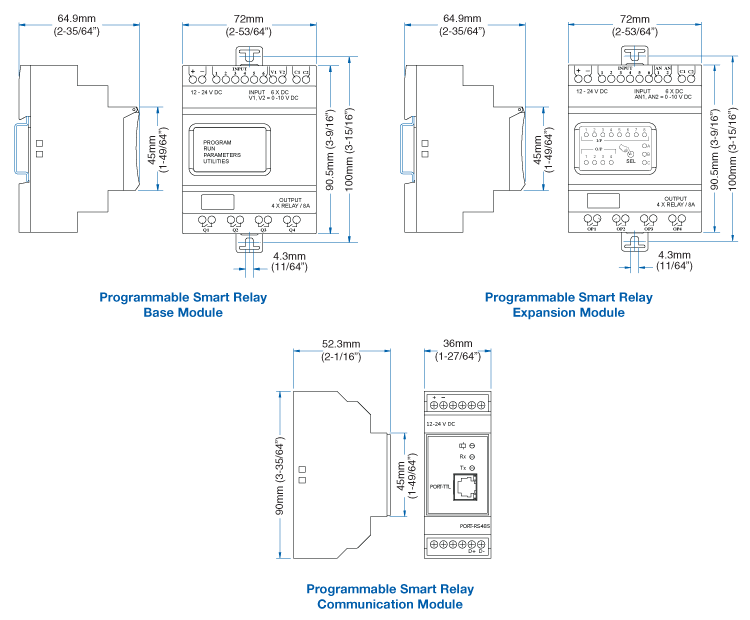

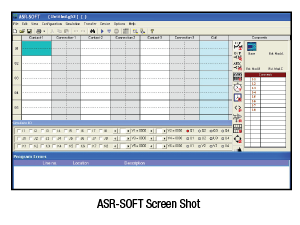

ASR-Soft software
Click here to download ASR-Soft (Ver 2.1)
and complete Instructional Manual (release 5.6.20)
(DATE CODE including 4815 and greater)
Software Instructions
Programming with ASR-Soft (including sample programs)
SYSTEM REQUIREMENTS:
Windows 2000, Windows XP, Windows Vista,
or Windows 7
Pentium II PC (200 MHz or higher)
256MB RAM
80MB free hard drive space
Screen Resolution 800 x 600 or better
Technical Information
Click here to download Support file
After download install on your computer.
For assistance Email Markus@altechcorp.com

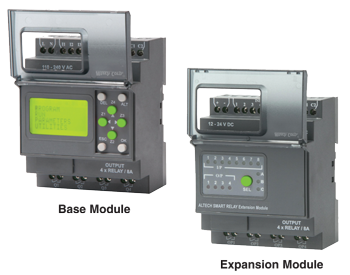

| Technical Specifications |  | ||
| I/O Extensions (Max.) | 3 | ||
| Utilization Category | |||
| AC-15 | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A | ||
| DC-13 | Rated Voltage (Ue): 24/125/250 V, Current (Ie): 2.0/0.22/0.1 A | ||
| Power Reserve (For Clock Only) | 150h at -10°C to +55°C | ||
| Operating Temperature | -10°C to +55°C | ||
| Storage Temperature | -25°C to +70°C | ||
| Humidity (Non Condensing) | 95% (Rh) | ||
| Enclosure | Flame Retardant UL 94-V0 | ||
| Mounting | Base / DIN Rail | ||
| Degree of Protection | IP 20 for Terminals, IP 40 for Enclosure | ||
| Base Module | |||
| Cat. No. | ASR-B120AC | ASR-B24DC | |
| Supply Voltage (-20% to + 10%) | 110-240 VAC (50/60Hz) | 12-24 VDC | |
| Power Consumption | 5W | 5W | |
| Max. Supply current | 36 mA | 360 mA | |
| Digital Input | 8 | 6 | |
| Digital Input Range | (0-40VAC) OFF,(80-265VAC) ON | (0-4VDC) OFF,(8-26.4VDC) ON | |
| Analog Input | N/A | 2 (can be used as Digital Inputs) | |
| Digital Relay Output | 4 NO (8A@240V AC, 5A@30V DC) | 4 NO (8A@240V AC, 5A@30V DC) | |
| Analog Input | N/A | 0 to 10 VDC | |
| Weight | 0.51 lb. (230 g) | 0.51 lb. (230 g) | |
| Expansion Module | |||
| Cat. No. | ASR-E120AC | ASR-E24DC | |
| Digital Input | 8 | 6 | |
| Digital Input Range | (0-40VAC) OFF,(80-265VAC) ON | (0-4VDC) OFF,(8-26.4VDC) ON | |
| Analog Input | N/A | 2 (can be used as Digital Inputs) | |
| Digital Relay Output | 4 NO (8A@240V AC, 5A@30V DC) | 4 NO (8A@240V AC, 5A@30V DC) | |
| Analog Input | N/A | 0 to 10 VDC | |
| Weight | 0.5 lb. (225 g) | 0.5 lb. (225 g) | |
| RS485 Communication Module | |||
| Input | TTL Level |   | |
| Output | RS-485 protocol (two wires, D+, D-) | ||
| Number of Nodes | 32 standard unit loads | ||
| Isolation Voltage | 2000 Vrms | ||
| Baud Rate | 300, 600, 1200, 2400, 4800, 9600 | ||
| Operating temperature | -10°C to +55°C | ||
| Storage temperature | -20°C to +70°C | ||
| LED Indicators | Red LED’s for Tx & Rx. Green LED for Power indication | ||
| Weight | 0.19 lb. (84 g) | ||
| Cat. No. | ASR-C485-120AC | ASR-C485-24DC | |
| Supply Voltage | 110-240 VAC | 12-24 VDC | |
| Weight | 0.18 lb. (80 g) | 0.19 lb. (84 g) | |
| Accessories |  |  |  |
| Cat. No. | ASR-MC | ASR-USB | ASR-RS232 |
| Memory Card | USB Cable | Serial RS232 Cable | |
| Weight | 0.18 lb. (80 g) | 0.22 lb. (100 g) | 0.24 lb. (110 g) |
