Connectors

An electrical connector is an electromechanical device used to join electrical conductors and create an electrical circuit.

M8 & M12 Molded Sensor & Actuator Cable Assemblies, Field-Wired Connectors or Panel Feed-Through Connectors.

click for Complete catalog

Molded Sensor & Actuator Cable Assemblies
Female Connector to Flying Lead Straight and Angled Connectors PVC & PUR Cable 3 and 4 pole Connectors 1, 2, 5, 10m standard cable length Custom cable length available
Field-Wired Connectors
Female/ Male Versions M8 and M12 versions Straight and Angled Connectors M8: 3, 4 pole M12: 4, 5, 8 pole Screw/ Solder Terminals A Coding
Panel Feed-Through Connectors
Female/ Male Versions M8 and M12 versions Front/ Rear Mount connectors M8: 3, 4 pole M12: 4, 5, 8, 12 pole Custom cable length A Coding

Assembly is simple and quick with the help of the multi-ramp locking system. Parts are delivered in a half unlocked stage to make initial assembly straightforward.

1. Match triangle icons for both housings in open position.
2. Twist counter-clockwise until locked as per above figure

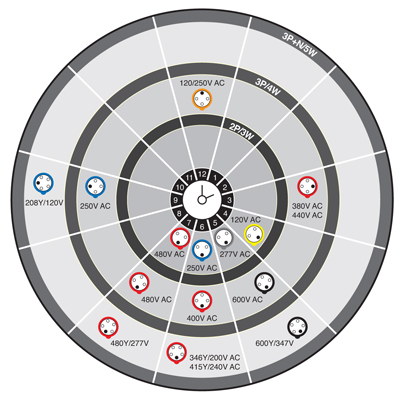

Voltage Configuration Chart

Color Coding and Ground Positions

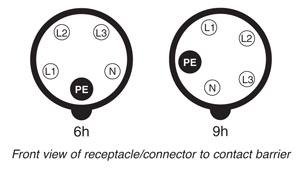

Pin and Sleeve devices are color coded to provide positive voltage and frequency matching and external key-ways ensure correct alignment of contact pins. The position of the ground pin relative to the socket's key-way are designated as a clock hour position.

The ground terminal also has a larger diameter than the contacts, making it impossible to install in an IEC 60309 device with a different voltage rating.
