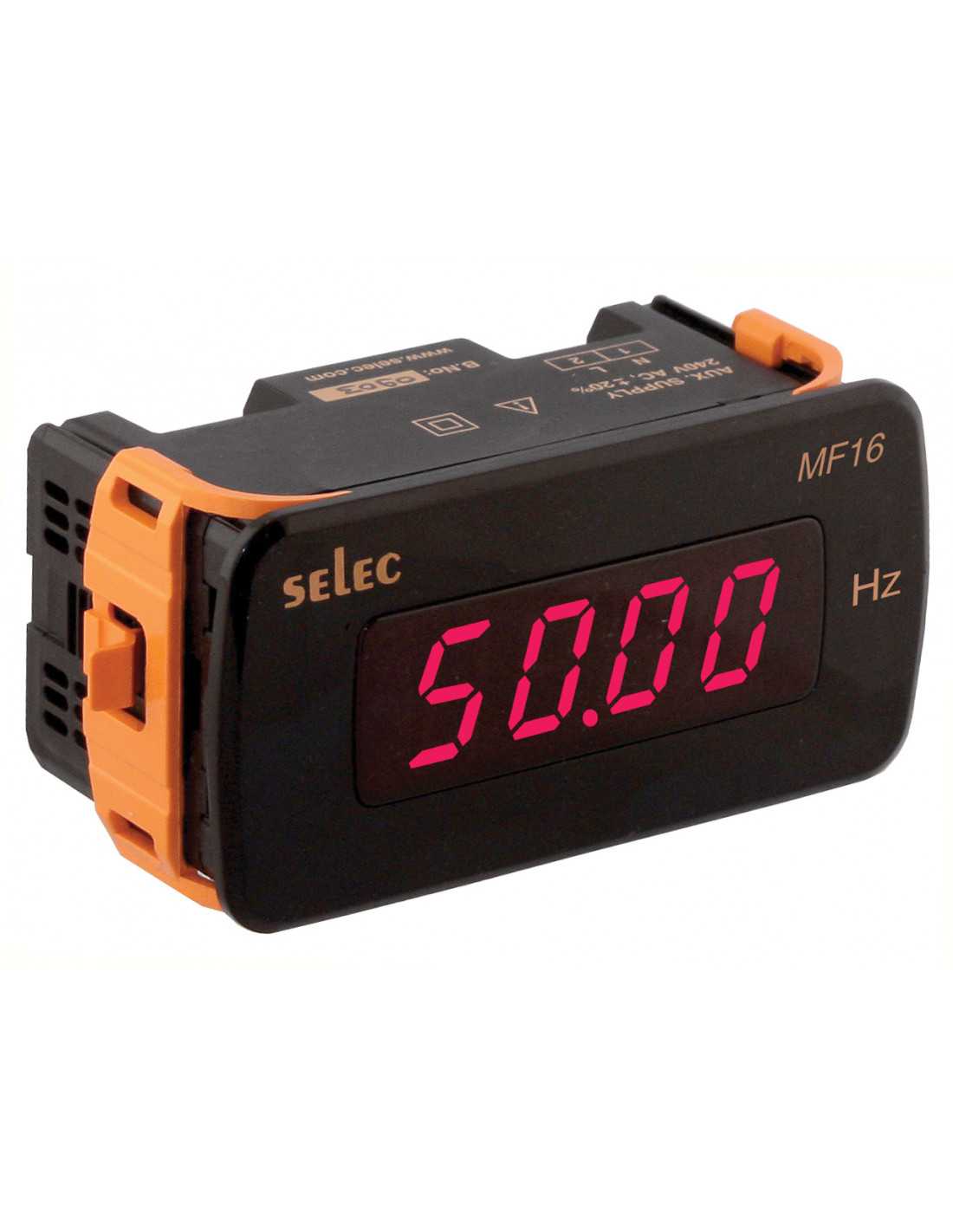

MF16-110V-CU, Frequency Meter
MF16 Series
Frequency Meter

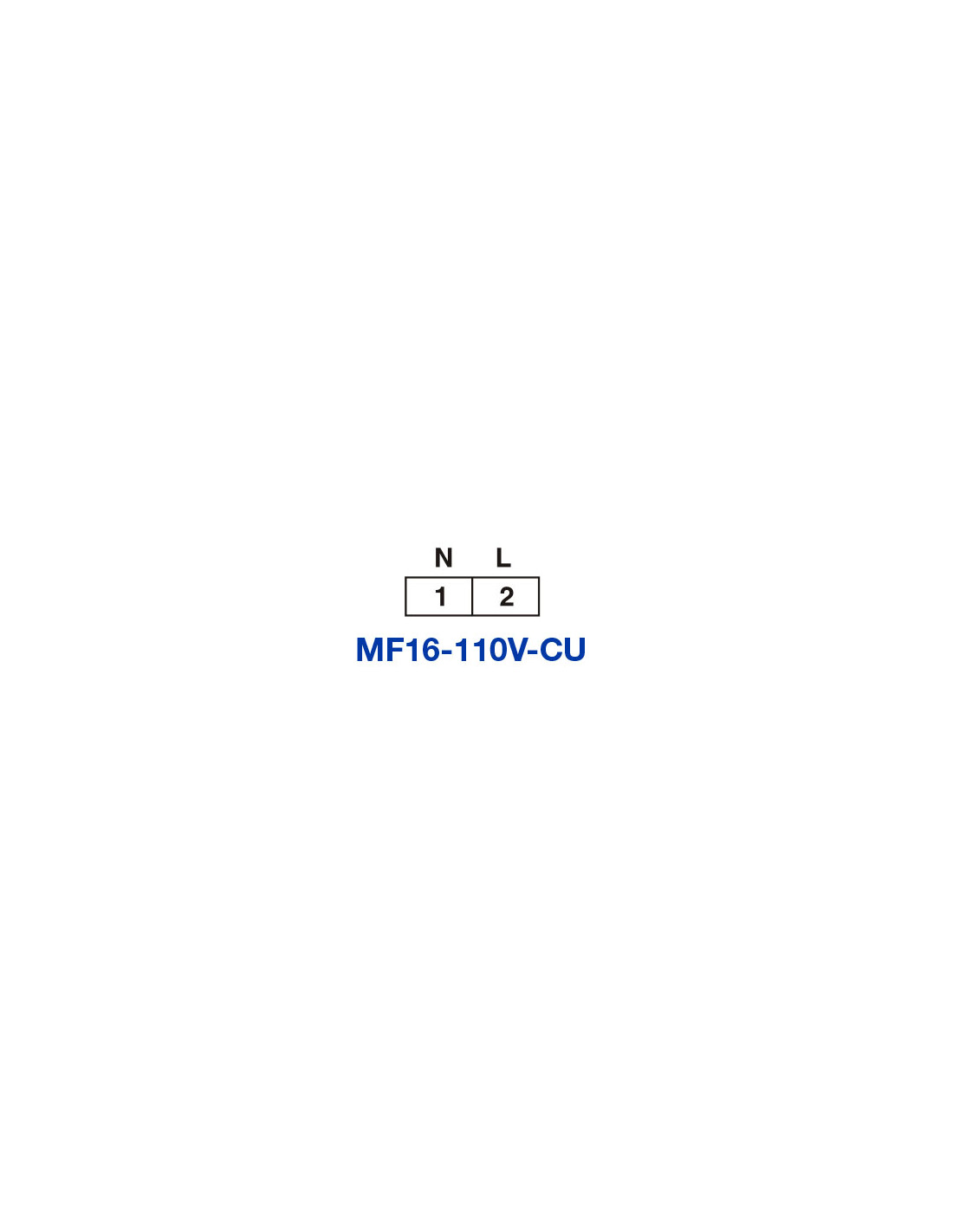

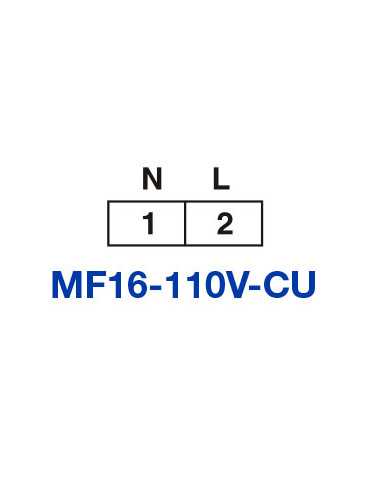

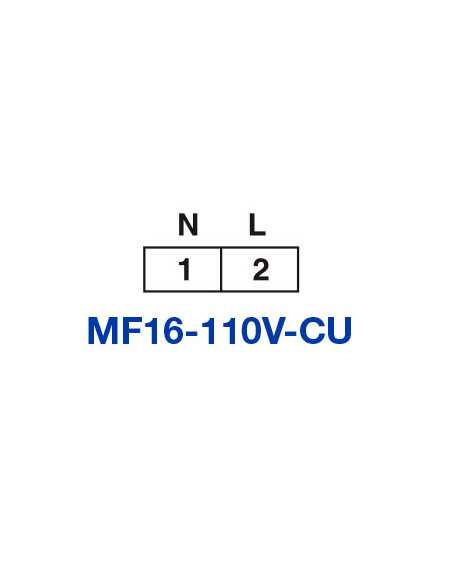

- Electrical Connection: 1 phase (2 wire).
- 45.00 ~ 65.00 Hz with accuracy of +- 0.05Hz.
- Supply Voltage: 110V AC ( ±20%)
- Frequency: 45 ~ 65 Hz.
- CE, RoHS & UL
4 Digit LED Display
- Digital Display
- 7 Segment LED Display
- Digits
- 4 digits
- Bargraph
- none
- Display Range
- 45.00 ~ 65.00 Hz
- Supply Specification
- 110VAC +/- 20% (50/60Hz)
- Electrical Wire System
- 1 Phase (2 wire)
- Input Current Range
- none
- Input Frequency Range
- 45 ~ 65 Hz
- Parameter Resolution - Frequency
- 0.01 Hz
- Parameter Resolution - Power Factor
- none
- Accuracy Class - Frequency
- +/- 0.05Hz
- Accuracy Class - Power Factor
- none
- Pulse Output
- none
- Communication
- none
- Programmable Parameters
- none
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate

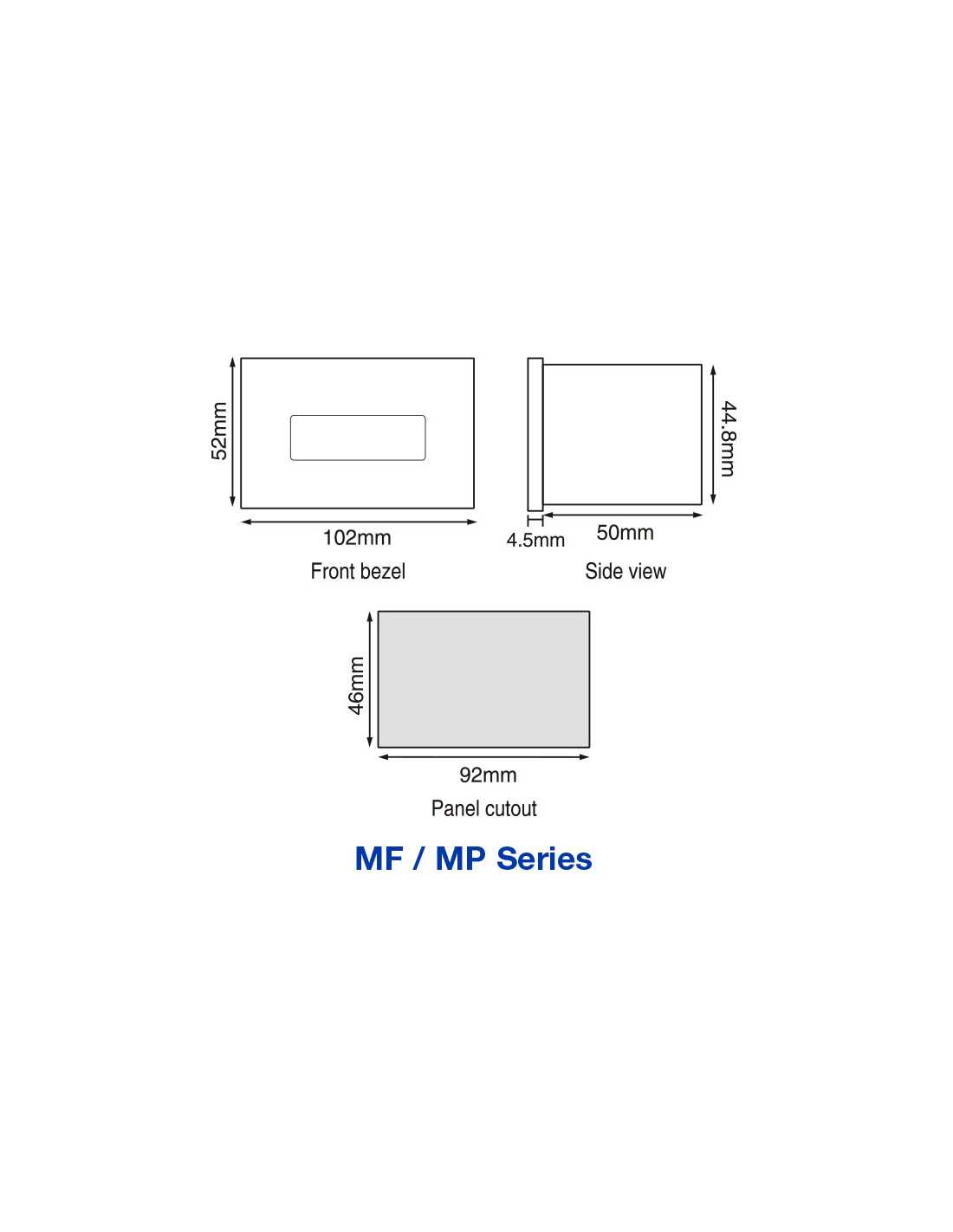

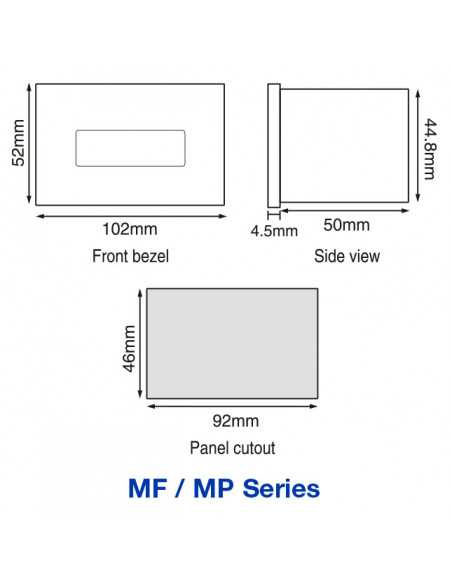

- Size (meters)
- 1/8 DIN, 48 mm x 96 mm
- Weight (meters)
- 0.37 lbs (170g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
