Monitoring Relays

Altech Monitoring Relays ensure reliable voltage, current, and phase monitoring—DIN rail-mounted, multifunction, and ideal for industrial protection and control.

monitoring relay table

Altech Monitoring Relays ensure reliable voltage, current, and phase monitoring—DIN rail-mounted, multifunction, and ideal for industrial protection and control.

A Monitoring Relay is a protective control device. The basic functions include receiving input signals, monitoring and determining them, and outputting an alarm signal if a set value (threshold) is reached.

AMR-ES3M480V5A2M

AMR-AI1M5A2D

AMR-AI3M5A2D

AMR-AP1M300V2D

Alsense Energy Monitor

Features

  • 1- and 3-Phase Universal Energy Meter
  • Up to 277 VAC (L - N)/ 480VAC (L - L)
  • Usage with external CT
  • 1 x digital Input
  • 2 x digital Outputs
  • Measured Values provided via Modbus RTU/ RS485

Functions

  • Line to neutral voltage measurement
  • Current measurement
  • Reactive power measurement
  • Active power measurement
  • Reactive energy
  • Active energy
  • Power factor measurement
  • Line to line voltage measurements

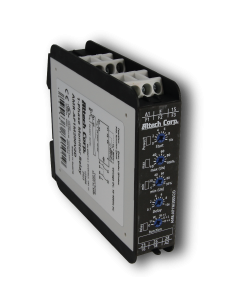

Current Monitoring Relay

Features

  • Current Monitoring 1-Phase
  • 20mA, 1A, 5A
  • AC/ DC (16.6-400Hz)
  • 2 x DPDT Outputs
  • 22.5mm Wide Industrual Design

Functions

  • Overcurrent monitoring
  • Overcurrent monitoring + latch
  • Undercurrent monitoring
  • Undercurrent monitoring + latch
  • Window function
  • Window function + latch

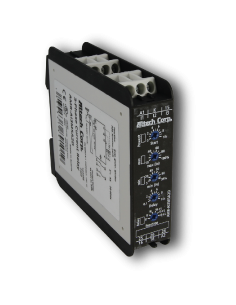

Current Monitoring Relay

Features

  • Current Monitoring 3-Phase
  • 5A
  • AC (16.6-400Hz)
  • 2 x DPDT Outputs
  • 22.5mm Wide Industrual Design

Functions

  • Overcurrent monitoring
  • Overcurrent monitoring + latch
  • Undercurrent monitoring
  • Undercurrent monitoring + latch
  • Window function
  • Window function + latch

Voltage Monitoring Relay

Features

  • Voltage Monitoring 1-Phase
  • 30V, 60V, 300V AC/DC
  • Measure 1.5V - 300V
  • 2 x DPDT Output
  • 22.5mm Wide Industrual Design

Functions

  • Overvoltage monitoring
  • Overvoltage monitoring + latch
  • Undervoltage monitoring
  • Undervoltage monitoring + latch
  • Window function
  • Window function + latch

Click for PDF catalog file.

Click for PDF catalog file.

Click for PDF catalog file.

Click for PDF catalog file.

AMR-AP3U690V2D

AMR-EP1F480277V1D

AMR-EP1M230V1

PRSV600-2

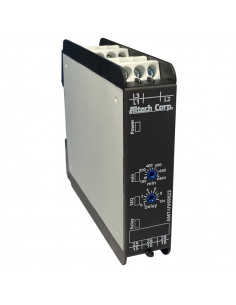

Voltage Monitoring Relay

Features

  • Undervoltage Monitoring 3-Phase
  • Phase Sequence and Phase Failure
  • Supply Voltage = Measuring Voltage
  • 22.5mm Wide Industrial Design

Functions

  • Undervoltage Monitoring
  • Phase Sequence Monitoring
  • Phase Failure Monitoring

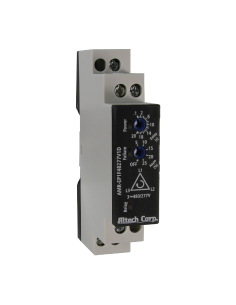

Voltage Monitoring Relay

Features

  • Voltage Monitoring 3-Phase
  • 208V/120V to 480V/277V
  • Multi Function
  • 1 x DPDT Output
  • 17.5mm Wide Compact Design

Functions

  • Phase Failure
  • Phase Sequence
  • Phase Assymmetry (adjustable)
  • Tripping Delay

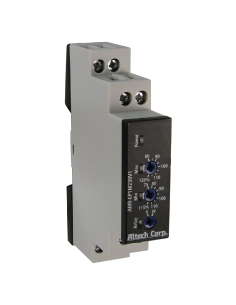

Voltage Monitoring Relay

Features

  • Voltage Monitoring 1-Phase
  • 24 VAC, 24 VDC, 230 VAC
  • Multi Function
  • 1 x DPDT Output
  • 17.5mm Wide Compact Design

Functions

  • Undervoltage Monitoring
  • Phase Sequence Monitoring



Voltage Monitoring Relay

Features

  • Voltage Monitoring 3-Phase/ 3 Wire, 3-Phase/ 4 Wire
  • True RMS Measurement
  • Power ON Delay, Trip Delay, Recovery Delay
  • 2 Independent Relays (Protection or Alarm)
  • Compact DIN Rail Design

Functions

  • Under/ Over Voltage Monitoring
  • Under/ Over Frequency Monitoring
  • Phase Asymmetry
  • Phase Sequence Monitoring
  • Phase Failure Monitoring



Click for PDF catalog file.

Click for PDF catalog file.

Click for PDF catalog file.

Click for PDF catalog file.

Monitoring Relays

    CFTD2 - Fan Monitoring & Control Device with Temperature

    CFTD2
    FeaturesCompact and standard DIN Mounting Individual fans can be programmed Autosensing/Manual Sensing saves calibration time. LED Indication for FAN OK, FAN FAIL, FUSE FAIL & amp; FAN TRIP SET Potential free contact for Fan/Temp Failure Display for Temperature Display and program 3-Wire RTD Interface Click for Data Sheet< Product...
    View
    Monitoring Relays

      CFTD4 - Fan Monitoring & Control Device with Temperature

      CFTD4
      FeaturesAutomatic Fan calibration Manual programming of Individual Fans Fan Overload, Fault Identification Fan Redundancy Various fan modes 3-Wire RTD Interface along with device Live temperature display Click for Data Sheet< Product photo imprint will vary depending on part number selection.
      View
      Monitoring Relays Monitoring Relays 2

        Universal Monitor DO-1 for Modbus

        DO-1
        Simple Monitoring Device for your business. No Subscription • No License Click for datasheet. Click for PDF catalog file. Click here for full Manual.DO-1 Detail InformationComponent DescriptionLED ETH Lights up green when the connection to the Ethernet network is establishedLED BUS Flashes green in time with the bus...
        View
        Monitoring Relays

          CFTDPR4 - Fan Monitoring & Control Device with Temperature

          CFTDPR4
          FeaturesAutomatic Fan calibration Manual programming of Individual Fans Fan Overload, Fault Identification Fan Redundancy Various fan modes 3-Wire RTD Interface along with device Live temperature display 4 - 20 mA analog temperature feedback Click for Data Sheet< Product photo imprint will vary depending on part number selection.
          View
          Monitoring Relays Monitoring Relays 2

            Universal Monitor DO-1-DR for Modbus

            DO-1-DR
            Simple Monitoring Device for your business. No Subscription • No License Click for datasheet. Click for PDF catalog file. Click here for full Manual. DO-1-DR with DIN Rail Mount - Detail InformationComponent Description LED ETH Lights up green when the connection to the Ethernet network is established LED BUS Flashes green in time with the bus cycle...
            View
            Monitoring Relays Monitoring Relays 2

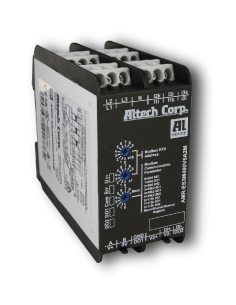

              Alsense Energy Monitor, AMR-ES3M480V5A2M

              AMR-ES3M480V5A2M
              Part No. AMR-ES3M480V5A2M1- and 3-Phase Universal Energy Meter Up to 277 VAC (L - N)/ 480VAC (L - L) Usage with external CT 1 x digital Input 2 x digital Outputs Measured Values provided via Modbus RTU/ RS485DATA SHEET
              View
              Monitoring Relays

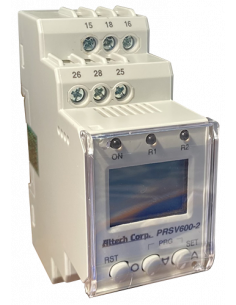

                Voltage Monitoring Relay, PRSV600-2

                PRSV600-2
                Part No. PRSV600-2Voltage Monitoring 3-Phase/ 3 Wire, 3-Phase/ 4 Wire True RMS Measurement Power ON Delay, Trip Delay, Recovery Delay 2 Independent Relays (Protection or Alarm) Compact DIN Rail DesignDATA SHEET
                View
