Cable Glands / Cord Grips
Seal out moisture and contaminants that can damage equipment and devices and provide protection against environmental influences. Ensure that cables stay securely in place, reduce stress on termination points and more. Altech "Cord Grips" meet all national and international standards for performance and safety and are offered in combinations of different body materials and sealing inserts to meet almost any application requirement. Choose from our Standard or Industrial Series.
Our 52-page catalog introduces Altech’s full line Liquid Tight Strain Reliefs (cord grips or cable glands) which are used to seal cable entries, keep contaminants from entering enclosures, provide strain relief and thus reduce stress on components and termination points inside enclosures. Functions include Straight-Through, Increased Strain Relief, Bend Protection, Pull/Bend Protection, Multi-conductor, Flat Cable and EMI/RFI. They can be used with almost any type of cable, cord or conductor - solid, stranded, flat, shielded, high temperature, etc.
Click here for the entire catalog
OR click below for specific sections.
- Standard Straight-Through
“Suitable for most applications, these are our most common parts.”
Plastic Standard Straight-Through Sets
Cable Gland, Polyamide
Material:
Polyamide 6
Seal: Neoprene
Technical properties:
Maximum strain relief through clamping range
IP68 achieved without seal rings (PG and metric only)
Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
Gas- and watertight
Applications:
Machine and devices

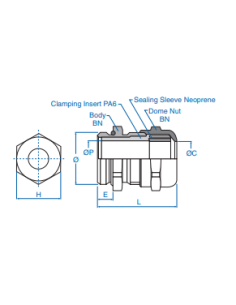

Cable Gland, Nickel-Plated Brass
Material:
Body: Nickel-plated brass
Seal: Neoprene
Clamping insert: Polyamide 6
Sealing ring for outer thread: Nitril
Technical properties:
Seal rings included for PG and Metric sizes
Maximum strain relief through clamp range
Gas-- and watertight
Applications:
Machine and devices
Cable Gland, Nickel-Plated Brass
Material:
Body: Nickel-plated brass
Seal: Neoprene
Clamping insert: Polyamide 6
Sealing ring for outer thread: Nitril
Technical properties:
Seal rings included for PG and Metric sizes
Maximum strain relief through clamp range
Gas-- and watertight
Applications:
Machine and devices

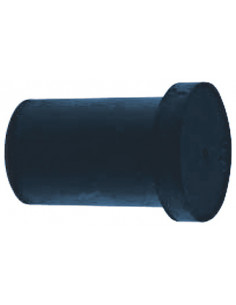

Flat Head and Multi-Conductor Sealing
Material:
EPDM, black
Technical properties:
For sealing cable gland entries when cables are not being installed.
Insert into cable gland and tighten gland to seal.
Applications:
Machine and devices
Cable Gland Industrial, Polyamide
Material:
Body: Polyamide PA 6
25 % Glass-fiber Reinforced
Seal: Tefabloc ECA clamping ring: Polycarbonate
Characteristics:
PG/metric thread
ECA clamping ring
Extended thread available
Technical properties:
Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Applications:
Machines and devices
Measuring and control engineering
Plant installations
Cable Gland Industrial, Flat Seal, Polyamide
Material:
Body: Polyamide PA 6
25 % Glass-fiber Reinforced
Seal: Tefabloc
Characteristics:
PG/metric thread
Seal for flat cable round, angular, oval
Technical properties:
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Applications:
Machines and devices
Measuring and control engineerin
Plant installations
Cable Gland Industrial, Multi-conductor Seal, Polyamide
Material:
Body: Polyamide PA 6
25 % Glass-fiber Reinforced
Seal: Tefabloc
Characteristics:
PG/metric thread
Multi-holed seal inserts
Technical properties:
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Applications:
Machines and devices
Measuring and control engineering
Plant installations
Cable Gland Industrial, Multi-conductor Seal, Polyamide, Metric Thread
Material:
Body: polyamide PA 6
25% Glass-fiber Reinforced
Seal: Tefabloc
Characteristics:
Metric Thread
Multi-holed seal inserts
Technical properties:
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Applications:
Machines and devices
Measuring and control engineering
Plant installations
Cable Gland Industrial, PVDF
Material:
Body: Polyvinylidefluoride
Seal: Santoprene
ECA clamping ring: Polycarbonate
Characteristics:
Metric thread
ECA clamping ring
Short and long seal
Technical properties:
No halogen
Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Chemical resistant
Applications:
Machines and devices
Measuring and control engineering
Plant installations
Food sector
Cable Gland Industrial, Nickel-Plated Brass
Material:
Body: Nickel-plated brass
Seal: Tefabloc or Santoprene/Nitril
ECA clamping ring: Polycarbonate
Sealing ring for outer thread: Nitril
Characteristics:
PG/Metric thread
Extended Thread available
Technical properties:
Strain relief through clamping ring
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Applications:
Machines and devices
Measuring and control engineering
Plant installations
Cable Gland Industrial, Flat Seal, Nickel-Plated Brass
Material:
Body: Nickel-Plated Brass
Seal: Tefabloc
Sealing ring for outer thread: Nitril
Characteristics:
PG/metric thread
Seal for flat cable round, angular, oval
Extended thread available
Technical properties:
Gas- and watertight
Completely twist protected
Combinable with various sealing inserts
Applications:
Machines and devices
Measuring and control engineering
Plant installations
Corrugated Tubes
Protect your cables with corrugated tubes. Made from flame retardant Polyamide 6, these tubes will protect cables from impact and abrasion. They are highly flexible and have a high fatigue life, making them ideal for any installation. 15 sizes are available in standard tube or with a lateral slit. Add straight or 90° connectors with seals to complete the installation. Click here to see the full line. |
Filters
Filter by (see results below):
Body Material
Body Material
Thread Type
Thread Type
Seal Material
Seal Material
Min Cable Diameter (mm)
Min Cable Diameter (mm)
Max Cable Diameter (mm)
Max Cable Diameter (mm)
Liquid Tight Strain Reliefs
PG9 4-9.5 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid Tight Strain Reliefs
PG11 6-11.5 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid Tight Strain Reliefs
PG13.5 4-10 Cable Gland Standard Straight-Through Nickel Plated Brass
Liquid Tight Strain Reliefs
