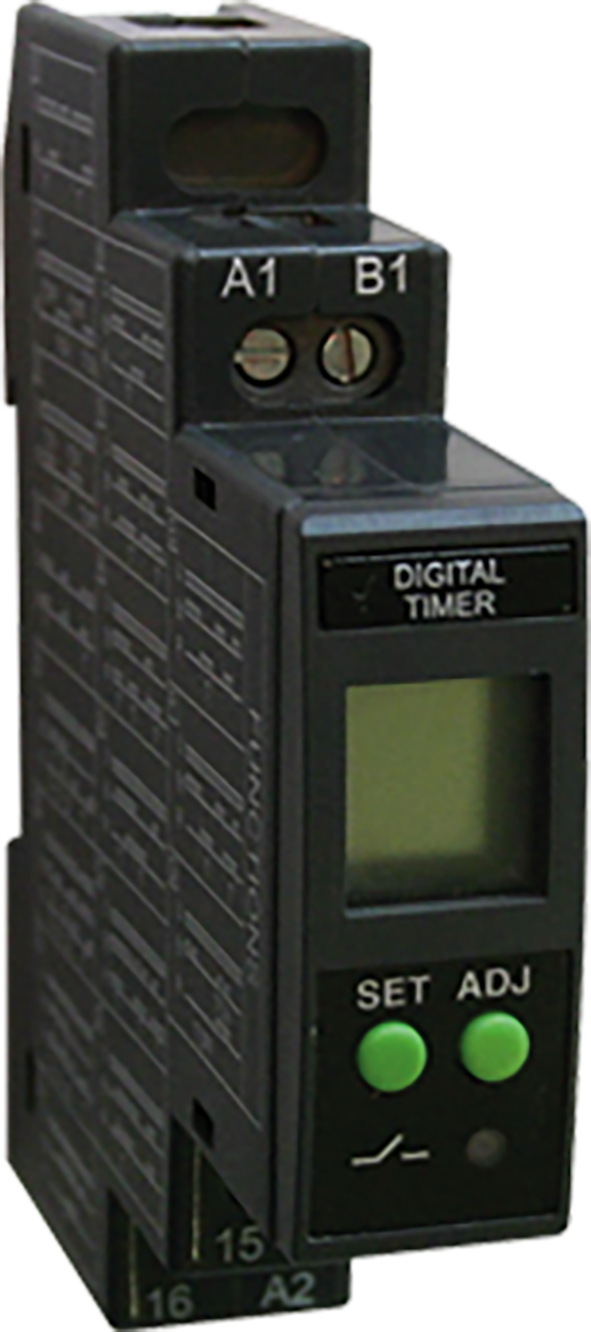

Universal Digital Multi-Timer

Altech Universal Digital Multi-Timer delivers multi-function, programmable timing for industrial automation—DIN rail design with versatile control options for process applications.

Altech's AMT-Series of Universal Digital Multi-Timers comprises 4 models featuring 8 or 18 timer functions to offer highest flexibility in controlling operations. The time range is adjustable from 0.1s to 999h. An LCD display shows current Run time information.

Timer Types:

AMT8-S1
AMT8-D2
AMT12-S1
AMT12-D2

Features:

Multifunctional Timer (8 or 18 Functions)
Universal Voltage 24 ~ 265 VAC/DC
Wide Time Range: 0.1s ~ 999h
3 Digit LCD Display for Preset Time and Run Time
DIN Rail Mounted
17.5 mm Width

Specifications:

Supply Voltage: 24 - 255 VAC/DC (50, 60Hz)
Power Consumption: 10 VA max.
Timing Rnage: 0.1s ~ 999h
200ms max.
Repear Accuracy: +0.5%
Output Contact Rating: 8A @ 240 VAC/ 24 VDC (resistive)
Electrical Life: 10,000 switching cycles
Mechanical Life: 2,000 switching cycles
AC-15 Rating: Rated Voltage (Ue): 125/ 240V, Rated Current (Ie): 3/1.5A
DC-13 Rating: Rated Voltage (Ue): 125/ 250V, Rated Current (Ie) 2/0.22/1 A
Operating Temperature: -10°C ~ +55°C (+14°F ~ 149°F)
Weight: 85 g (0.14 lb.)
IP30
IP20
0.40 Nm (3.5 lb.in.)
Terminal Wire Size: 0.3-2.5 mm² 2-14 AWG)
