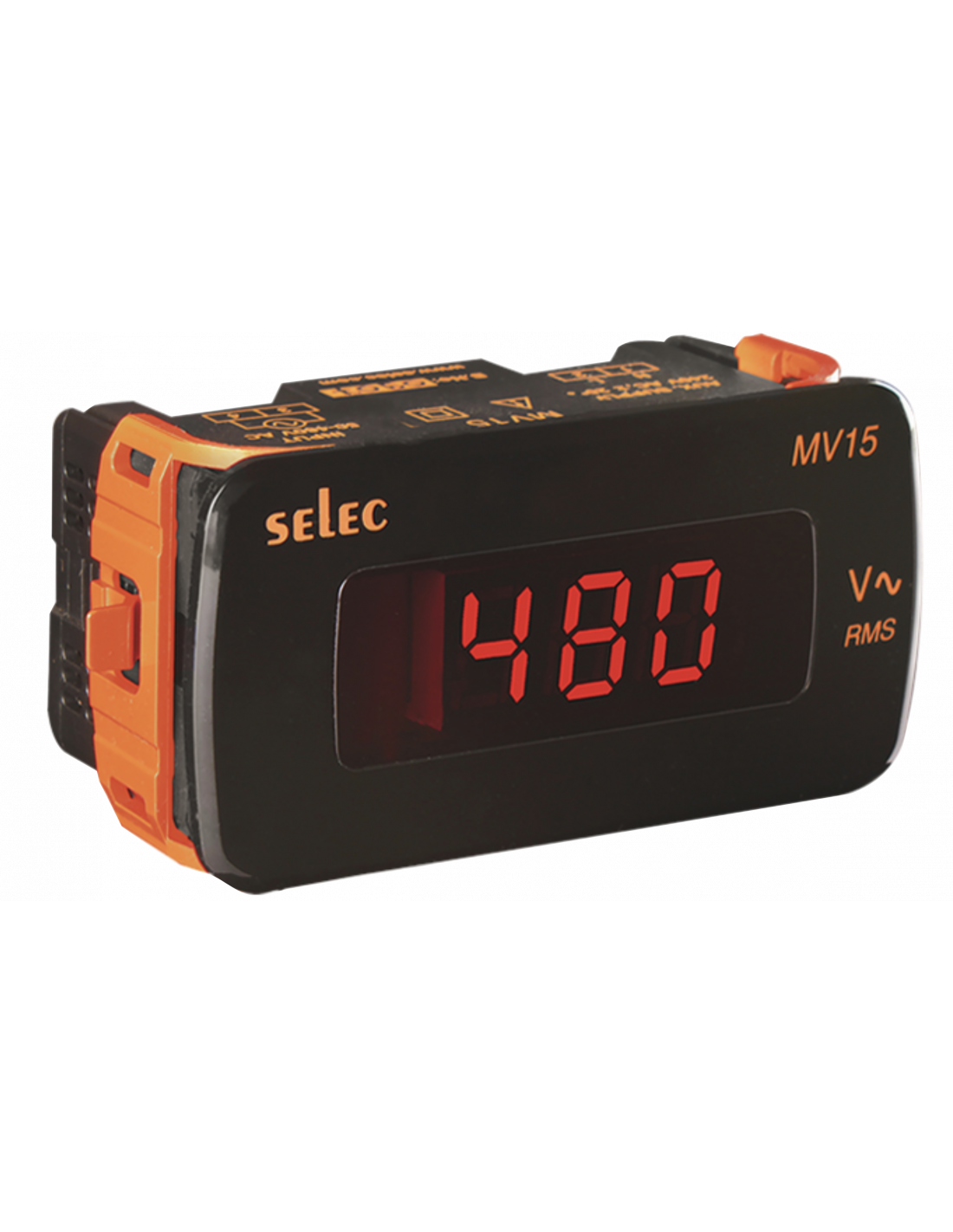

MV15-DC-20V-110V-CU & MV15-DC-2000V-110V-CU, LED Voltage Meters
MV15 Series
LED Voltage Meters
- 1 phase 2 wire systems
- 50 to 480 V measurement
- Accuracy of ± 0.5% of F.S
- 3 Digit 7 segment LED display
- Panel mount
- Input voltage range: 0 ~20VDC (MV15-20V) 0 ~ 200VDC (MV15-200V)
- Supply voltage of 240V AC ±20% , 110V AC ±20%
- CE, RoHS & UL
3 Digit LED Display
- Digital Display
- 7 Segment LED Display
- Digits
- 3 digits
- Bargraph
- none
- Display Range
- 0 - 516V
- Supply Specification
- 110VAC +/- 20% (50/60Hz)
- Electrical Wire System
- 1 Phase (2 wire)
- Input Voltage Range
- 0 ~ 20 VDC (MV15-20V), 0 ~ 2000 VDC (MV15-200V)
- Input Frequency
- 50/60 Hz
- Input Impedance
- 1 MΩ (+/5%)
- Parameter Resolution - Voltage
- 1V
- Parameter Resolution -Sample Rate
- 3 samples / sec
- Accuracy Class - Voltage
- +/-0.5% of Full-Scale Value
- Pulse Output
- none
- Communication
- none
- Programmable Parameters
- none
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate

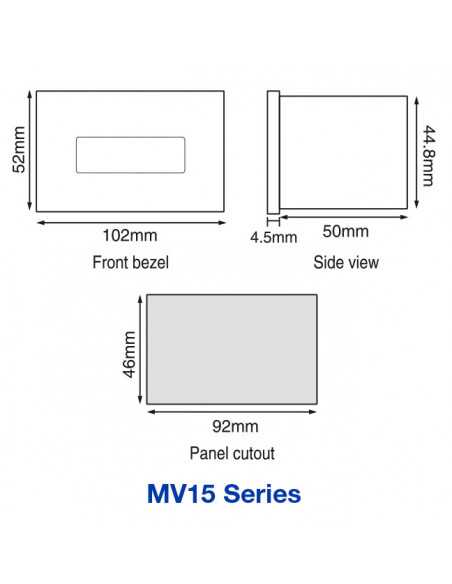

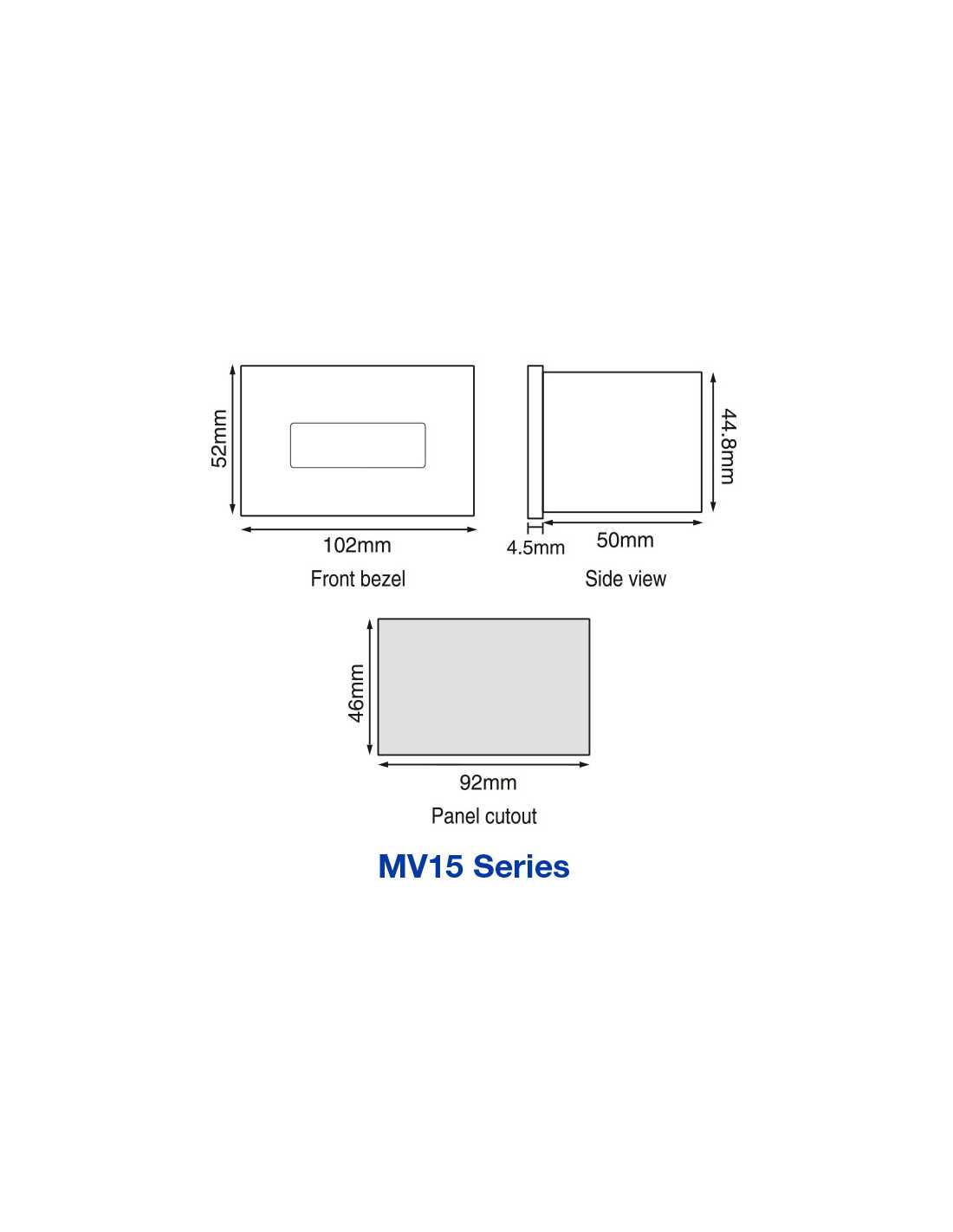

- Size (meters)
- 1/8 DIN, 48 mm x 96 mm
- Weight (meters)
- 0.38 lbs (170g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
MV15-DC-20V-110V-CU & MV15-DC-2000V-110V-CU
