DC UPS Systems

Altech delivers a complete range of DC power technologies designed to keep equipment running safely and reliably. The CBI DC-UPS Series combines a power supply, battery charger, backup module, and battery care system in one compact unit. It prioritizes the load during power interruptions, manages charging intelligently for lead-acid, gel, and Ni-Cd batteries, and prevents deep discharge while maintaining high efficiency.

For applications needing fast, maintenance-free backup, Altech’s C-Tec UltraCapacitor systems use advanced ultracapacitor technology to deliver rapid charge and discharge cycles. They are ideal where brief but frequent power losses occur, providing reliable support without battery wear or replacement cycles.

Altech also offers a full line of DIN-rail power supplies, built with wide input ranges, high efficiency, and comprehensive protections against short circuit, overload, and overvoltage. Designed for rugged industrial environments, these supplies meet UL and IEC standards, ensuring reliable operation across demanding applications.

Together, Altech’s DC-UPS devices, ultra-capacitor backup modules, and DIN-rail power supplies provide a complete ecosystem of industrial power continuity—covering everything from primary supply to smart energy storage and rapid backup.

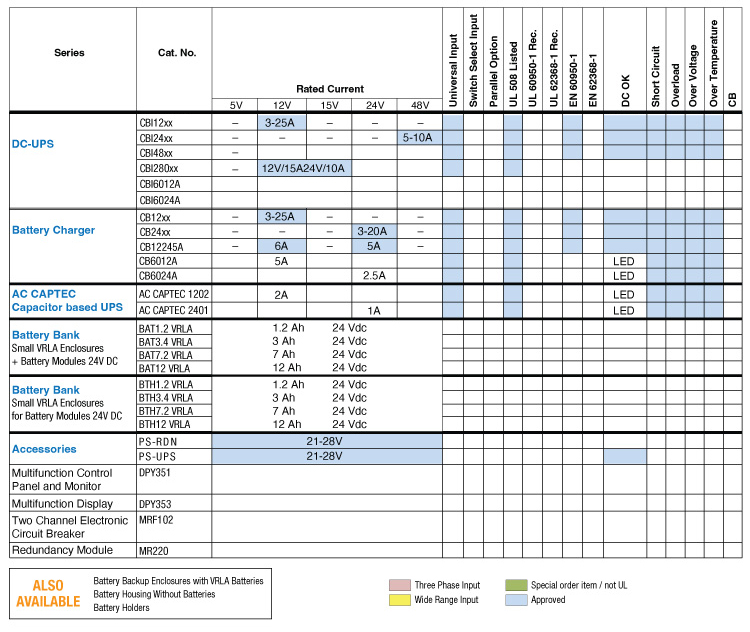

Selection Guide

Please click table items for more information.

DC-UPS

Ultra-Capacitor

Power Supplies

Compact

Low Profile

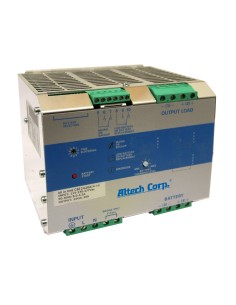

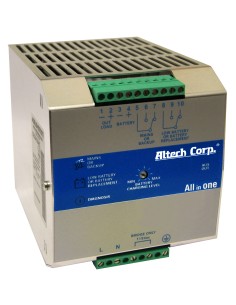

CBI Series DC-UPS Solutions

CBI All In One UPS Power Solutions combine the requirements for several applications in just one device which can be used as power supply unit, battery charger, battery care module or backup module. The available power is automatically distributed among load and battery, while supplying power to the load always is the first priority. The maximum available current of the load output is two times the value of the device’s rated current.

If the device is disconnected from the main power source, the battery will supply the load until the battery voltage reaches 1.5 V per cell. This prevents the battery from deep discharge. CBI devices provide microprocessor controlled battery charging. Using algorithms, the battery’s condition will be detected and based on that, an appropriate charging mode is chosen. The real-time diagnostics system will continuously monitor the charging progress and indicate possibly occurring faults such as elements in short circuit, accidental reverse polarity connection or disconnection of the battery by the battery fault LED and a flashing code of the diagnosis LED.

CBI All In One UPS Power Solutions are suitable for open/sealed lead acid-, lead gel- and optionally Ni-Cd batteries. By using the battery-select-jumper, it is possible to set predefined charging curves for those battery types. The available charging options are recovery-, boost- and trickle charge. All CB devices are built in a rugged metal case with a DIN rail mounting bracket.

FEATURES

Power supply, battery charger, battery care module and backup module in one device
Three charging modes
Compact, rugged metal case
Available in 12VDC, 24VDC and 48VDC
Suitable for most common battery types
Adjustable charging current
Easy battery diagnosis and fault identification either by LED or external devices connected to fault
Status contacts
High efficiency up to 91% through switching technology
Several output protection features such as short circuit, overload, deep battery discharge etc.
DIN rail mounting
Small size
3 year warranty

CB Series Battery Chargers

With the CB Battery Charger Line, Altech offers a highly reliable battery management solution. Operating at single phase Input Voltages of 115-230-277 VAC, the devices supply an Output of 12VDC and up to 35A or 24VDC and up to 20A.

Equipped with microcontrollers, the CB line offers fully automated multi-stage charging that will expand the battery's life significantly. Several diagnostic and monitoring features ensure easy handling and a high amount of transparency during daily operation.

Altech's CB line battery chargers are based on the switching technology which allows much higher efficiency as well as smaller and lighter devices. Additionally, several standard safety and protection features ensure safe installation and operation.

FEATURES

Fully automated charging
Three charging modes
Compact, rugged metal case
Available in 12VDC and 24VDC
Suitable for most common battery types
Adjustable charging current
Easy battery diagnosis and fault identification either by LED or external devices connected to fault status contacts
High efficiency up to 91% through switching technology
Several output protection features such as short circuit, overload, deep battery discharge etc.
DIN rail mounting
Small size
3 year warranty

Ultra Capacitor DC-UPS

Ultra Capacitor based technologies provide an attractive yet efficient platform for both simple and complex applications.

The DC Back-Ups from Altech Corp.® utilize Ultra Capacitors as an innovative way to store energy within a compact design. In the event of a main power supply interruption, the energy stored in the Ultra Capacitors is released. The load is energized from the buffer module, until it‘s depleted.

Back up times depend on the state of the charge of the Ultra Capacitors and the load in which they are supplying. Compared with standard buffer modules, Ultra Capacitor units are capable of prolonged back-up times (up to 55 minutes) and fast discharges. Capacitors excel at controlled shutdown functions and allowing for the protection of computer systems. Backup times are dependent on the load and amount of Capacitors within the unit. Back up times can be calculated to better serve the requirements of required functions.

FEATURES

Works primarily in an online parallel configuration
Controlled shut down functions
Up to 40 A low discharge protection through load rejection
Ultra Capacitors have 15 years of life
Quick back up recharges due to the nature of Ultra Capacitors
DIN rail mount

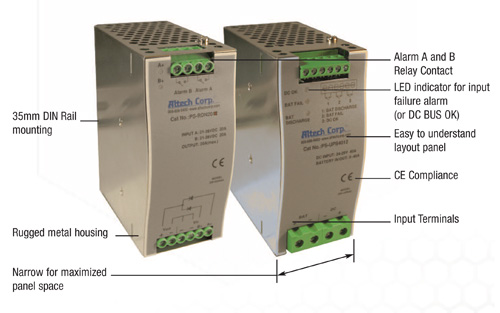

Accessories: Redundancy Buffer Module UPS Battery Module

REDUNDANCY BUFFER MODULE

PS-RDN20 is a 20A redundancy (decoupling) module for the 24V DC power system. Containing 2 sets of 20A Or-ing diodes with wonderful heat dissipation deployment, PS-RDN20 give you a new option for safe connection of 1+1 redundant set-up. Not only perfectly decouple power sources from each other as well as from the load, PS-RDN20 also provides users monitoring signals for both input channels through the built-in relays. Since there’s no switching components inside the module, PS-RDN20 will not arise additional EMI issues and should provide you a worry-free application platform!

DC input voltage range 21~28V, 20A max. x 2 channels
Reverse voltage 30V
DC output current 20A max.
DC output voltage drop 0.5V max.
Input voltage alarm When input is > 20V(±5%) or <30V(±5%), relay contacts
Relay contact rating 30VDC, 1A
Working Temperature -20~+70°C
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8, ENV50204
Connection I/P: 4 poles, O/P: 2 poles screw DIN terminal,
Single output: 4 poles

UPS BATTERY MODULE

PS-UPS40 is a 40A max. DC UPS (battery control) module for the 24 V DC power system. Accompany with external batteries, it can back-up up to 40A of current to critical loads for certain period of time depending on the capacity of batteries. With complete monitoring signals and LED indicators for DC BUS OK, Battery Fail, Battery Discharge and the repeated Battery Test function to check the situation of external batteries. Users can customize their own DC UPS system to back up critical loads and capture the status of the whole system easily.

DC input / DC bus 24~29V, 40A max.
Battery inout voltage 21~29V
Battery input current 0~40A
Charge current (typ.) 2A
External battery (typ.) 24V, 4AH / 7AH / 12AH
DC bus ok Relay status: Short when DC voltage between 21~29V(±3%), relay contacts
Battery fail Relay status: Short when battery failure is observed through the battery test function, relay contacts
LED (red): Battery over-discharge warning or battery broken: light; battery OK: dark
Battery discharge Relay status: Short when battery in discharge condition, relay contacts
LED (yellow): Battery discharging: light; battery is not discharging or discharging current <2A: dark
Working temperature -20~+70°C
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8, ENV50204
Connection I/P: 2 poles, O/P: 2 poles screw DIN terminal, Single output: 6 poles
