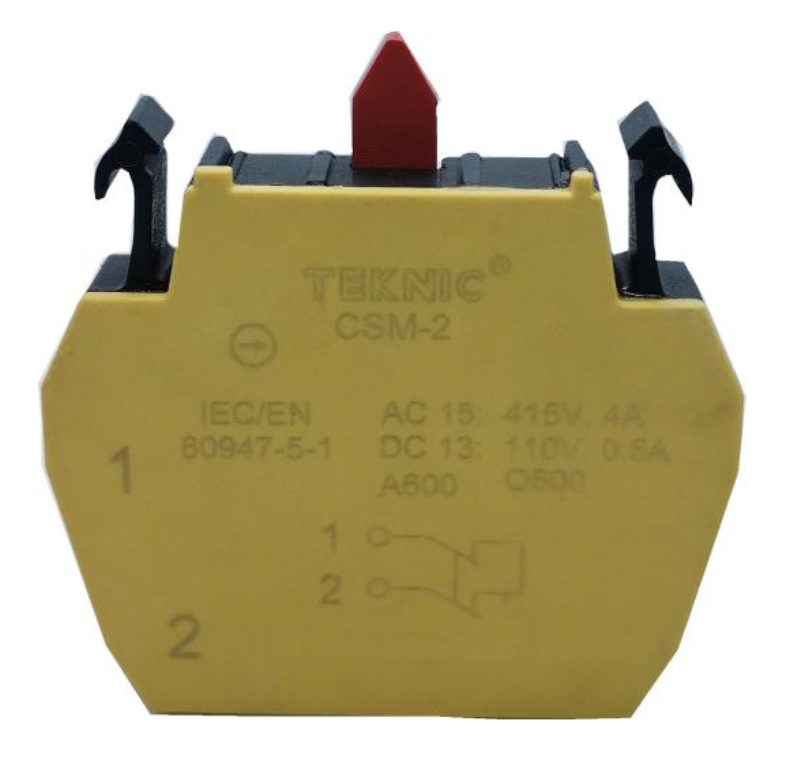

CSM-2
It's a cover mounting type, Normally Closed (NC) contact element. This can be fitted with any illuminated/non-illuminated metallic or plastic operating Emergency Stop Actuator. These contact elements are interchangeable.
A maximum of three elements can be assembled with non-illuminated operating actuator and two elements can be assembled with illuminated operating actuator.
They have fully shrouded terminals and are protected against the ingress of small objects during assembly and wiring.
NEW CS2-M
Introducing our newest innovation designed for enhanced safety and reliability- CSM-2, Self-Monitored Clip-on Contact Element.
The CSM-2 is specifically designed to strengthen safety performance by automatically disengaging the circuit during mechanical failure or physical separation.
It's a cover mounting type, Normally Closed (NC) contact element. This can be fitted with any illuminated/non-illuminated metallic or plastic operating Emergency Stop Actuator. These contact elements are interchangeable.
Salient Features
- Aesthetically elegant
- Robust Construction
- Simple to fix
- ExtraSafe Operation
- Good flame resistance
- Shrouded Terminals
- Long life
- Direct Opening
