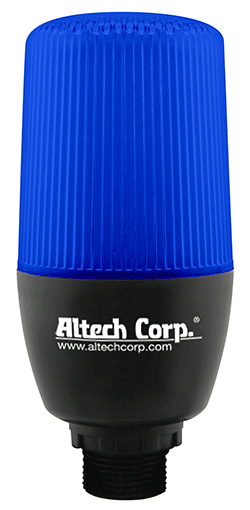

Tower Lights

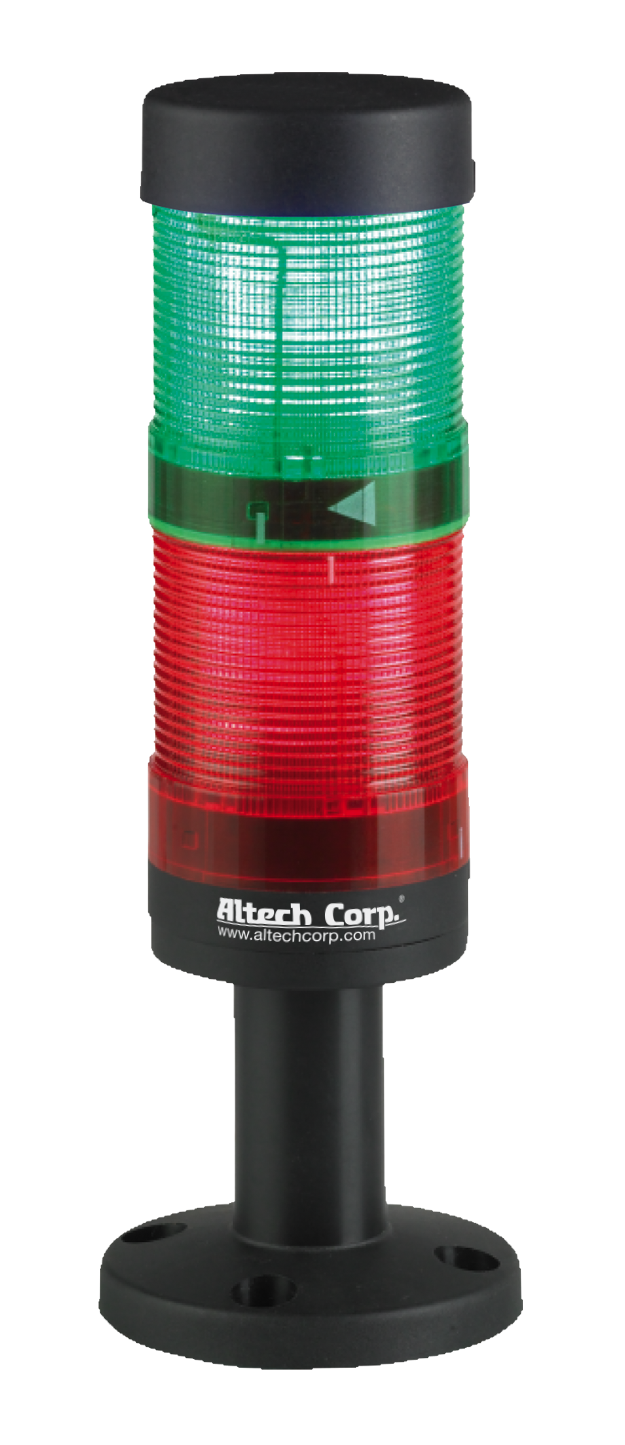

Altech Tower Lights offer bright, reliable visual signaling—LED, stackable, multi-color, and IP65-rated for industrial machine status and safety alerts.

Features

  • Sleek & Stackable Design
  • SMD LED technology
  • Uniform & bright illumination

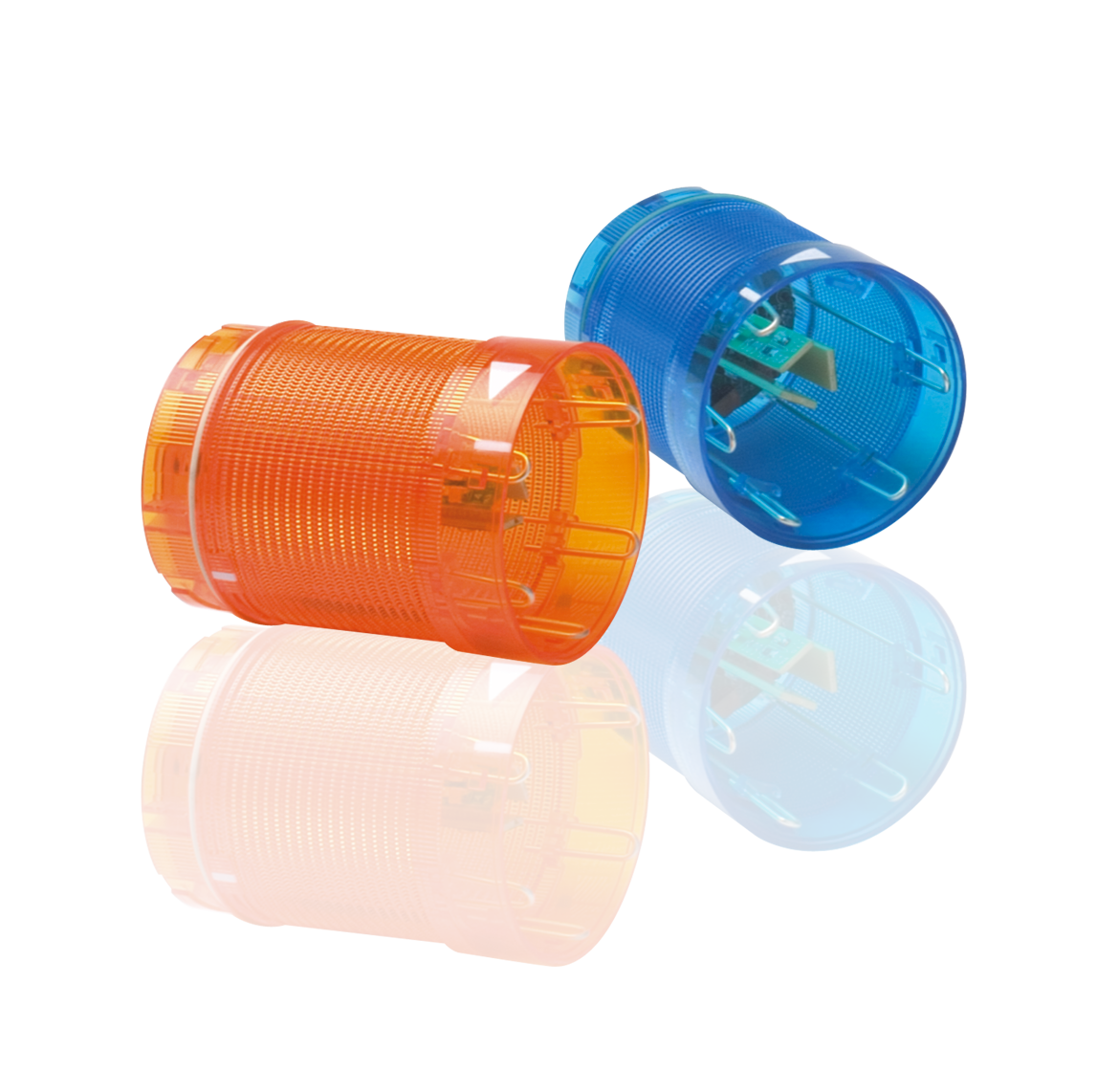

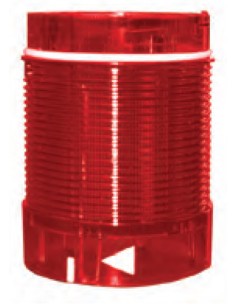

  • Continuous, Flashing and Rotary Integrated LED Light Modules available
  • Flexibility to upgrade from Single LED Unit to multiple LED Units
  • IP65 protection | Wide voltage range from 24V AC/DC to 240V AC
  • Optional feature of Buzzer with dual sound mode - continuous & intermittent with 80 DB output

Click here FOR online catalog.

Click here FOR Signaling brochure.

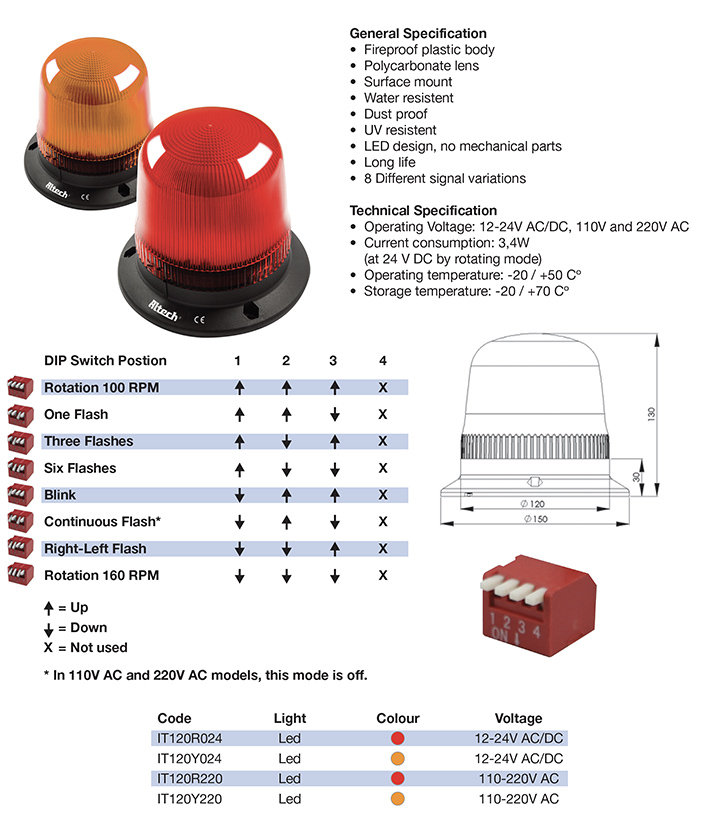

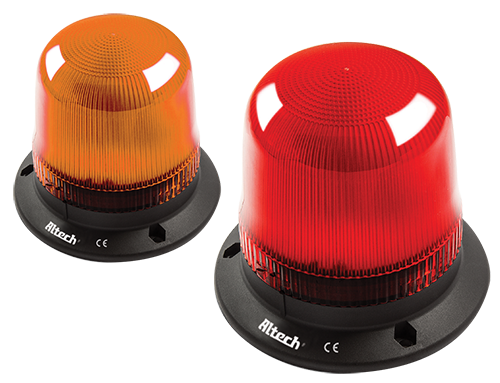

NEW SIGNALING DEVICE - SPECIFICATION PAGE LINK

NEW IF-SERIES - SPECIFICATION PAGES LINK

Technical Information
Outer Diameter
Degree of Protection
LED Type
Lens Color
Luminous Mode
Buzzer Color
Buzzer Sound Level
Sounding Mode
Voltage Range
Limit of Operating Voltage
Operating Temperature
Surge Test
HV Test for 60 Seconds
Current Rating		Ø50mm
IP65 & UL (1 | 2 | 3 | 3R | 4 | 4X | 12 | 13)
SMD
Red / Green / Amber / Blue / White
Continuous, Blinking & Revolving
Black
80dB ± 5dB
Continuous & Intermittent
24V AC/DC, 120V AC, 240V AC
±10% of rated voltage
-30°C to 60°C
2 KV
1.5 KV
20-40mA for 24V AC/DC
10-20mA for 120V AC & 240V AC
Filters
Selection Guide
tower lights - color
Amber(12)
Blue(12)
Green(12)
Red(9)
White(9)
Yellow(9)
tower lights - voltage
12V AC/DC(18)
24V AC/DC(18)
110V AC(18)
240V AC(9)
tower lights - mode

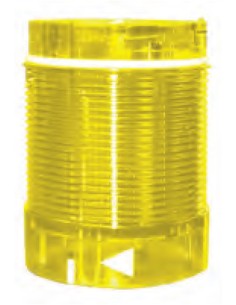

Continuous LED(21)

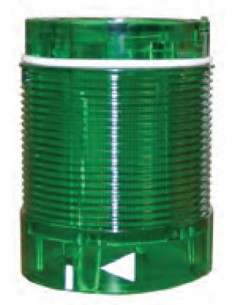

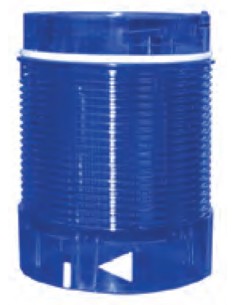

Flashing LED(21)

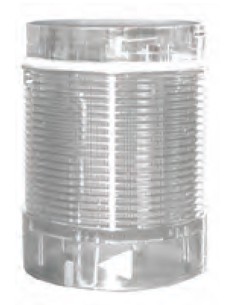

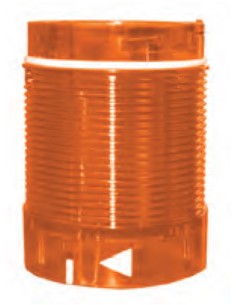

Rotating LED(21)
