DIN Rail Mounted Electronic Enclosures

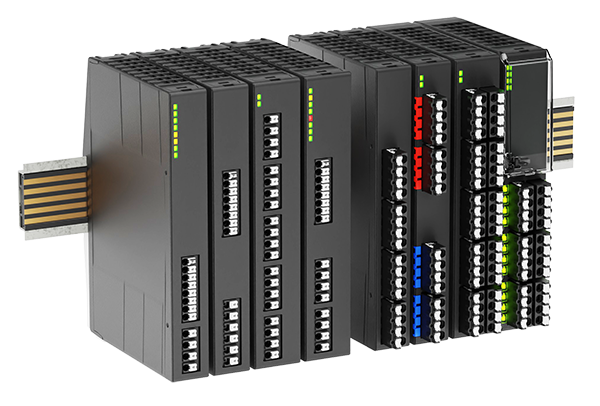

KV4600 Series - Modular and Innovative Enclosure System
- Modular and innovative enclosure system
- Integrated fixed and pluggable connection technology options
- Housing, front plate and terminal arrangement
can be custom configured - More connections on less width - up to 40 pins
per 22.5 mm module - Module widths of 12.5, 17.5 and 22.5mm with multiple installation depths available
- Custom configured to meet you specific requirements
The multifunctional, modular enclosure system with overall widths of 12.5 / 17.5 / 22.5 mm are particularly suitable for modern control and industrial IoT applications as well as a number of other applications - including as a single stand-alone enclosure solution. Reduce your installation effort - with just a few enclosure components to the finished device. Increase your degree of automation - the push-in terminals meet the high requirements of the reflow soldering process. Individuality - customer-specific adaptations can be realized in a simple and cost-effective way.
HIGHLIGHTS
- Module widths from 12.5 mm and different installation depths available
- Usage of up to two circuit boards per enclosure width
- High contact density due to the use of compact push-in terminals
- Light conductor concept - high display density with minimum space requirements
- Common bus concepts can be integrated into the bottom assembly
- Optionally sealable, tiltable front cover (manipulation protection)
- Optional mounting rail bus system (In-Rail-Bus)
- Easy and cost-effective realization of customer-specific adaptations
Integrated fixed and pluggable connection technology
- More connections on less width - up to 40 pins per 22.5 mm module
- The push-in terminal technology meets the high requirements of the reflow soldering process
- Quick, tool-free, direct and vibration-resistant connection of the conductors
- High mechanical stability and vibration resistance
- Pluggable push-in terminals 4-pin in 5.0 mm pin spacing
- Fixed push-in terminals 4, 6, 8, 10-pin in 3.5 or 5.08 mm pin spacing
- Optionally, each terminal connection can be assigned to a light conductor
Smart and super compact electronic enclosures
The I/O electronic enclosure is a variant of the enclosure series KV 4600 and excels with its super compact module width of only 12.5 mm and depth of 66 mm. The I/O enclosure is particularly suitable for modern control and industrial IoT applications, e.g. in the area of process engineering, and a number of other applications with confined space conditions.
The pluggable push-in connection technology is integrated from the front side. The wiring, reading of signals or the connection of plugs is therefore practice-oriented and convenient in the application. Device systems are often contacted and managed decentrally via bus systems. For this purpose, the I/O electronic enclosure offers connecting elements that are separately available and make it possible to link the individual modules.
- Convenient front connection technology for the transfer of signals, data, and power
- Up to 20 inputs/outputs per module - 5 slots per circuit board
- Space-saving module width of only 12.5 mm with an installation depth of 66 mm
- PCB surface of 6429 mm2
- High mechanical stability
- Common bus concepts can be integrated into the bottom assembly
- Optionally, each terminal connection can be assigned to a light conductor
