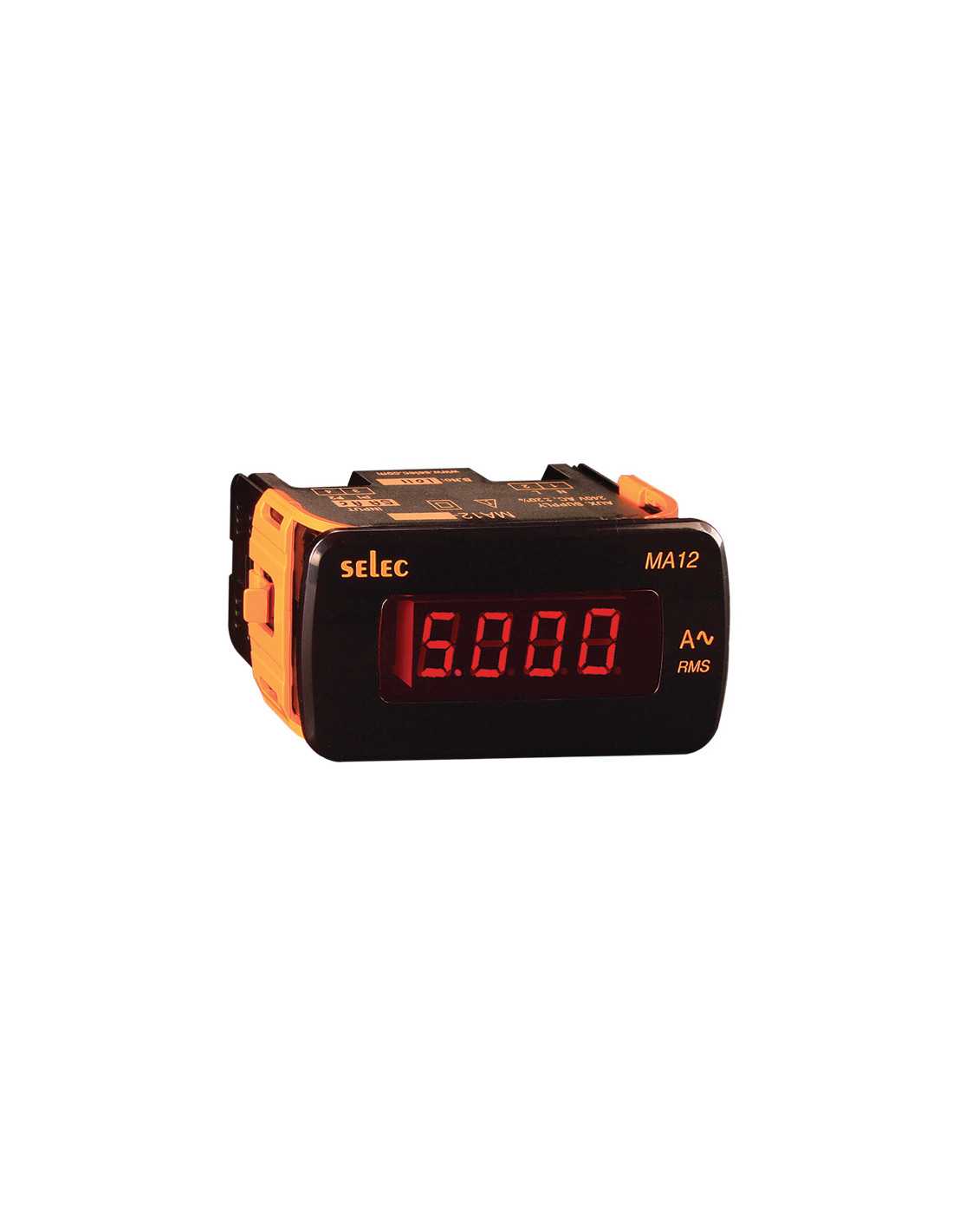

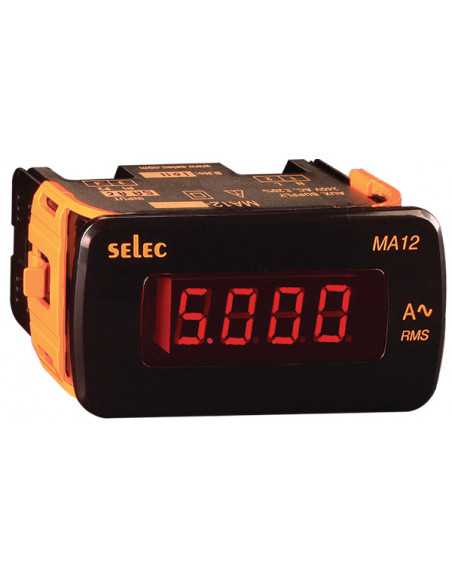

MA12-110V-CU, LED Ampere Meters

MA12 Series

Programmable CT Primary/Shunt Setting
AC version (CT Type)
DC version (Shunt Type, External Shunt (50mV/100mV) is required for measurement.)
4 Digit LED Display

Digital Display: 7 Segment LED Display
Digits: 4 digits
Bargraph: none
Display Range: 0 - 4960A
Supply Specification: 110VAC +/- 20% (50/60Hz)
Electrical Wire System: 1 Phase (2 wire)

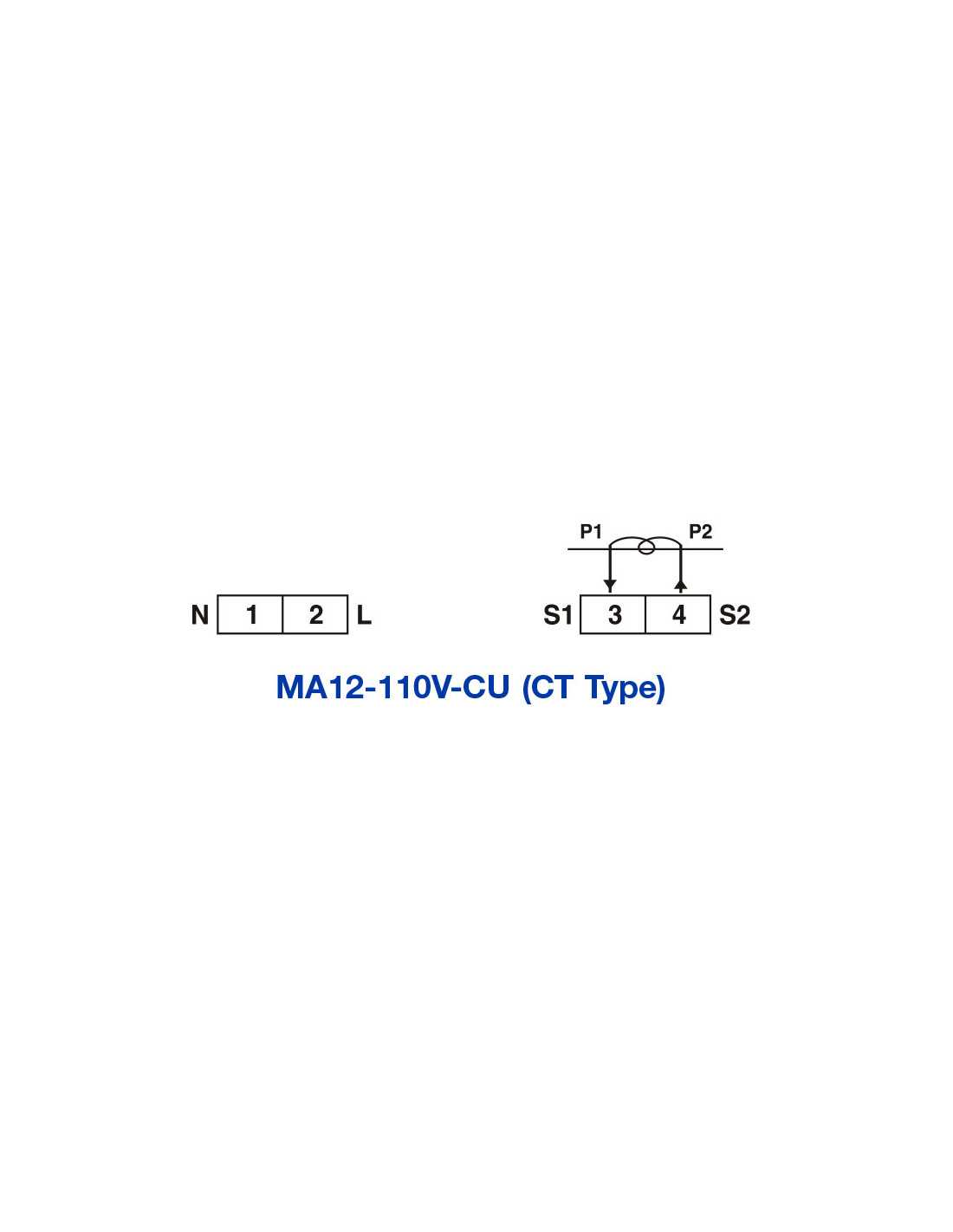

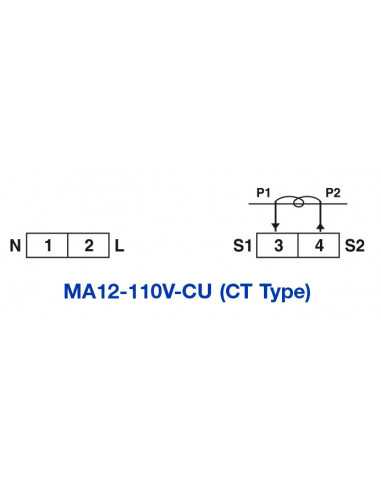

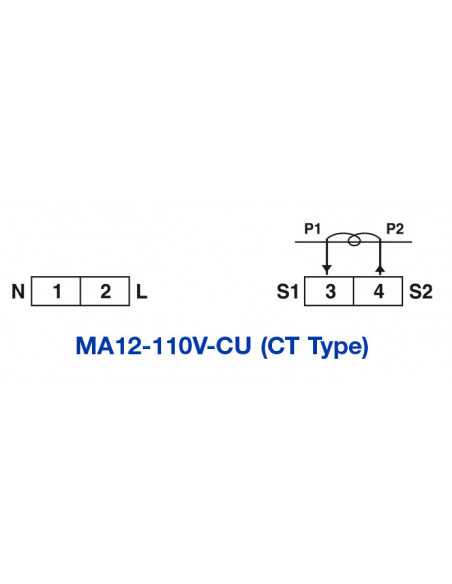

Input Specification - Measurement Type: AC, CT Type, External CT required for current greater 5A
Input Specification - Shunt Size: none
Input Current Range: 50mA ~ 5A (External CT required for current greater 5A)
Input Frequency Range: 45 ~ 65 Hz
Parameter Resolution - Current: 0.001, 0.01, 0.1, 1A (depending on CT Primary)
Parameter Resolution -Sample Rate: 3 samples / sec
Accuracy Class - Current: +/-0.5% of Full-Scale Value
Pulse Output: none
Communication: none
CT Primary / Shunt Setting: 5, 10, 20, 30, 40, 50, 60, 75, 80. 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1500, 1600, 2000, 2500, 3000, 4000
CT Secondary: 5A fixed (External CT must be connected for current greater 5A)
Temperature (meters): Operating: -10°C~55°C, Storage: -20°C~ 75°C
Humidity: Up to 85% RH
Protection Level (meters): IP65 for Faceplate

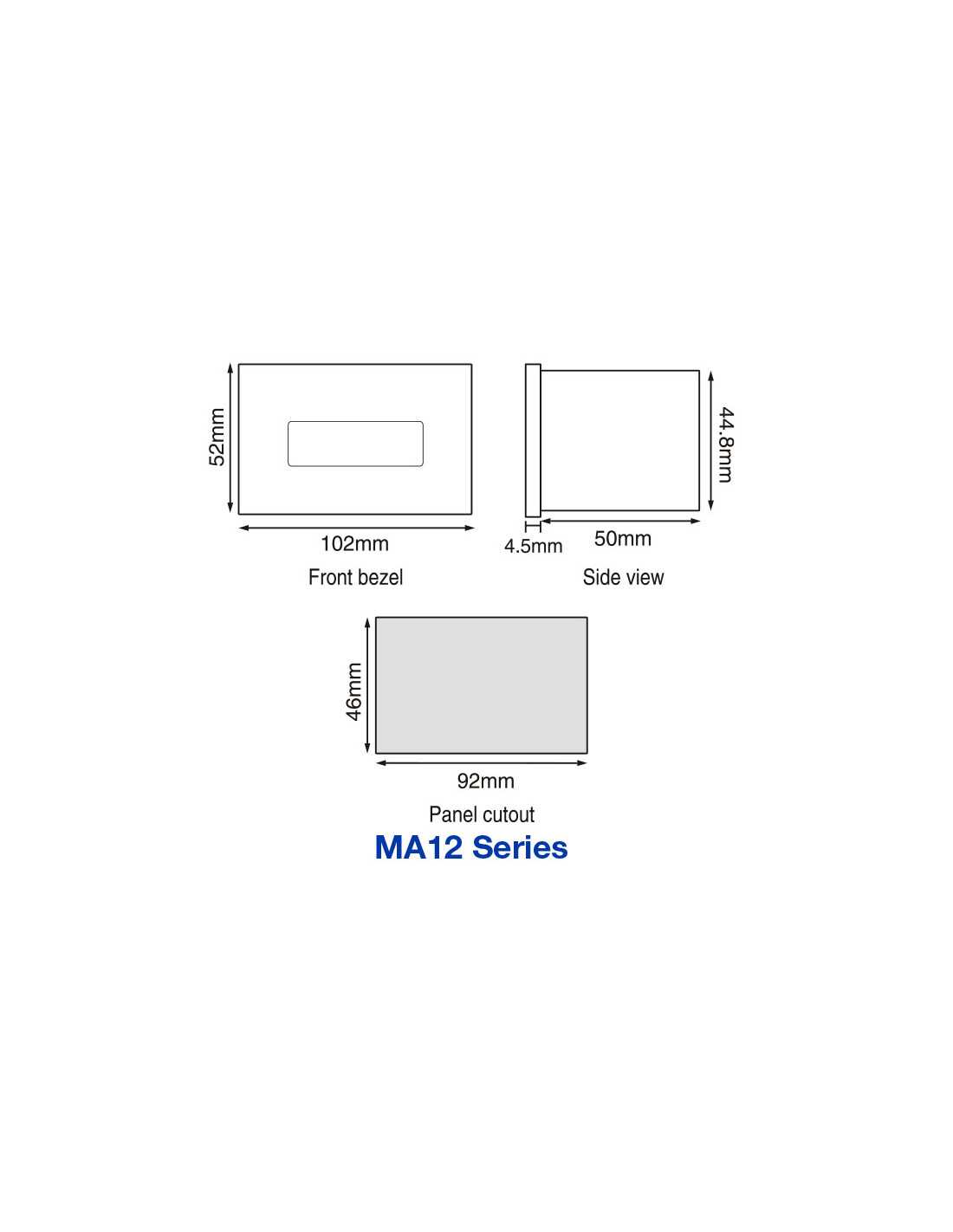

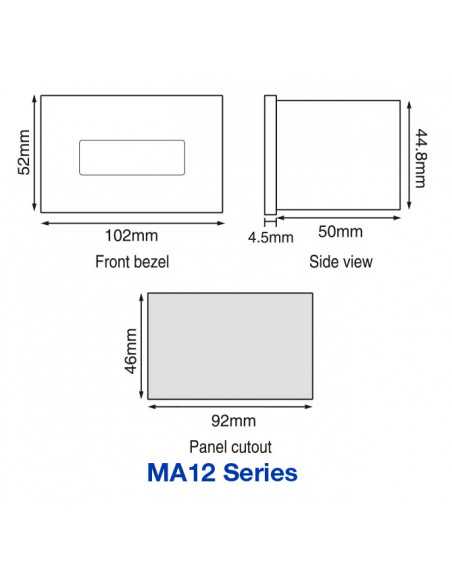

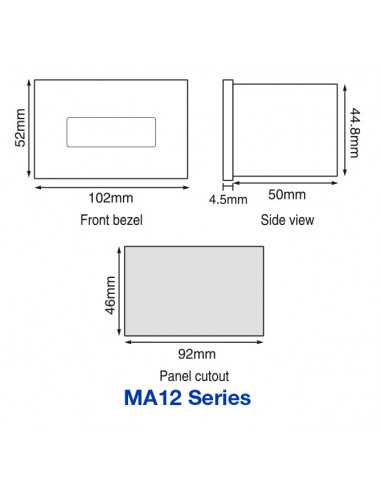

Size (meters): 1/8 DIN, 48 mm x 96 mm
Weight (meters): 0.37 lbs (170g)
Terminal Size Acceptability and Torque: 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)

Part Number MA12-110V-CU
