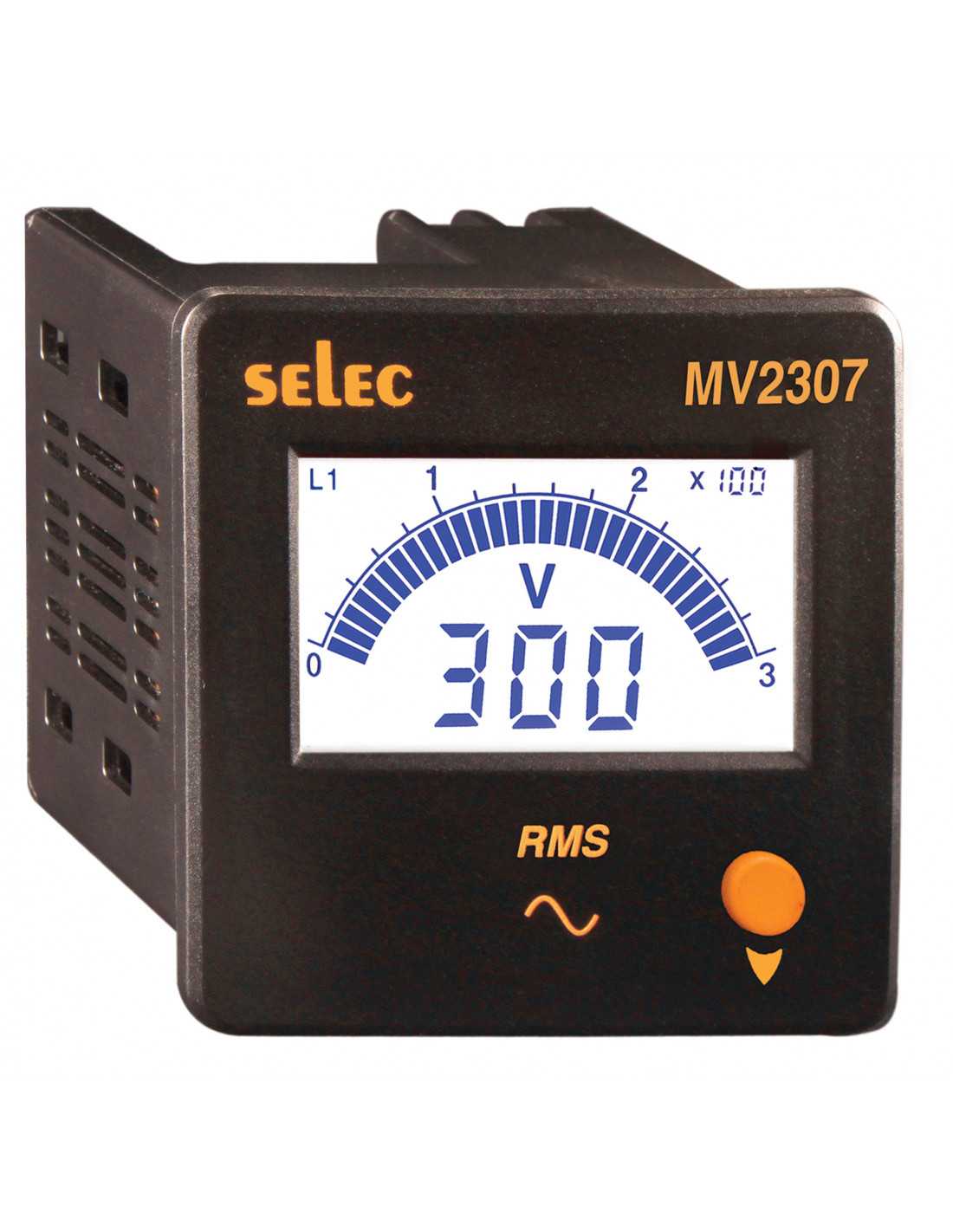

MV2307-110V-CU, LCD Voltage Meters
MV Series
LCD Voltage Meters
- 1 phase & 3 phase systems
- 50 to 480 V measurement
- Accuracy of ± 0.5% of F.S
- 3 digit LCD display with analog style bargraph
- Panel mount
- Supply voltage of 240V AC ±20% , 110V AC ±20%
- Integrated selection switch for Phase Selection (MV2307)
- LCD Display with Backlight
- Bargraph Indicator
- Digital Display
- LCD Display with backlight
- Digits
- 3 digits
- Bargraph
- Analog bargraph Indicator
- Display Range
- 0 - 516V
- Display Scrolling
- Manual phase selector switch
- Supply Specification
- 110VAC +/- 20% (50/60Hz)

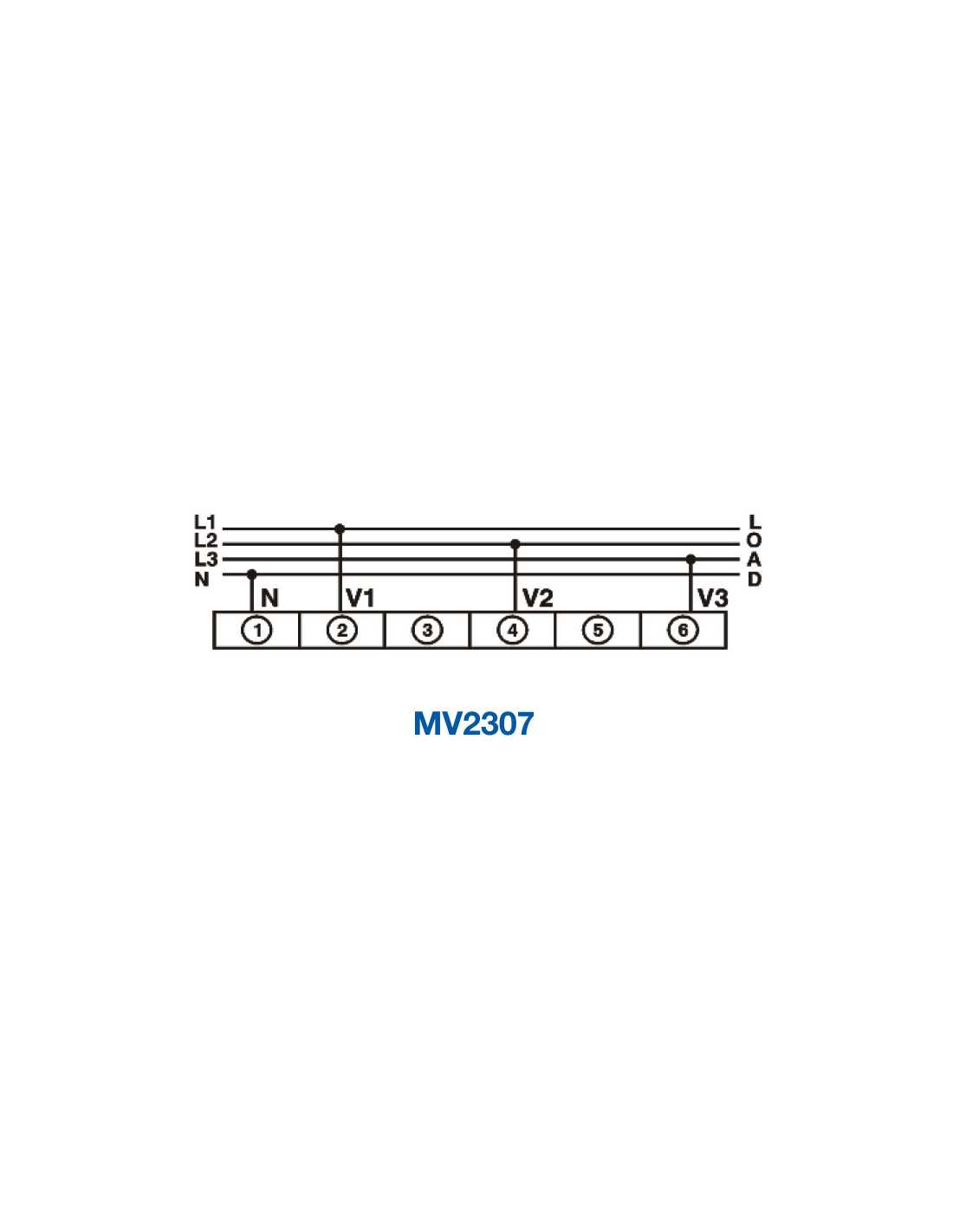

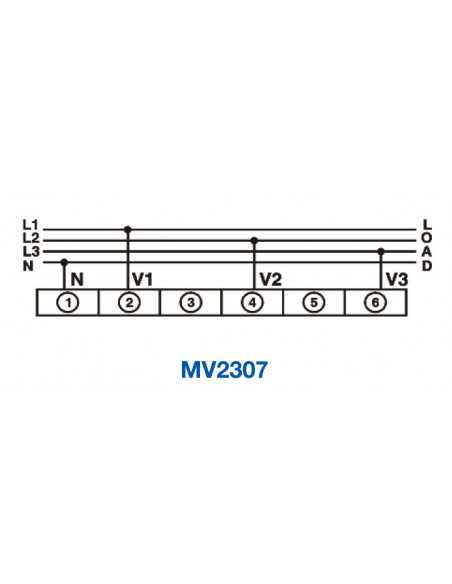

- Electrical Wire System
- 3 Phase (3/4 wires)
- Input Voltage Range
- 50 ~ 516 VAC
- Input Frequency
- 60 Hz
- Input Impedance
- 1 MΩ (+/5%)
- Parameter Resolution - Voltage
- 1V
- Parameter Resolution -Sample Rate
- 3 samples / sec
- Parameter Resolution - Run Hour
- none
- Accuracy Class - Voltage
- +/-0.5% of Full-Scale Value
- Pulse Output
- none
- Communication
- none
- Programmable Parameters
- none
- Temperature (meters)
- Operating: -10°C~55°C, Storage: -20°C~ 75°C
- Humidity
- Up to 85% RH
- Protection Level (meters)
- IP65 for Faceplate

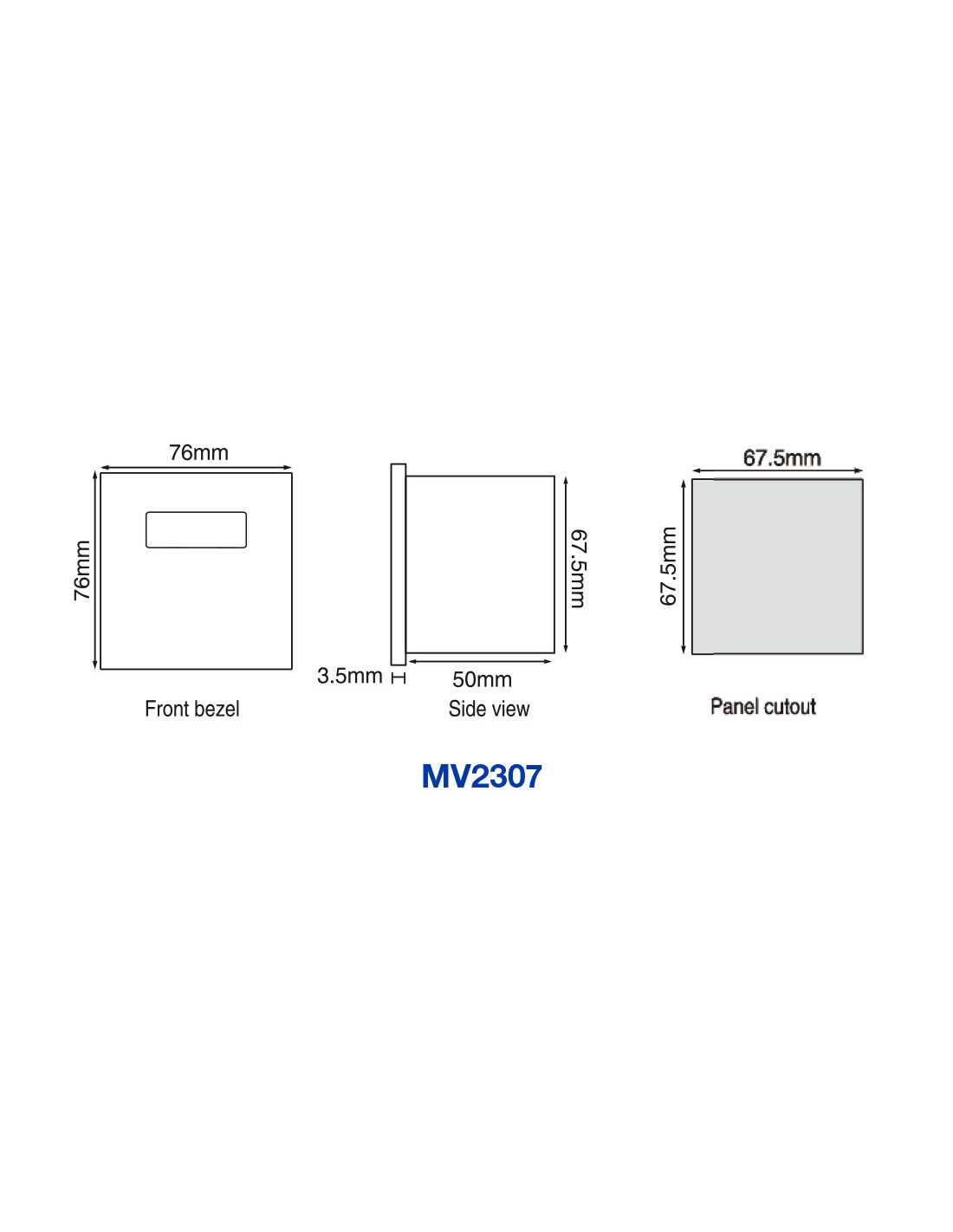

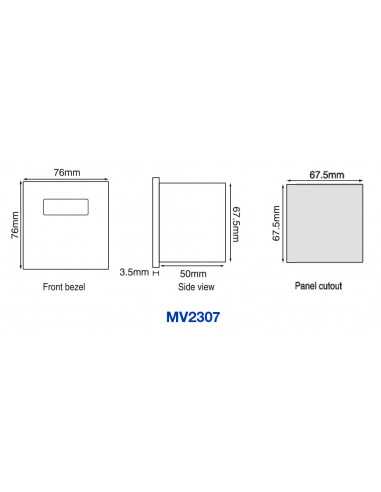

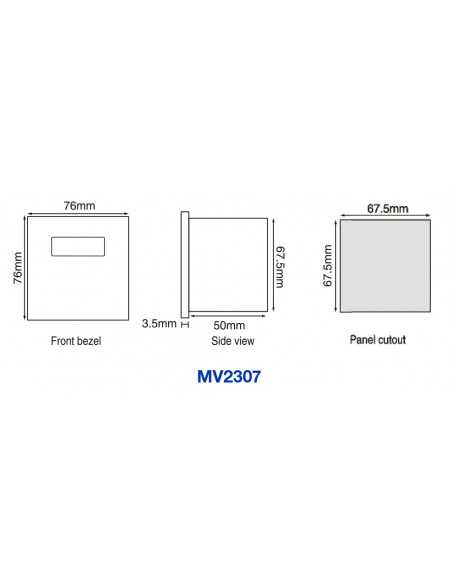

- Size (meters)
- 72 mm x 72 mm
- Weight (meters)
- 0.43 lbs (194g), 0.45 lbs (206g)
- Terminal Size Acceptability and Torque
- 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
