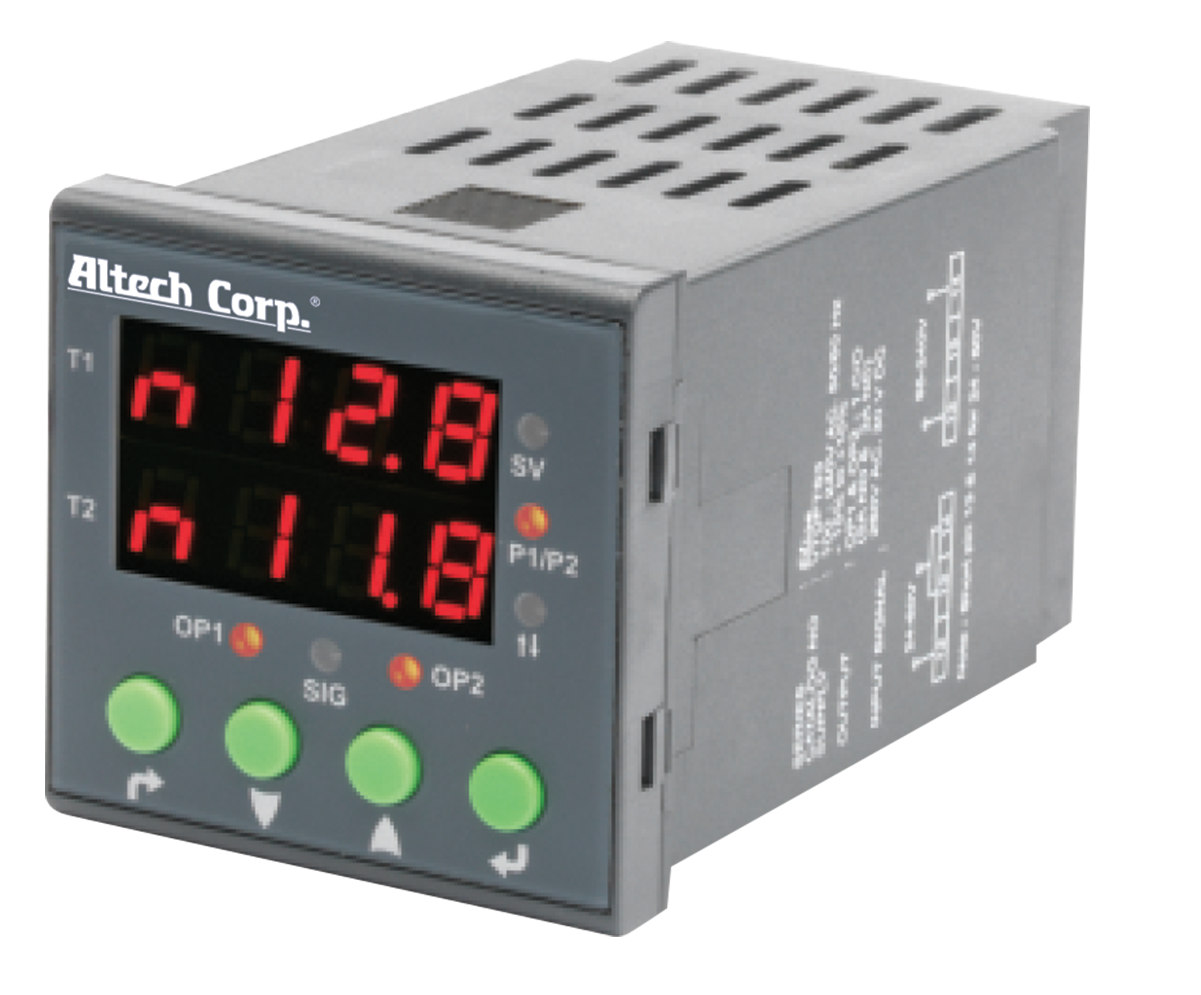

Programmable Panel-Mount Digital Multi-Timer

Altech Programmable Panel-Mount Digital Multi-Timer offers multi-function, precise timing control for industrial automation—easy to program and install in standard panels.

AMT33 Series of Programmable Panel-Mount Digital Multi-Timers comprises 2 models featuring 33 Timing Functions and 2 separate Outputs with selectable Timing modes for maximum flexibility in automation and control applications. Timing Range is adjustabel from 0.1s to 999 days. A Digital 7-Segment shows current Run Time information and Input/Output states.

Timer Types:

AMT33-S2
AMT33-S2-11

Features:

33 Built-in Timing Functions
Supply Voltage 110-240 VAC
7 Segment Digital LED Display
2 Separate Output Channels
Individually selectable Timing Functions
Wide Timing Range 0.1s - 999 days
Compact Design
Panel & DIN rail (11-pin socket) mount

Specifications:

Electrical
- Supply Voltage: 110-240VAC (-20% to + 10%), 50 -60 Hz
- Power Consumption: 9 VA max.
- Timing Range: 0.1s - 999 days
- Reset Time/ Initiation Time: max. 200ms/ 100 ms
- Timing Accuracy: +/-0.01%
Input
- Input Signal: High Range: 85-265vac/ 100-265DC
  Low Range: 24-60V AC/DC
- Signal Sensing Time: 50ms max (10ms for DC)
- Signal Wait Period: 100ms @ Power on/signal based modes
- Signal Isolation: 2kV
Output
- Output Configuration: 2 x SPDT (C/O)
- Output Contact Rating: 5A (NO), 3A (NC)
- Electrical Life: 10,000 switching cycles
- Mechanical Life: 500,000 switching cycles
- AC-15 Rating: 250VAC/ 2A, cos⏀=0.6, 85 °C
- DC-13 Rating: Rated Voltage (Ue): 24VDC, Rated Current (Ie): 2.0A
Material
- Operating Temperature: -5°C - 55°C (23°F - 131°F)
- Storage Temperature: -10°C - 60°C (14°F - 140°F)
- Protection Enclosure: IP30 (Enclosure), IP20 (Terminals)
- Torque Terminals: 0.50 Nm (3.5lb.in.), M3 screw
- Terminal Wire Size: 0.12-2.0mm ² (26-14 AWG)
- Weight: 160 g (0.35lb)
