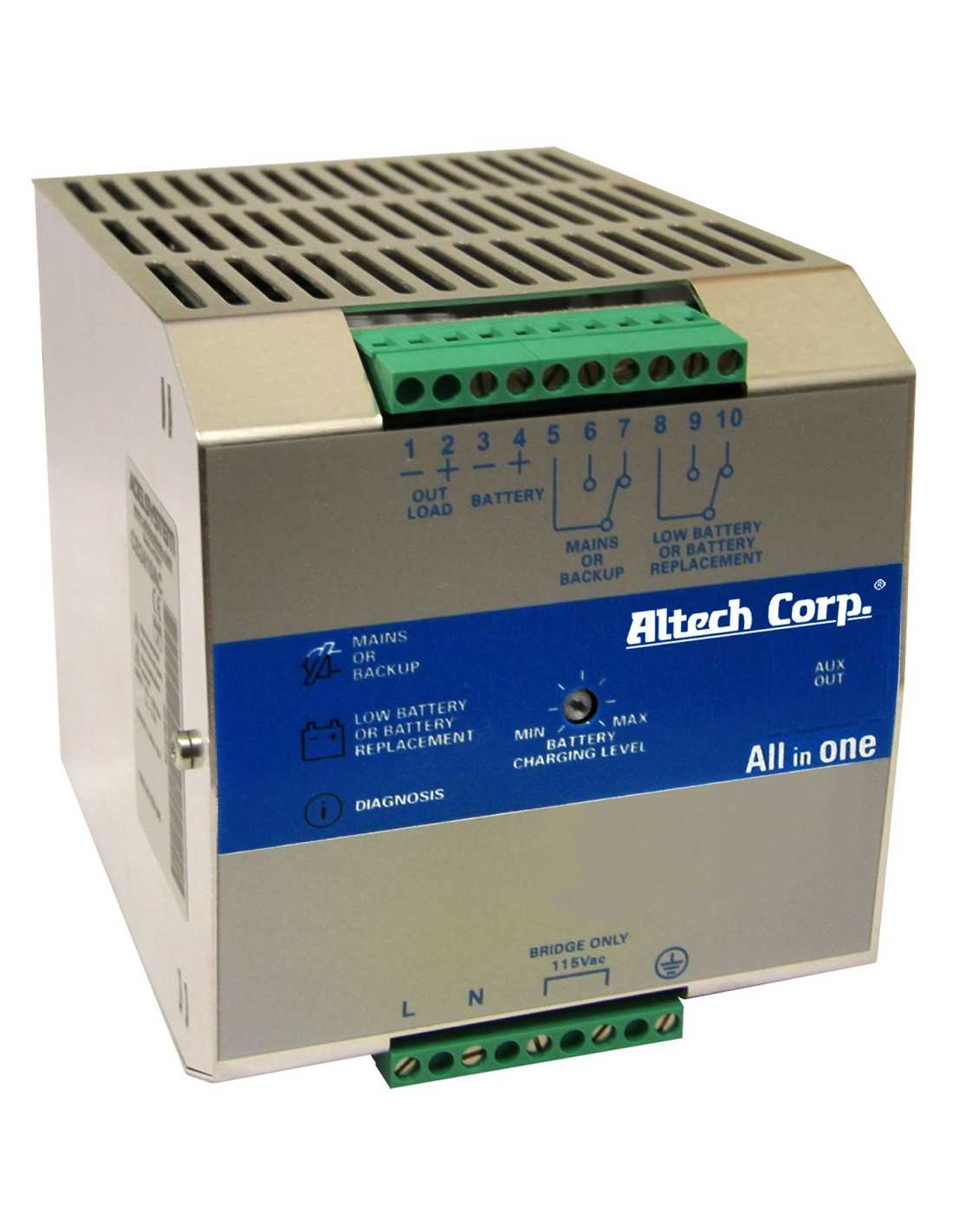

DC UPS : 240W : CBI2410A/S
Input:
Single-phase 115 - 230 - 277 VAC
Suited for the following battery types:
- Open Lead Acid
- Sealed Lead Acid
- Lead Gel
- Li-Ion and Ni-Cd (option)
Features:
- Automatic diagnostic of battery status
- Always ON; Zero switch over time
- Switching technology
- Three charging levels: Boost, Trickle, Recovery
- Protected against short circuit, inverted polarity, over load
- Signal output (contact free) for fault battery state
- installed on 35 mm DIN rail
- Protection degree IP20
- Type
- DC UPS
- Series
- CBI
- Input (VAC)
- 115-230-277
- Housing Material
- Metal
- Mounting Type
- DIN Rail
- Power (W)
- 240
- Input Range (VAC)
- 90-305
- Input Type
- Universal
- Current (A)
- 10
- Output (VDC)
- 24
- Enclosure Type
- Standard
- Number of Output
- 1
- Efficiency
- 83
- Operating Temperature
- -25° to 70°F
- Certifications
- UL
- ROHS
- yes
- ReaCh
- yes
CBI2410A/S
