    Simple Monitoring Device for your business.

    No Subscription • No License

    Click for datasheet.

    Click for PDF catalog file.

    Click here for full Manual.

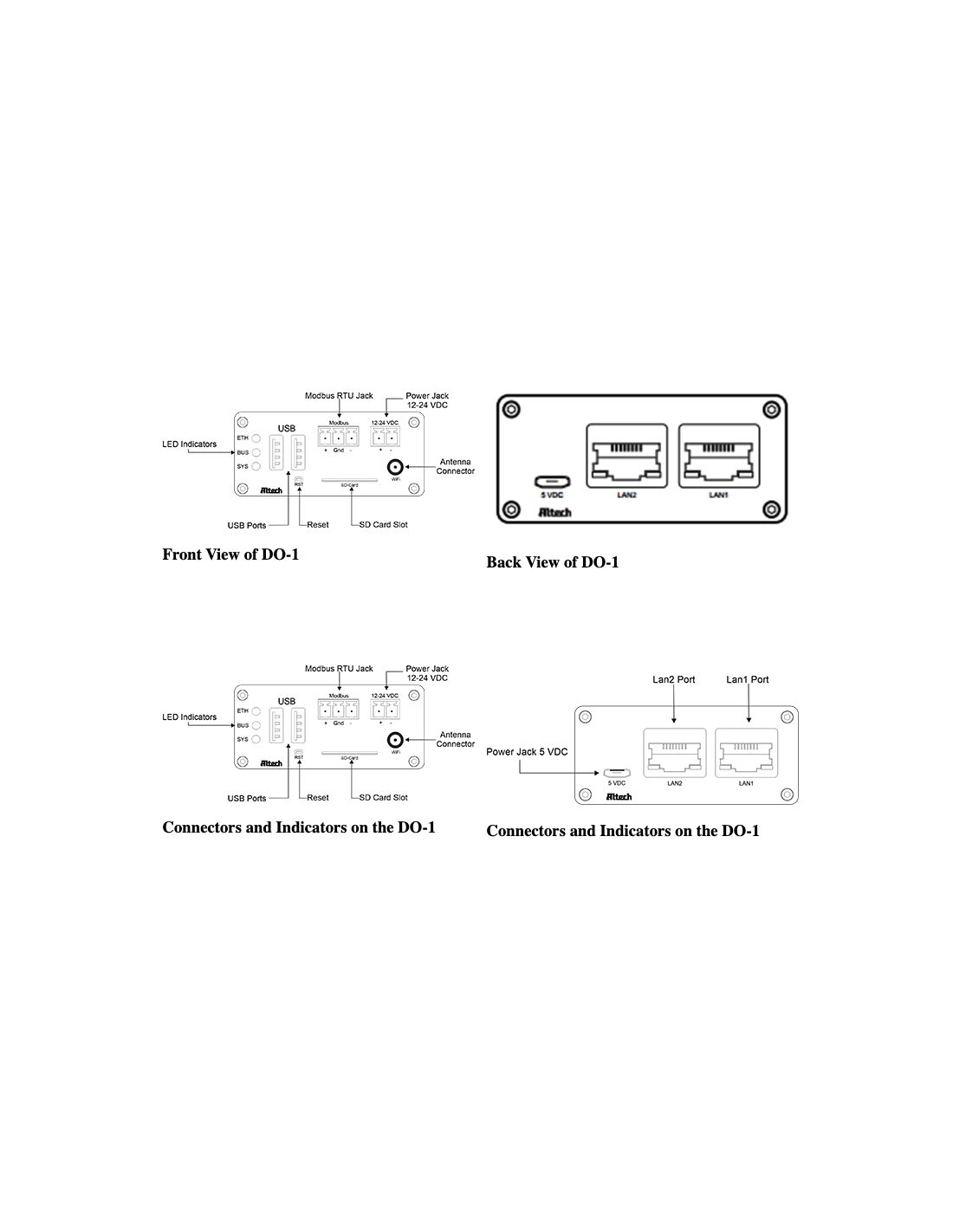

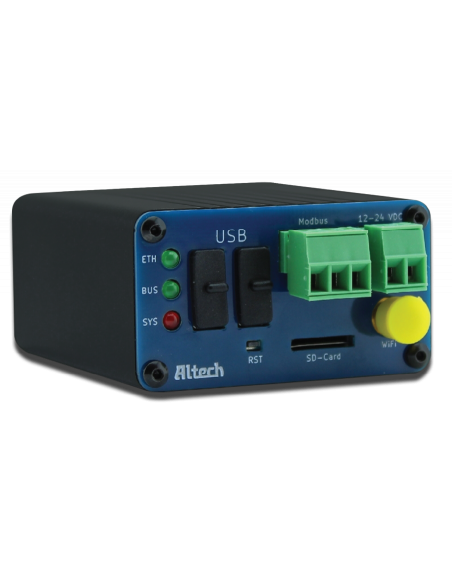

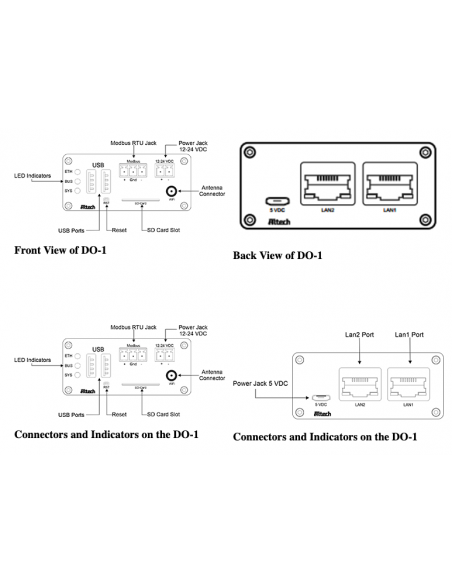

     DO-1-DR with DIN Rail Mount - Detail Information

    ComponentDescription
    LED ETHLights up green when the connection to the Ethernet network is established
    LED BUSFlashes green in time with the bus cycle time of the internal Modbus
    LED SYSFlashes red when the DO-1 is in operation
    USBUSB ports are provided for future use
    Modbus RTU JackConnection of the Modbus RTU devices to the internal Modbus of the DO-1
    12-24V DC Power JackMain power supply of the DO-1, 12-24V DC voltage
    Antenna ConnectorWiFi antenna connection possibility provided for later use
    SD Card SlotFor SD cards up to 128 GB
    ResetCauses a software restart after an operation of 5 seconds



    Simple Monitoring Device for your business

    Features

    • DIN Rail Mountable
    • Monitoring / alerting / data collecting / analyzing / diagnosing
    • Universal application at low cost

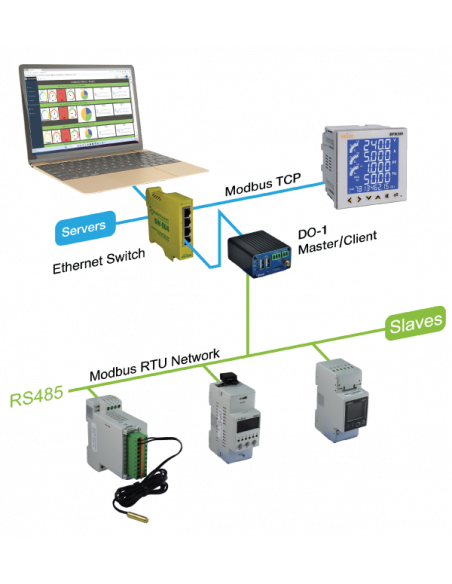

    • Monitoring up to 128 Modbus RTU / TCP devices
    • Web based software included
    • Do-it-yourself - easy configuration
    • Individual Dashboard creation
    • Includes MODBUS addresses of Selec products
    • Individual alert or event settings with email notifications
    • Extract filters for data to Excel or cvs files
    • Realtime clock with 30 days battery backup
    • Dual power input
    • 5GB internal data storage / 128GB external
    • Compact design, with DIN rail adapter (optional)
    • WiFi and Bluetooth connection (optional)
    • Custom features or functions on request
    • German engineered, assembled in Mexico
    DO-1-DR
