Universal Monitor DO-1 for Modbus
Simple Monitoring Device for your business.
No Subscription • No License

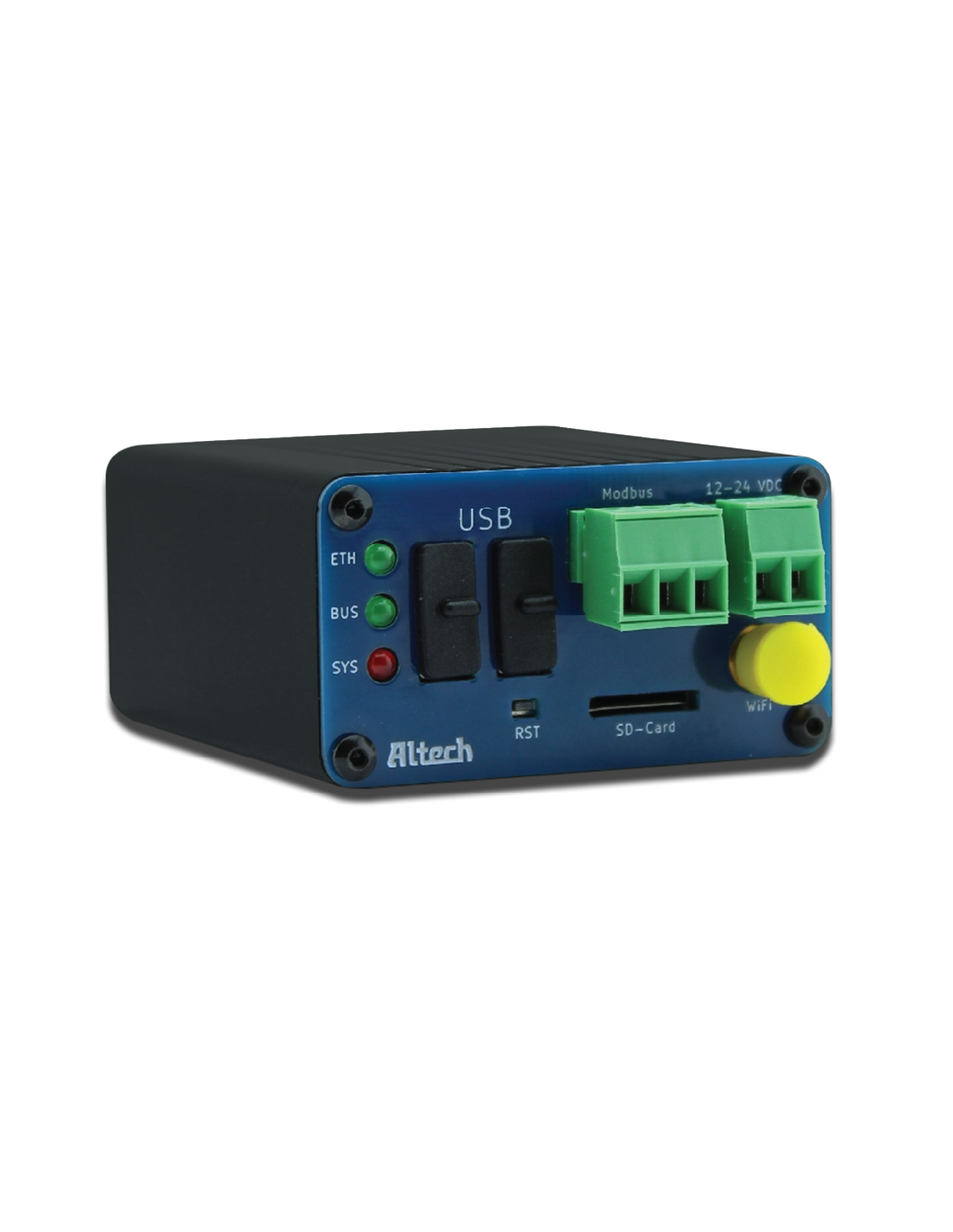

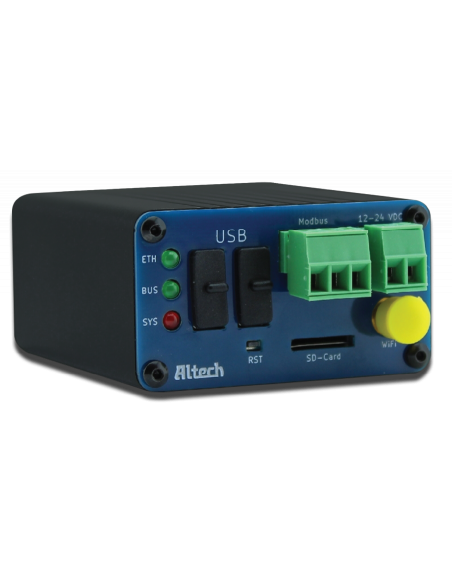

DO-1 Detail Information | |

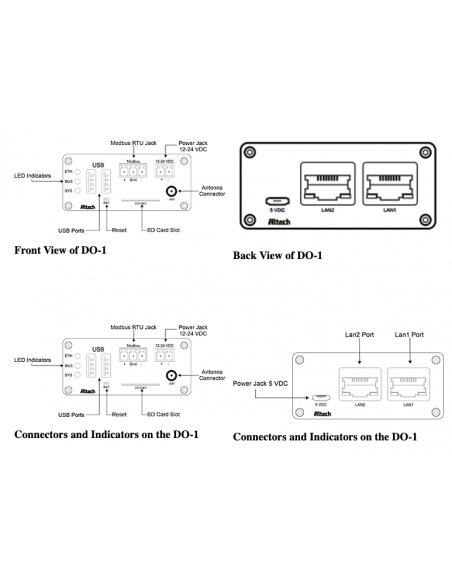

| Component | Description |
| LED ETH | Lights up green when the connection to the Ethernet network is established |
| LED BUS | Flashes green in time with the bus cycle time of the internal Modbus |
| LED SYS | Flashes red when the DO-1 is in operation |
| USB | USB ports are provided for future use |
| Modbus RTU Jack | Connection of the Modbus RTU devices to the internal Modbus of the DO-1 |
| 12-24V DC Power Jack | Main power supply of the DO-1, 12-24V DC voltage |
| Antenna Connector | WiFi antenna connection possibility provided for later use |
| SD Card Slot | For SD cards up to 128 GB |
| Reset | Causes a software restart after an operation of 5 seconds |
Simple Monitoring Device for your business
Features
- Monitoring / alerting / data collecting / analyzing / diagnosing
- Universal application at low cost

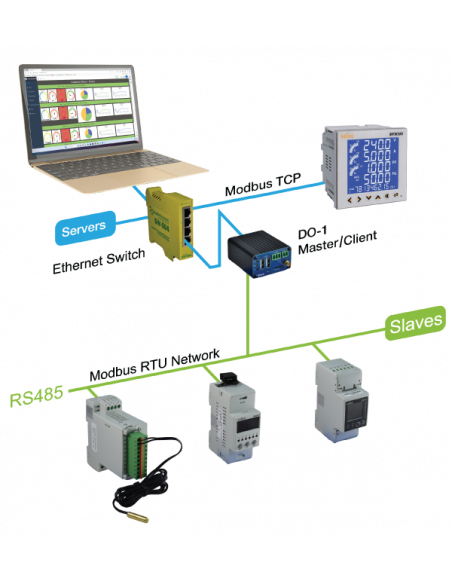

- Monitoring up to 128 Modbus RTU / TCP devices
- Web based software included
- Do-it-yourself - easy configuration
- Individual Dashboard creation
- Includes MODBUS addresses of Selec products
- Individual alert or event settings with email notifications
- Extract filters for data to Excel or cvs files
- Realtime clock with 30 days battery backup
- Dual power input
- 5GB internal data storage / 128GB external
- Compact design, with DIN rail adapter (optional)
- WiFi and Bluetooth connection (optional)
- Custom features or functions on request
- German engineered, assembled in Mexico
DO-1
