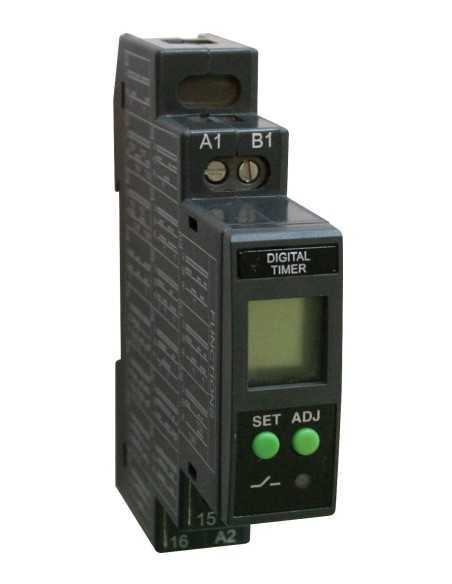

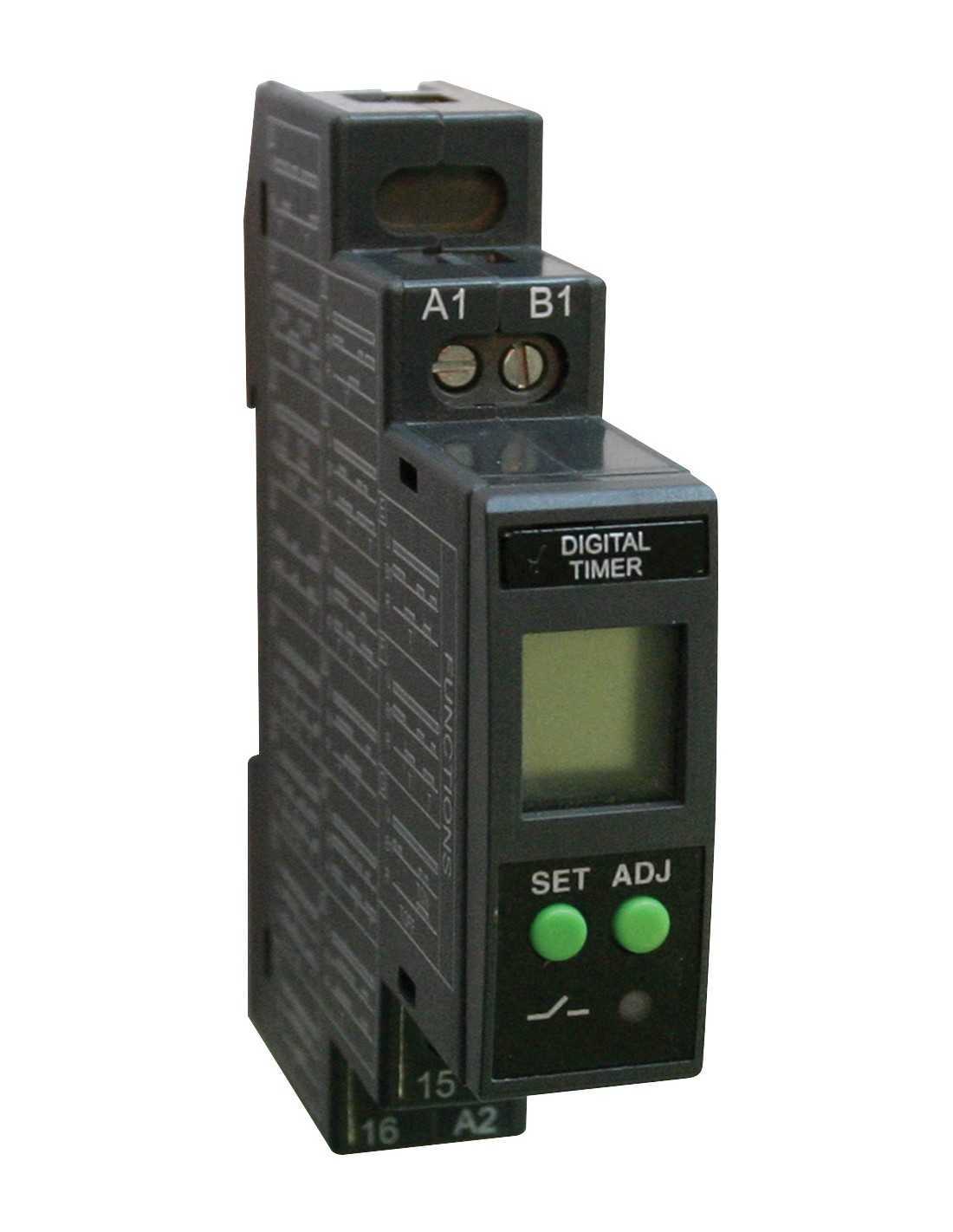

AMT8-D2 - Universal Digital Multi-Timer

Name: AMT8-D2 - Universal Digital Multi-Timer
Brand: Altech Corp
SKU: AMT8-D2

Part Number AMT8-D2

Universal Digital Multi-Timer

Altech's AMT-Series of Universal Digital Multi-Timers comprises 4 models featuring 8 or 18 timer functions to offer highest flexibility in controlling operations. The time range is adjustable from 0.1 s to 999h. An LCD display shows current run time information.

Features

Multifunctional Timer (8 or 18 Functions)
Universal Voltage 24-265 VACI DC
Wide Time Range: 0.1 s - 999h
3 Digit LCD Display for Preset Time and Run Time
DIN Rail Mounted

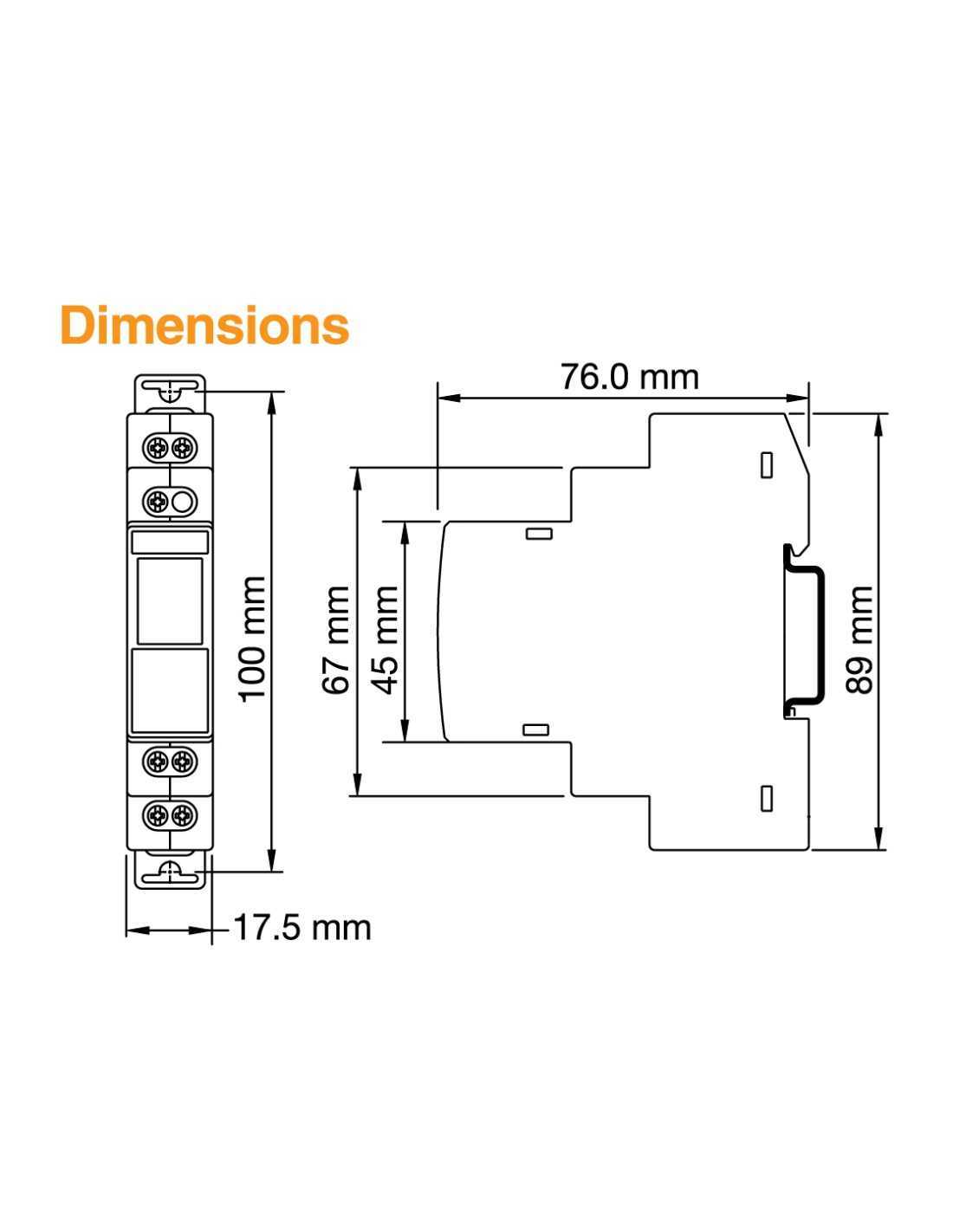

17.5mm Width

Downloads:

• Data Sheet

Product Details
Reviews (0)

Digital Timers - Output Contacts: 2 NO
Digital Timers - No. of Timer Functions: 8
Digital Timers - Supply Voltage: 24 - 265 VACI DC (50, 60Hz)
Digital Timers - Power Consumption: 10VA max.
Digital Timers - Timing Range: 0.1s ~ 999h
Digital Timers - Reset Time: 200ms max.
Digital Timers - Repeat Accuracy: Repeat Accuracy:+-0.5%
Digital Timers - Timing Accuracy: +/- 0.01%
Digital Timers - Output Contact Rating: 8A @ 240V AC / 5A@240V DC (resistive)
Digital Timers - Electrical Life: 10,000 switching cycles
Digital Timers - Mechanical Life: 2,000,000 switching cycles
Digital Timers - AC-15 Rating: Rated Voltage (Ue): 125/ 240V, Rated Current (le): 3/1.5A
Digital Timers - DC-13 Rating: Rated Voltage (Ue): 125/ 250V, Rated Current (le): 2/0.22/0.1 A
Digital Timers - Operating Temperature: -10°C - +55°C (+14°F - 131°F)
Digital Timers - Storage Temperature: -20°C - +65°C (-4°F - 149°F)
Digital Timers - Weight: 85g (0.14Ib.)
Digital Timers - Protection: IP30 (Enclosure), IP20 (Terminals)
Digital Timers - Torque: 0.40 Nm (3.5 lb.in.)
Digital Timers - Terminal Wire Size: 0.3-2.5 mm2 (22-14 AWG)
