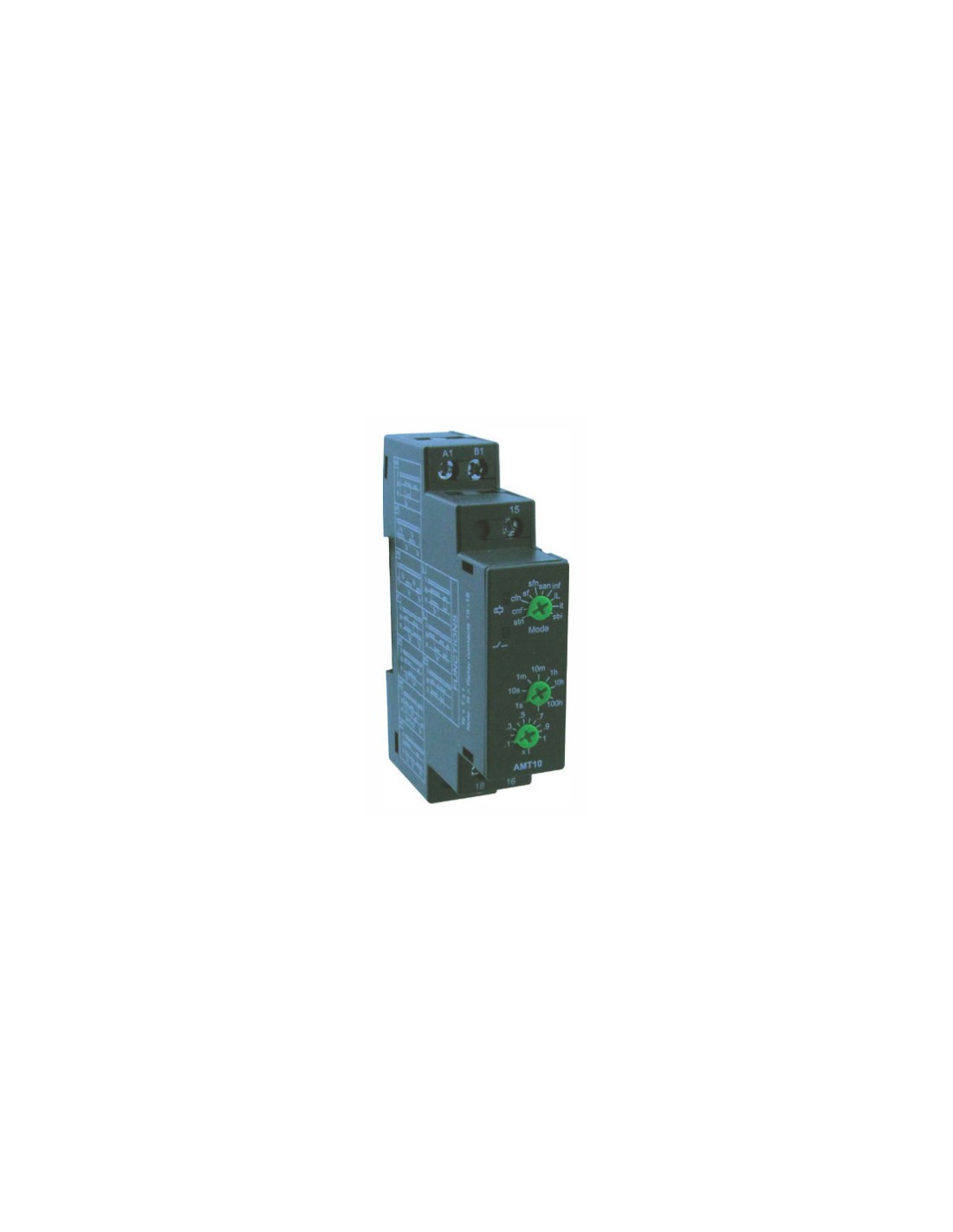

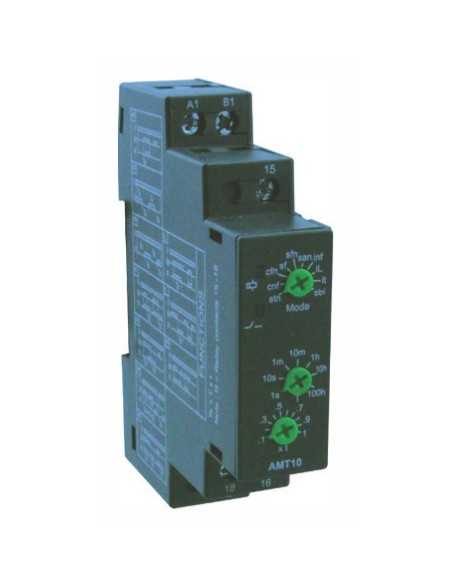

AMTAS-S1 - Universal Multi-Timer
AMTAS-S1
Universal Multi-Timer
Altech's Universal Multi-Timers comprises 2 models featuring 2 or 10 timing functions to offer highest flexibility in controlling operations. The time range is adjustable from 0.1s to 100h. Dials on the front make it easy to use.
Features
- Multifunctional Timer (10 Functions)
- Asymmetric Timer (2 Functions)
- Universal Voltage 12-265V AC/ DC
- Wide Time Range: 0.1 s - 100h
- LED Indicator for Power and Relay Status
- DIN Rail Mounted

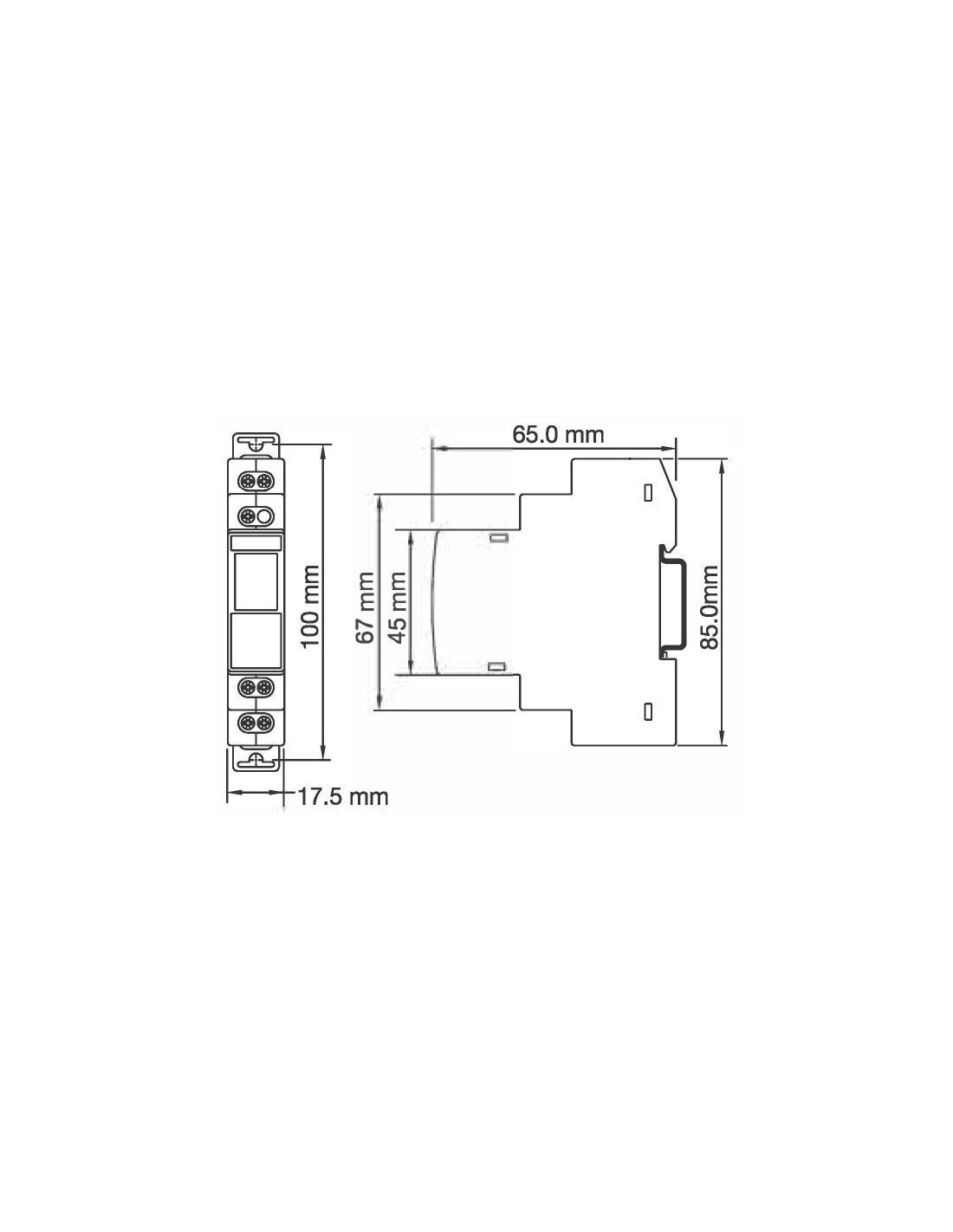

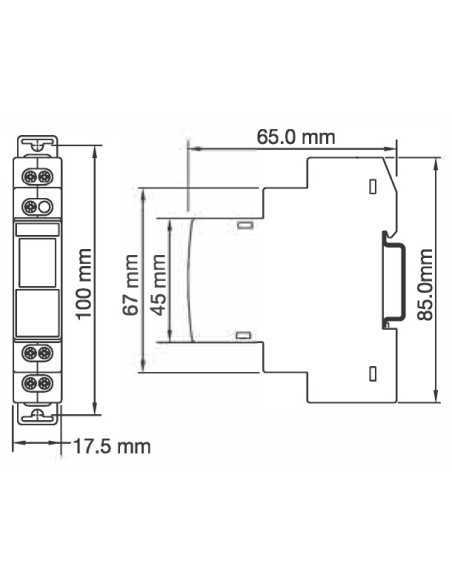

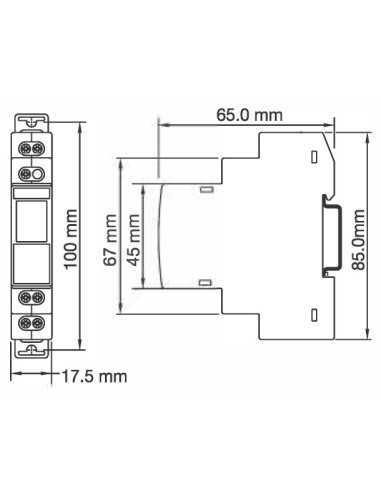

- 17.5mm Width
Downloads:
• Data Sheet
- Digital Timers - Output Contacts
- 1 C/0
- Digital Timers - No. of Timer Functions
- 2
- Digital Timers - Supply Voltage
- 12 - 265 VACI DC (50, 60Hz)
- Digital Timers - Power Consumption
- 2 VA max.
- Digital Timers - Timing Range
- 0.1s -100h
- Digital Timers - Reset Time
- 200ms max.
- Digital Timers - Repeat Accuracy
- 1.00%
- Digital Timers - Output Contact Rating
- 8A @ 240V AC / 5A@240V DC (resistive)
- Digital Timers - Electrical Life
- 10,000 switching cycles
- Digital Timers - Mechanical Life
- 1,000,000 switching cycles
- Digital Timers - AC-15 Rating
- Voltage (Ue): 125/ 240V, Current (le): 3/1.5A
- Digital Timers - DC-13 Rating
- Voltage (Ue): 125/ 250V, Current (le): 2/0.22/0.1 A
- Digital Timers - Operating Temperature
- -10°C -+60°C (+14°F -131°F)
- Digital Timers - Storage Temperature
- -15°C -+70°C (-4°F -149°F)
- Digital Timers - Weight
- 70g (0.14Ib.)
- Digital Timers - Protection
- IP30 (Enclosure), IP20 (Terminals)
- Digital Timers - Torque
- 0.60 Nm (6 lb.in.)
- Digital Timers - Terminal Wire Size
- 0.3-2.5 mm2 (18-10 AWG)
