Tower Lights

Altech Tower Lights offer bright, reliable visual signaling—LED, stackable, multi-color, and IP65-rated for industrial machine status and safety alerts.

Bright, reliable status indication for industrial applications

Altech’s signaling devices deliver bright, reliable status indication for industrial environments. The Tower Light Series features modular, stackable LED segments with steady, flashing, or rotating modes, optional 80 dB buzzers, and IP65 protection for voltages from 24 V AC/DC to 240 V AC. The sleek IF Series Multi-Color LED Lights provide up to seven colors from a single compact unit, offering space-saving, energy-efficient performance. Together, they ensure clear, durable, and versatile signaling across automation and process applications.

Features

  • Sleek & Stackable Design
  • SMD LED technology
  • Uniform & bright illumination
  • Continuous, Flashing and Rotary Integrated LED Light Modules available
  • Flexibility to upgrade from Single LED Unit to multiple LED Units
  • IP65 protection | Wide voltage range from 24V AC/DC to 240V AC
  • Optional feature of Buzzer with dual sound mode - continuous & intermittent with 80 DB output

Click Here for Catalog

Click Here for Signaling Brochure

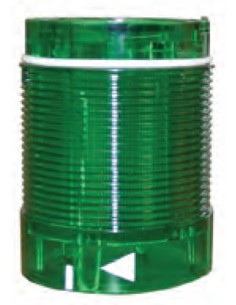

Tower Light Series

IF Series Multi-Color LED Lights

Signaling Devices

  • Modular, stackable LED segments in steady, flashing, or rotating modes
  • Optional 80 dB buzzer for visual and audible alerts
  • IP65 protection and voltage options from 24 V AC/DC – 240 V AC
  • Displays up to seven colors from a single compact housing
  • Space-saving, vibration-resistant design for modern control panels
  • Bright, energy-efficient LEDs for long life and low maintenance
  • Clear, reliable status indication for machines and process systems
  • Flexible configurations for automation, assembly, and safety applications
  • Durable construction built for industrial environments

NEW IF-SERIES - SPECIFICATION PAGES LINK

NEW SIGNALING DEVICE - SPECIFICATION PAGE LINK

Technical Information
Outer Diameter
Degree of Protection
LED Type
Lens Color
Luminous Mode
Buzzer Color
Buzzer Sound Level
Sounding Mode
Voltage Range
Limit of Operating Voltage
Operating Temperature
Surge Test
HV Test for 60 Seconds
Current Rating		Ø50mm
IP65 & UL (1 | 2 | 3 | 3R | 4 | 4X | 12 | 13)
SMD
Red / Green / Amber / Blue / White
Continuous, Blinking & Revolving
Black
80dB ± 5dB
Continuous & Intermittent
24V AC/DC, 120V AC, 240V AC
±10% of rated voltage
-30°C to 60°C
2 KV
1.5 KV
20-40mA for 24V AC/DC
10-20mA for 120V AC & 240V AC
Tower Lights

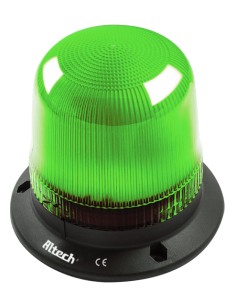

    IT120G02 4- Green Beacon Signaling LED Light, 12-24V AC/DC

    IT120G02 4
    Green Beacon Signaling LED Light, 12-24V AC/DCFireproof plastic bodyPolycarbonate lensBase and wall-mountUnaffected by water, dust, heat and U V.Wear-free due to the absence of moving componentsLong lifeMelody and Silent mod e. (for Buzzer models)7 LED modesIP 65 rating Click for Data Sheet...
