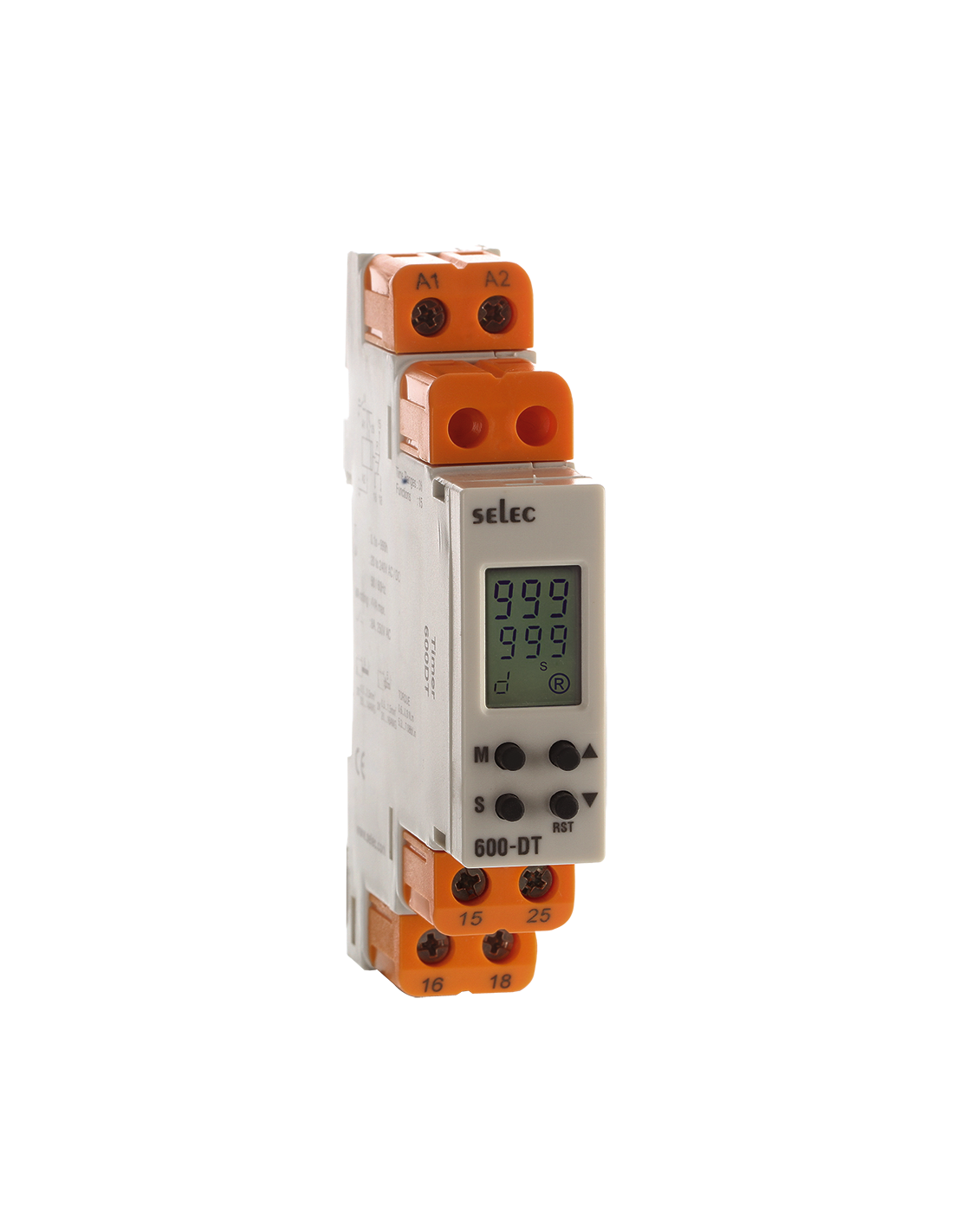

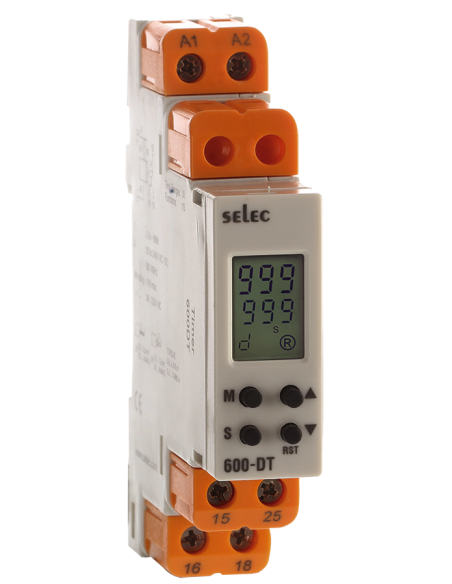

600DT-CU - Digital Multifunction Timer
600DT-CU
600DT-CU - Digital Multifunction Timer
17.5mm DIN Rail
Features
• 15 Functions
• 8 Time Ranges, Seconds/Minutes/Hours
• Front Key Pad Setting
• Universal supply voltage
• Slim, Space Saving Design
• DIN Rail Mount

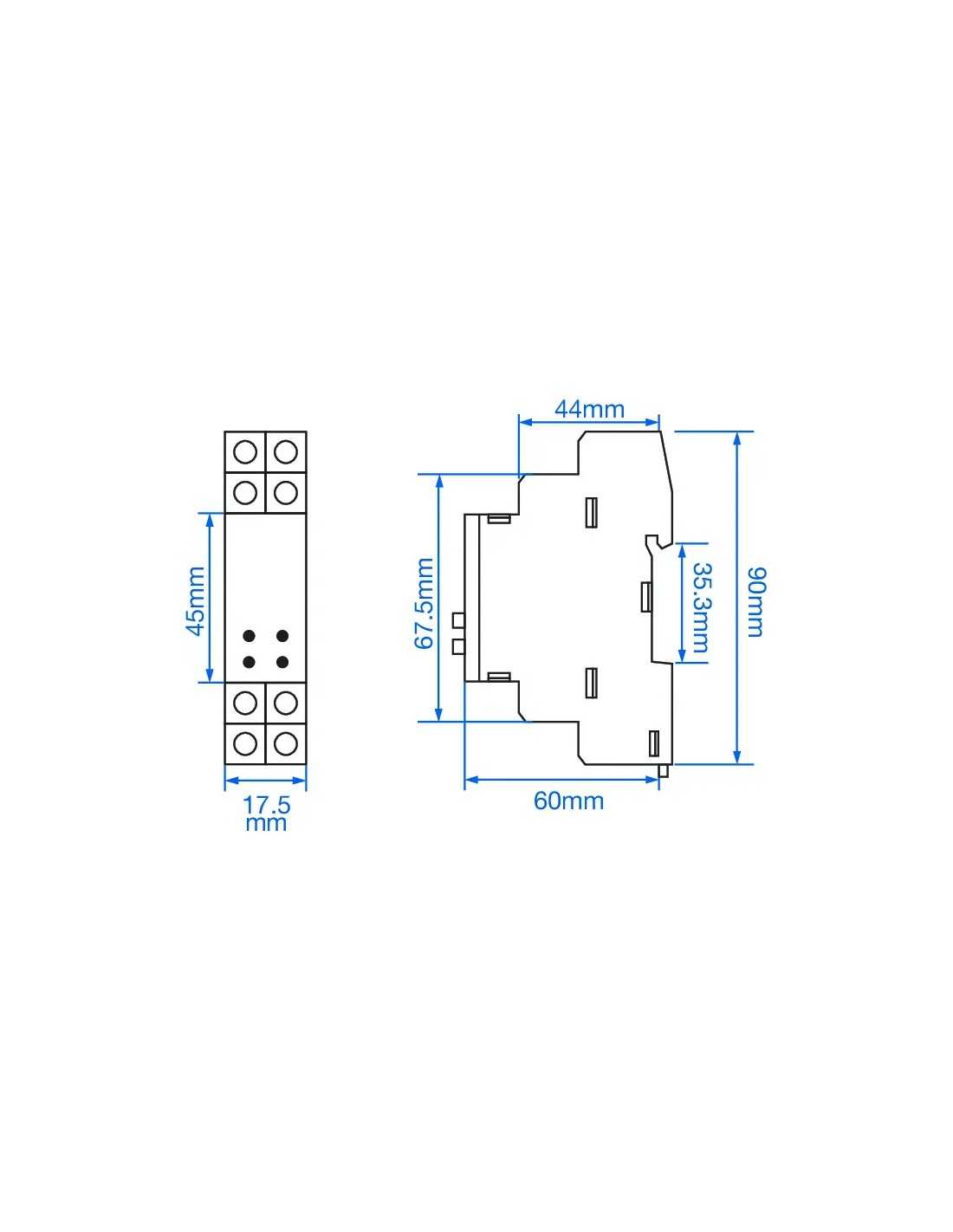

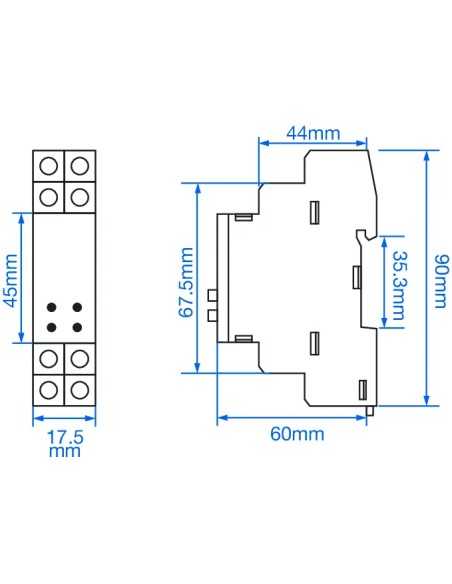

• Size: 17.5 mm (width)
DATA Sheet Link
< Product photo may vary depending on part number selection.
Analog / Digital Protection Relays
Protection
Altech is pleased to offer a variety of protection relays covering:
Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring
Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.
- Process Controllers - Supply Voltage
- 12–240V AC/DC
- Process Contollers - Input Voltage
- 20-240V AC/DC (50/60Hz)
- Process Controllers - Main Output
- SPDT - 1C/O - 8A @ 250V AC
- Process Controllers - Reset
- Front key, on interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 4VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 69 grams (.152 lbs)
- Process Controllers - Display Type
- Liquid Crystal Display
- Process Controllers - Digits
- 3 rows of 3 digits
- Process Controllers - Resolution
- Decimal point position selectable 1/0.1 sec
- Process Controllers - Protection Level
- IP40 (for casing) IP20 (for terminals)
- Process Controllers - J, K,T / TC INPUTS*

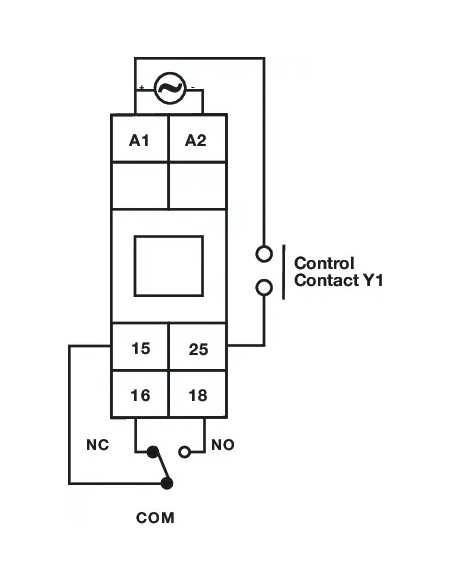

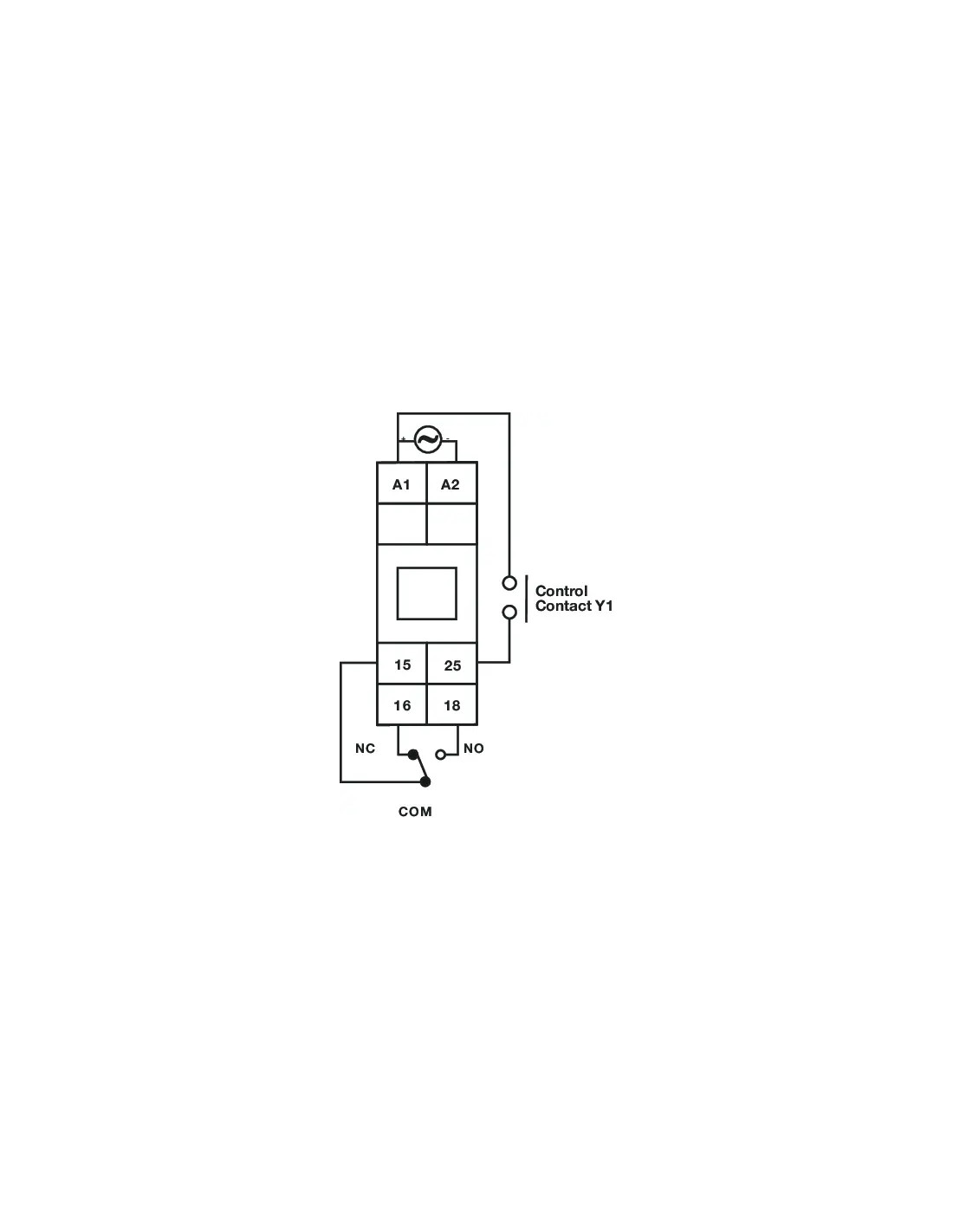

- Setting: +/- 0.1% of set time or +/-50m sec For Y contact operation: +100m sec Repeat +/- 0.1%
- Process Controllers - Modes
- On delay / Interval / Asymmetrical cyclic equal OFF first / Asymmetrical cyclic equal ON first / Cyclic equal OFF first / Cyclic equal ON first / Pulse output / Delay on break *See rest on data sheet
- Process Controllers - Counting Direction
- Down
- Process Controllers - Memory
- Yes (Selectable)
- Process Controllers - Time Ranges
- 0-99.9 sec/min/hr / 0-99.9 sec/min/hr / 0-9:59 min: sec / 0-9:59 hr:min
