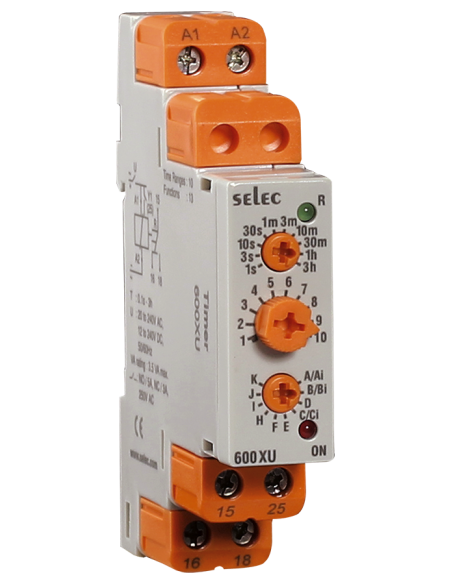

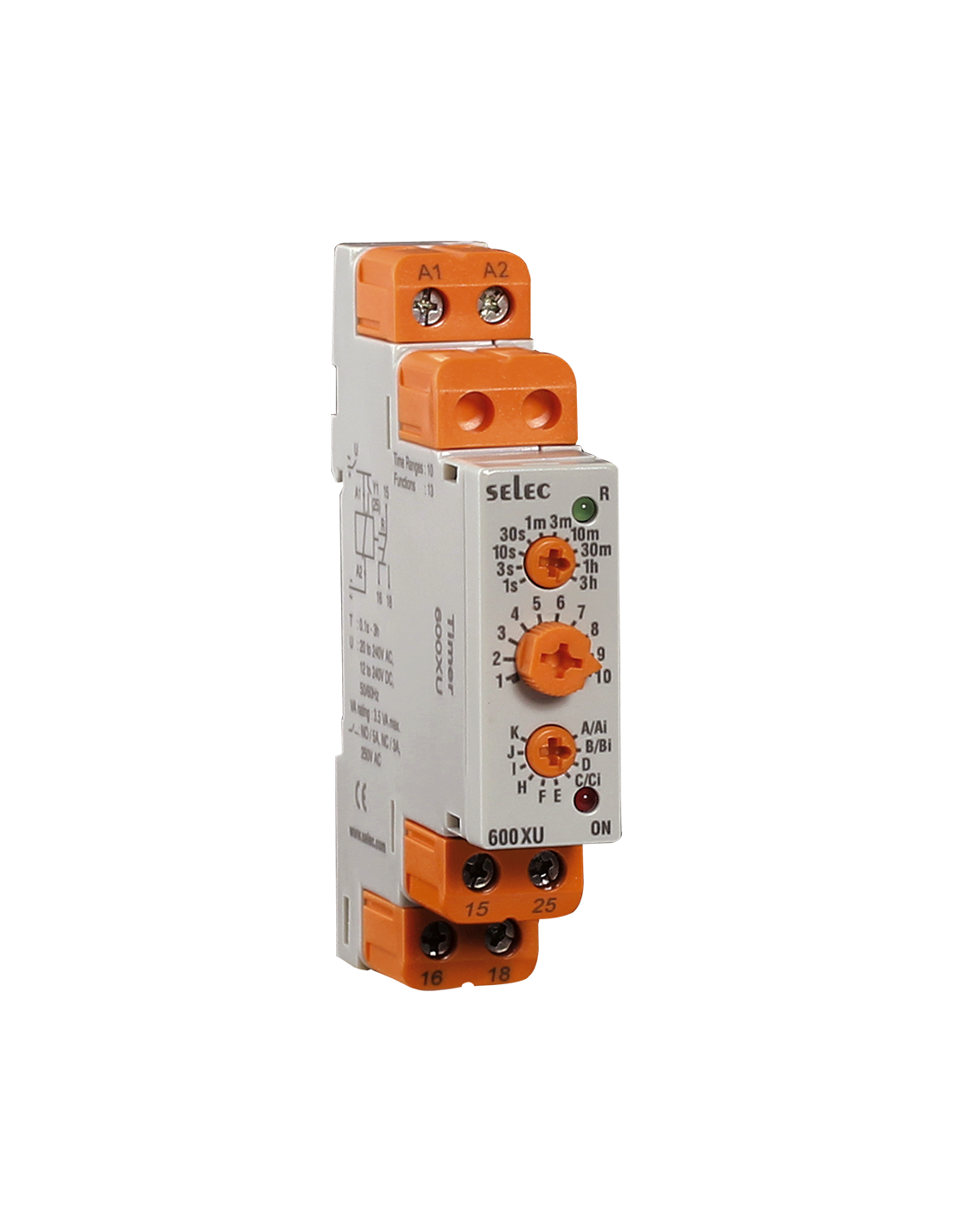

600XU - Analog Multifunction Timer
600XU
600XU - Analog Multifunction Timer

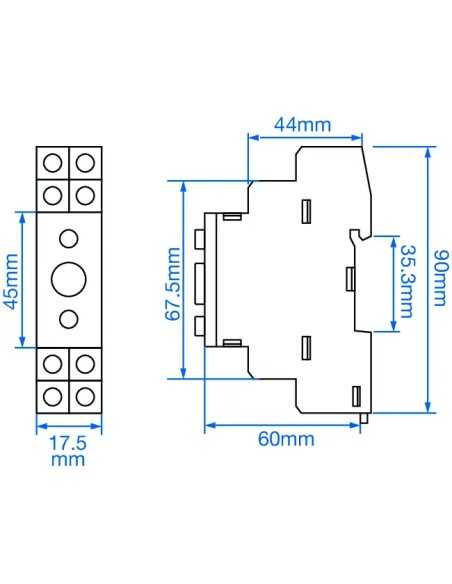

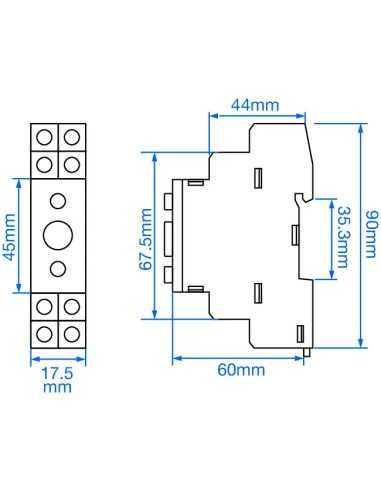

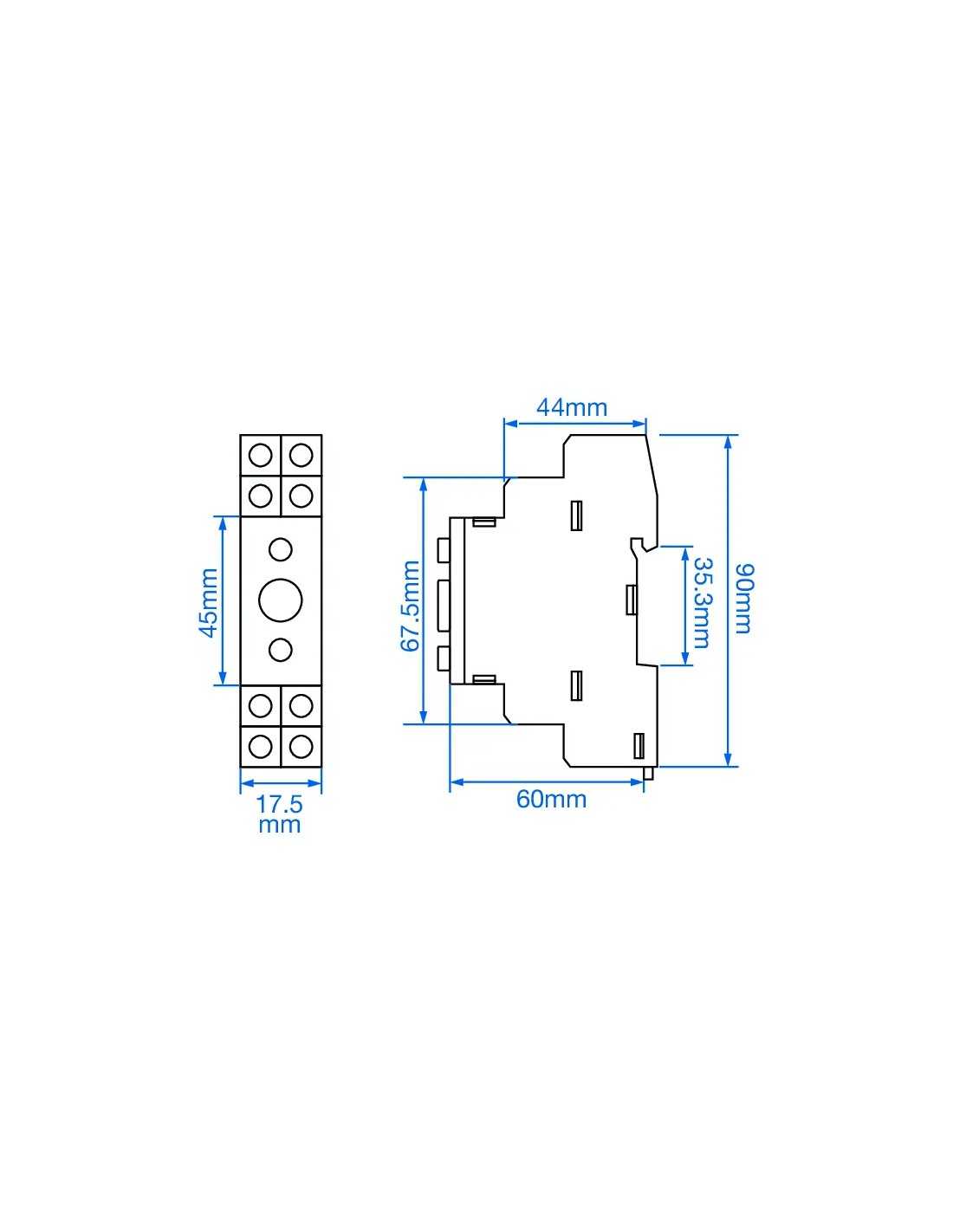

17.5mm DIN Rail
Features
• 13 Timing Modes – broader than most DIN rail timers in this class.
• Universal Voltage (12–240V AC/DC) – simplifies inventory and sourcing.
• Front Dial Interface – no DIP switches or programming needed.
• Compact DIN Rail Mount – 17.5 mm slim profile saves panel space.
• Industrial Certifications – CE and UL listed for trusted reliability.
• 10 timing ranges Seconds/Minutes/Hours for a max up to 30 hours
DATA Sheet Link
< Product photo may vary depending on part number selection.
Analog / Digital Protection Relays
Protection
Altech is pleased to offer a variety of protection relays covering:
Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring
Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.
- Process Controllers - Supply Voltage
- 12–240V AC/DC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay
- Process Contollers - Input Voltage
- 20-240V AC (50/60Hz) and 12-240V DC
- Process Controllers - Main Output
- SPDT -1C/O - NO/5A, NC/3A@250V AC
- Process Controllers - Reset
- Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 3.2VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 64 grams (.141 lbs)
- Process Controllers - Display Type
- Analog Timer
- Process Controllers - Modes
- On delay / Interval / Cyclic equal OFF first / Cyclic equal ON first / Pulse output, 500m sec fixed / Delay on break / Delay on make / Delay on break / Interval after break / Single shot / Retriggerable single shot *See rest on data sheet
- Process Controllers - Time Ranges
- 0.1 - 1 sec / 0.3 - 3 sec / 1 - 10 sec / 3 - 30 sec 0.1 - 1 min / 0.3 - 3min / 1 -10min / 3 - 30min 0.1 - 1hr / 0.3 - 3hr
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.
