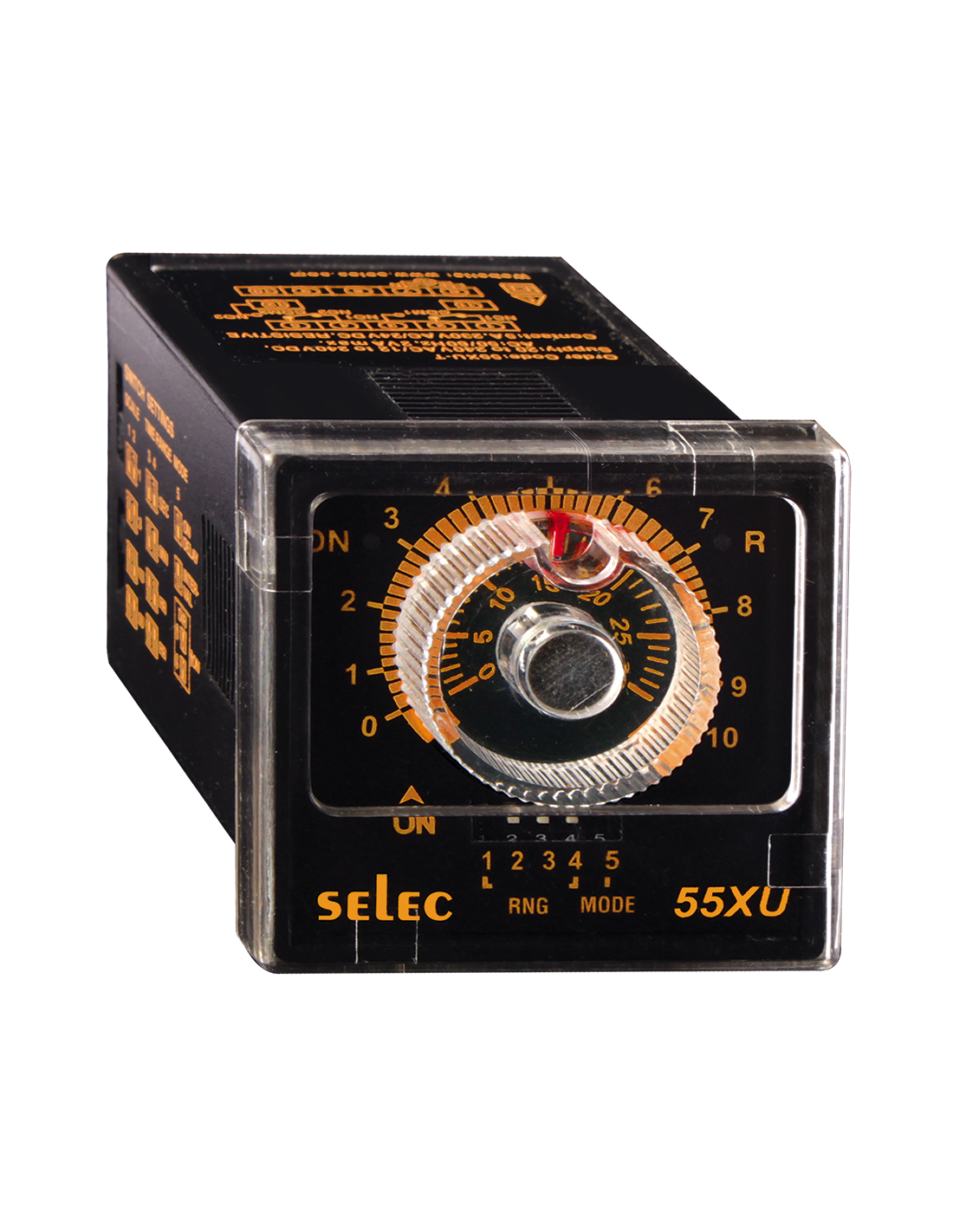

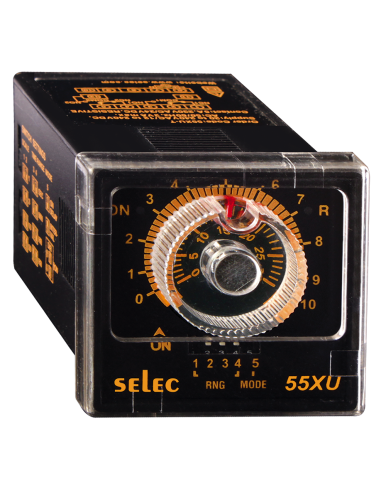

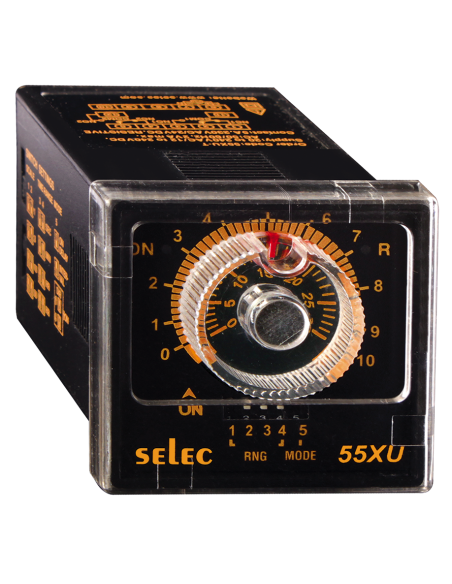

55XU-P8-CU - Analog ON-Delay / Interval Timer, DPDT
55XU-P8-CU
55XU-P8-CU - Analog ON-Delay / Interval Timer, DPDT
Panel Mount - Plug In
Features
• ON Delay / Interval
• 12 Time Ranges, Seconds/Minutes/Hours
• Universal Supply Voltage
• Compact Size

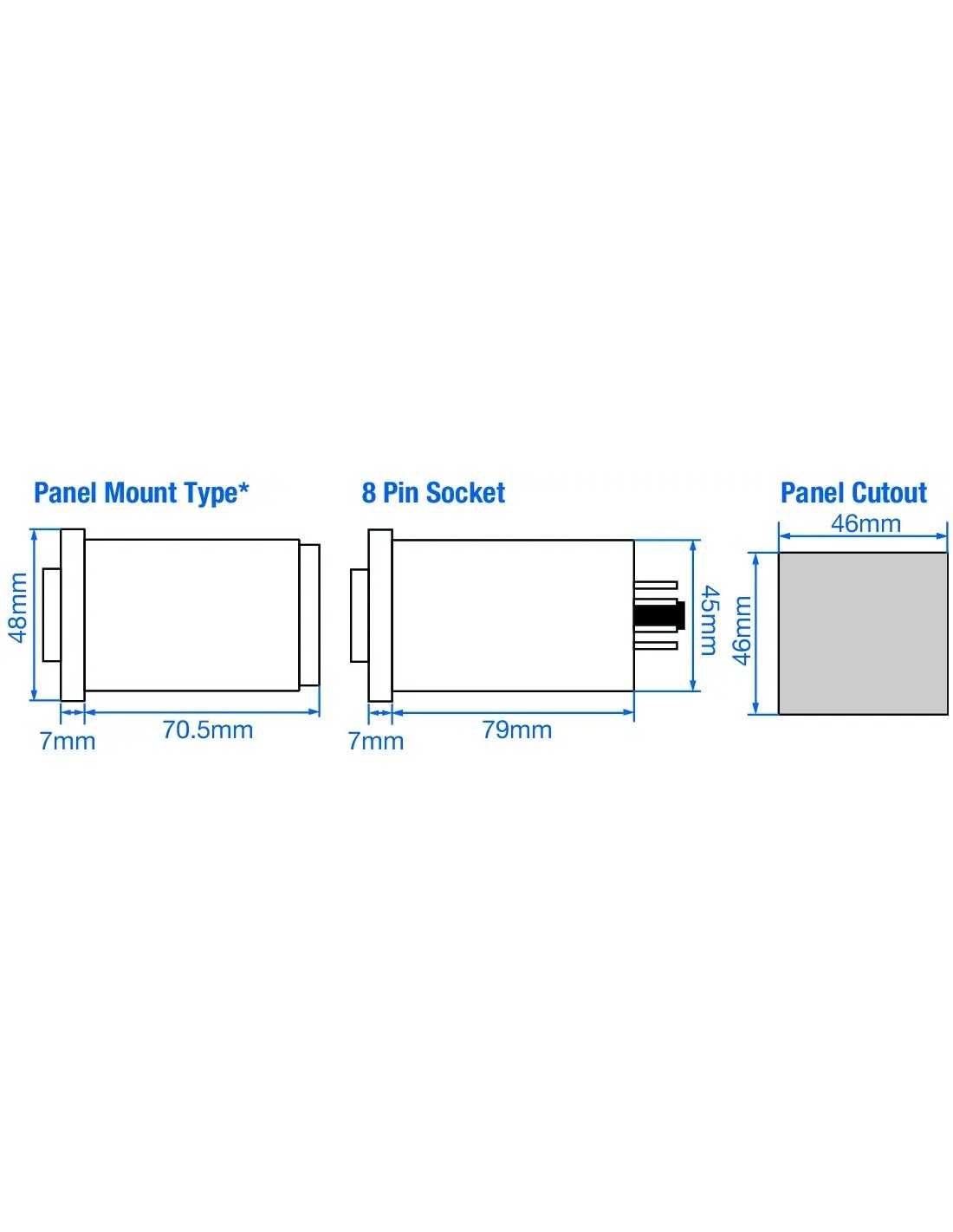

• Size: 1/16 DIN 48mm x 48mm
• Panel Mount / Plug-in Timer
DATA Sheet Link
< Product photo may vary depending on part number selection.
Analog / Digital Protection Relays
Protection
Altech is pleased to offer a variety of protection relays covering:
Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring
Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.
- Process Controllers - Supply Voltage
- 20 to 240V AC; 12 to 240V DC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay On
- Process Contollers - Input Voltage
- 20-240V AC (50/60Hz) and 12-240V DC
- Process Controllers - Main Output
- DPDT - 2 C/O - 5A @ 230V AC / 24 V DC, resistive
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 2VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 100 grams (.22 lbs)
- Process Controllers - Display Type
- Analog Timer
- Process Controllers - Set Points
- 2
- Process Controllers - Modes
- ON delay/interval
- Process Controllers - Time Ranges
- 0-1 sec/min/hr / 0-3 sec/min/hr / 0-10 sec/min/hr / 0-30 sec/min/hr
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.

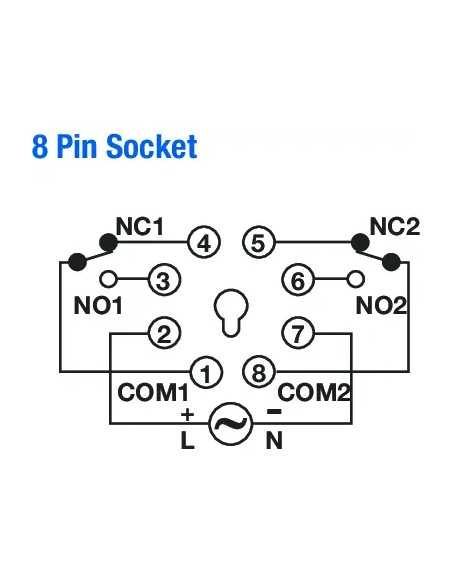

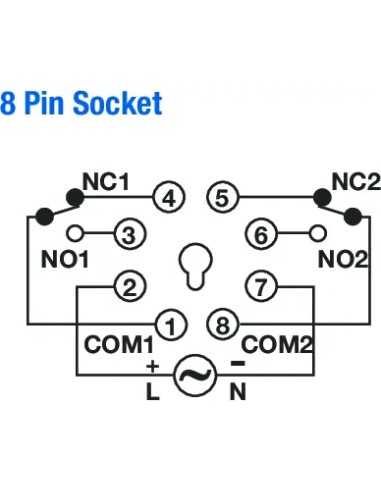

- Process Controllers - Terminal Connection
- 8 Pin*
