XTC5400-CU - Counter / Timer
XTC5400-CU
XTC5400-CU - Counter / Timer
7 Segment LED Display
Features
• Dual Display, 4 digit, 7 segment LED
• 2 Setpoints
• Programmable Input Scaling
• Down Counting for Timer, Up / Down Counting for Counter
DATA Sheet Link

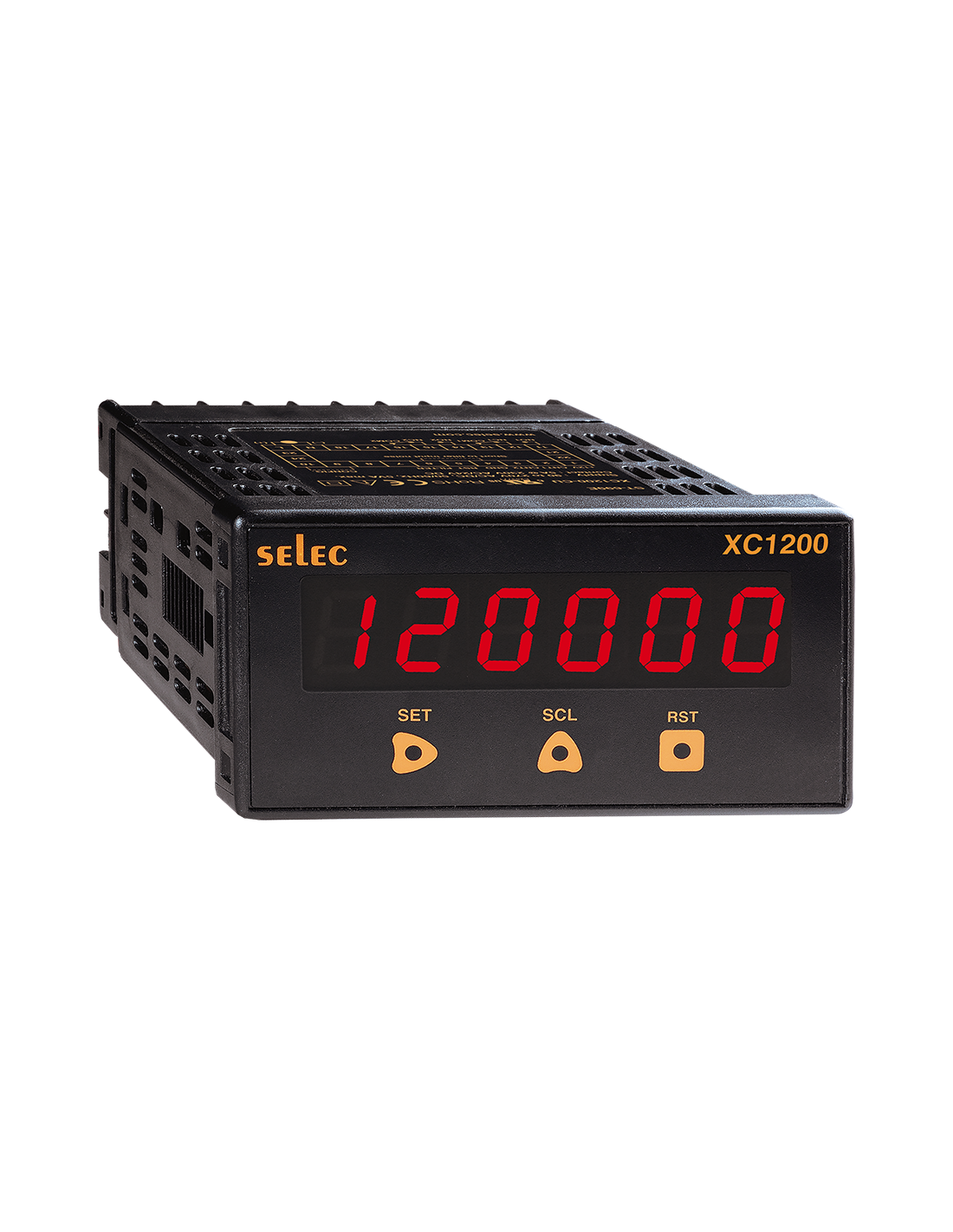

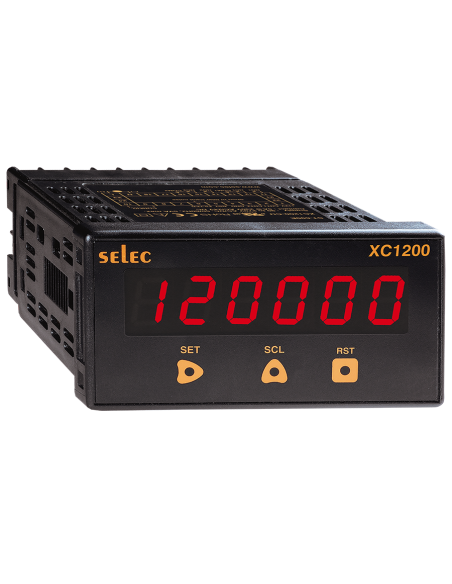

< Product photo may vary depending on part number selection.
Analog / Digital Protection Relays
Protection
Altech is pleased to offer a variety of protection relays covering:
Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring
Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.
- Process Controllers - Supply Voltage
- 90-270V AC/DC
- Process Controllers - LED Indication
- LED 1: Relay 1, LED 2: Relay 2, LED 3: sec., LED 4: Min., LED 5: Hrs.
- Process Contollers - Input Voltage
- 85-270V AC/DC (50/60Hz)
- Process Controllers - Input Measurement
- NPN/PNP
- Process Controllers - Main Output
- 2 SPST - 2NO - 5 @ 230V AC
- Process Controllers - Reset
- Front, Remote/ Power interruption (programmable)
- Process Controllers - Power Consumption
- 5VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 175 grams (.385 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Digits
- 2 rows of 4 digits
- Process Controllers - Set Points
- 2
- Process Controllers - Modes
- Timer : ON delay /Interval /Cyclic On first / Cyclic OFF first / Batch / Counter : ON delay /Interval / Auto reset, Time pulse repeat , Batch
- Process Controllers - Sensor Supply
- Inbuilt, 12V DC, 30mA
- Process Controllers - Input Type
- Voltage Pulse (3-30V DC) from proximity, switches, encoders, solid state devices, potential free contact
- Process Controllers - Input Speed
- A) 3Hz, B) 30Hz, C) 5kHz
- Process Controllers - Counting Direction
- Up, Down, Bidirectional, Quadrature
- Process Controllers - Memory
- 10 years
- Process Controllers - Scale Factor
- 0.00001-9.99999 X 10n , n equals -3, -2, -1, 0, 1, 2
- Process Controllers - Rate
- +/-.05% of Full Scale or 50m sec.
- Process Controllers - Time Ranges
- 0-99.99 sec 0-999.9 sec/min/hr 0-9999 sec/min/hr 0-99:59 min: sec 0-99:59 hr:min
- Process Controllers - Counter Range
- -999 to 9999 counts
