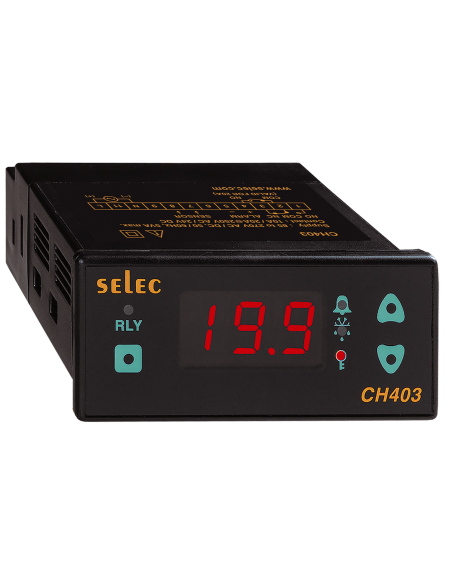

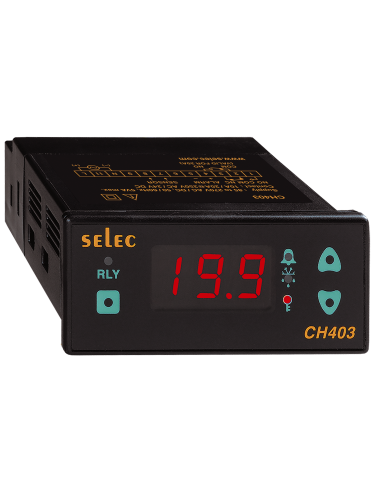

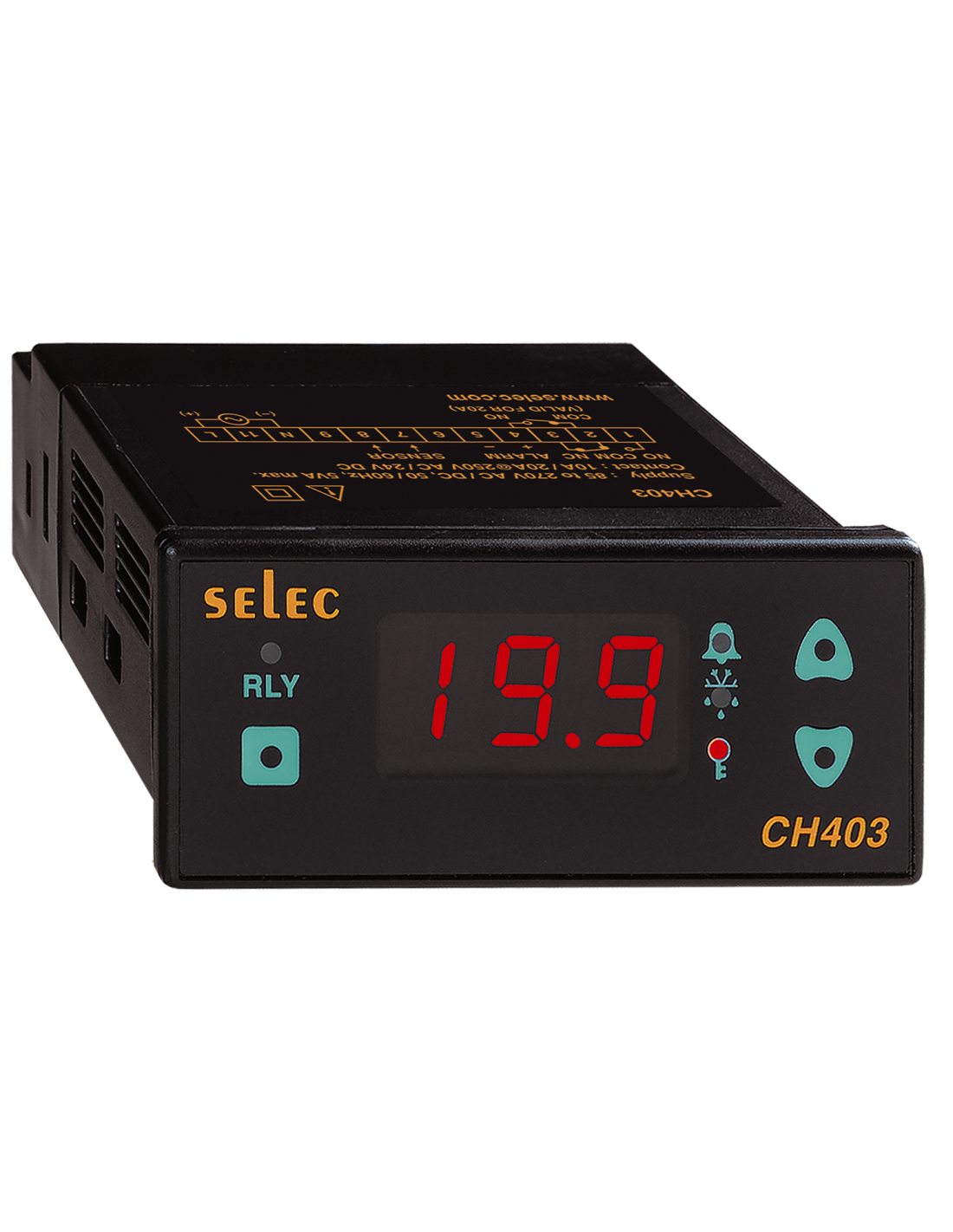

CH403-3-NTC-CU - Cooling Controller

Name: CH403-3-NTC-CU - Cooling Controller
Brand: Altech Corp
SKU: CH403-3-NTC-CU

Part Number CH403-3-NTC-CU

CH403-3-NTC-CU - Cooling Controller

7 Segment LED Display

Features

• 3 Digit 7, Segment LED

• °C / °F

• Defrost Management

• High and Low Temperature Alarm

• Up to 20A Relay Output

• Compact Size

• Easy to use

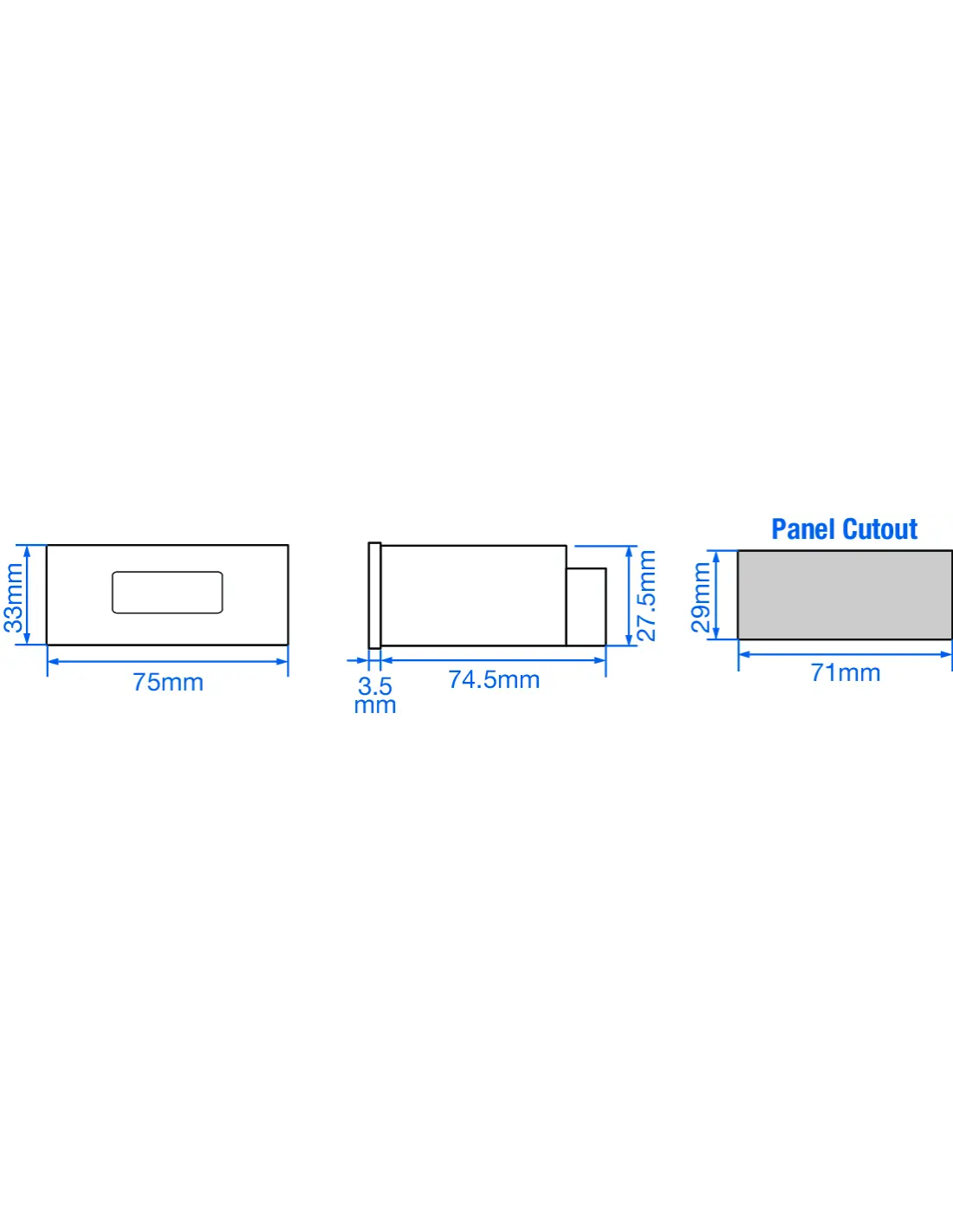

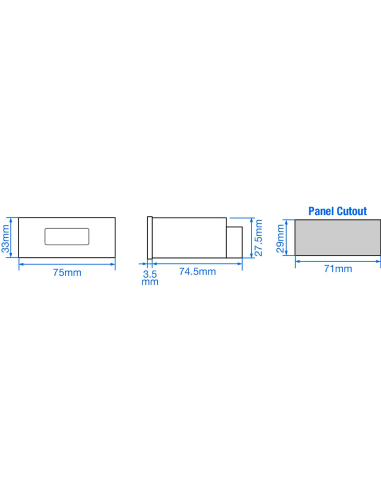

• Size: 36mm x 72mm

DATA Sheet Link

< Product photo may vary depending on part number selection.

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

Phase Monitoring
Voltage Monitoring
Current Monitoring
Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Process Controllers - Supply Voltage: 85-270V AC/DC
Process Controllers - LED Indication: Set point lock / Defrost / Relay ON / Alarm
Process Contollers - Input Voltage: 85-270V AC/DC (50/60Hz)
Process Controllers - Input Measurement: NTC probe
Process Controllers - Main Output: SPDT - 10A @ 230V AC, resistive Optional- SPST - 20A @ 230V AC, resistive (no alarm)
Process Controllers - Hysteresis: 0.1-9.9°
Process Controllers - Power Consumption: 5VA max @230V AC
Process Controllers - Operating Temperature: 0 to 50°C (32 to 122°F)
Process Controllers - Storage Temperature: -20 to 75°C (-4 to 167°F)
Process Controllers - Humidity (Non-Condensing): 95% Relative Humidity
Process Controllers - Weight: 110 grams (.242 lbs)
Process Controllers - Display Type: 7 Segment LED Display
Process Controllers - Digits: 1 row of 3 digits
Process Controllers - Resolution: 1/0.1 Degree for NTC
Process Controllers - Control Output: 10A Relay
Process Controllers - Control Action: On-Off
Process Controllers - Alarm Mode: High alarm, Low Alarm
Process Controllers - Temperature Unit: °C / °F
Process Controllers - Set Points: 1
Process Controllers - Thermistor Range: -40 to 100° C
Process Controllers - Optional Alarm Output: SPST - 5A @ 230V AC, resistive OR SSR Drive - 12V DC, 10mA
Process Controllers - Modes: Heat and Cool
Process Controllers - Defrost Time / Frequency: Programmable from 0-99min , 0-99 sec/min/hr
Process Controllers - Restart Time Delay: Adjustable 0-99min
Process Controllers - NTC Input: 0.25% of Full Scale ±1°C
Process Controllers - Alarm Output: 5A Relay
