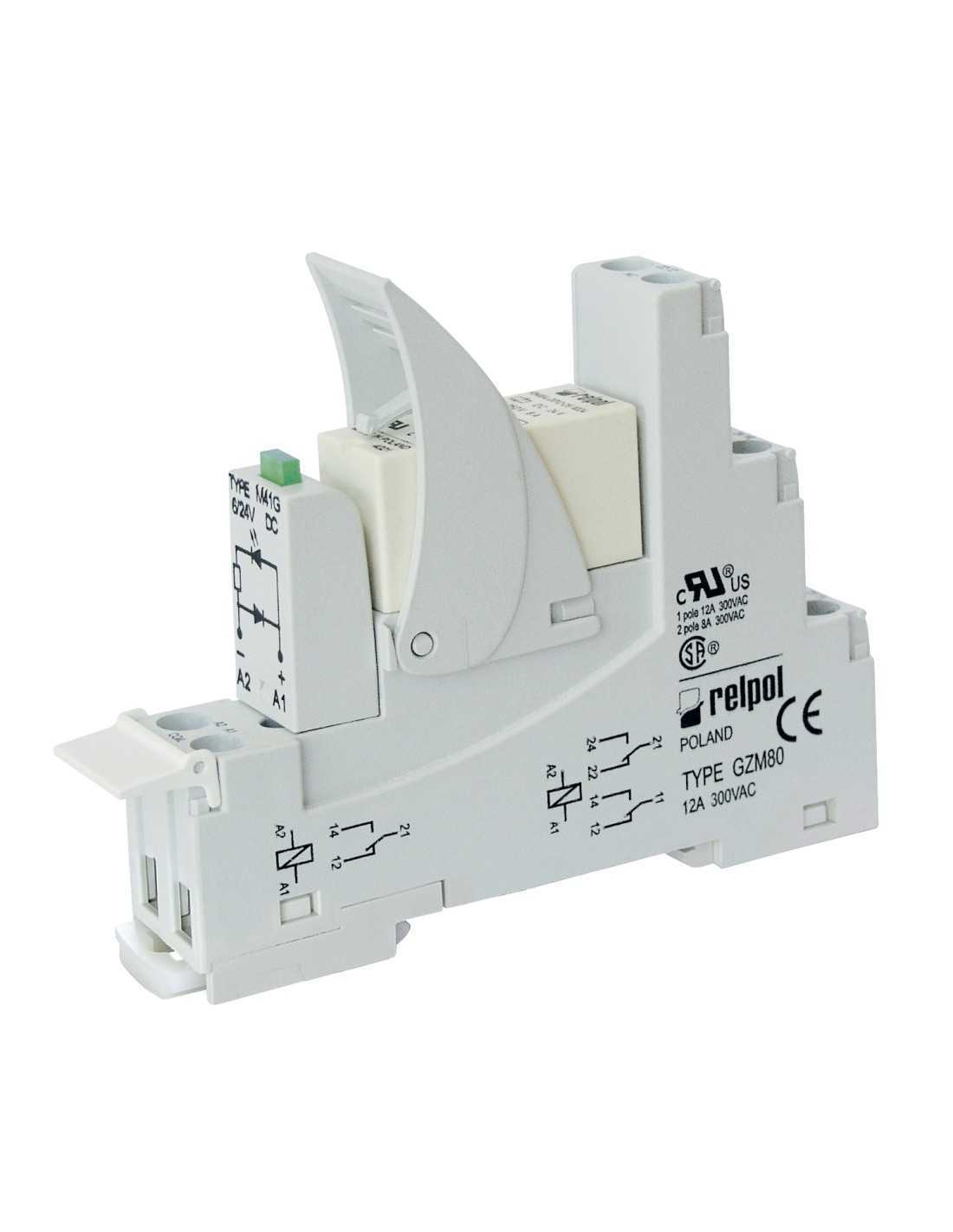

PI84-110DC-00LD - GTM80 Socket, PI84 Interface Relay
PI84 Interface Relay
GZM80 Socket - PI84 DPDT DC Coil
Standard Features

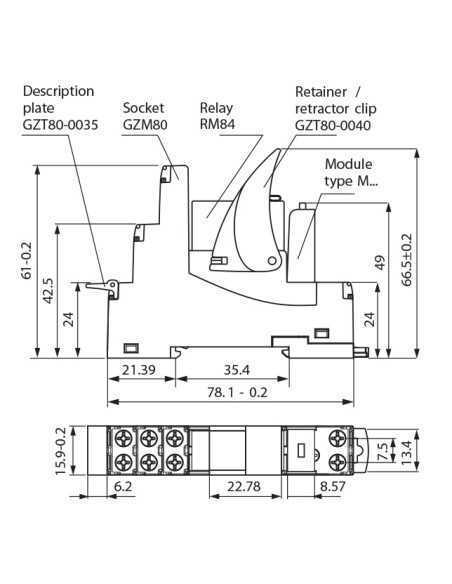

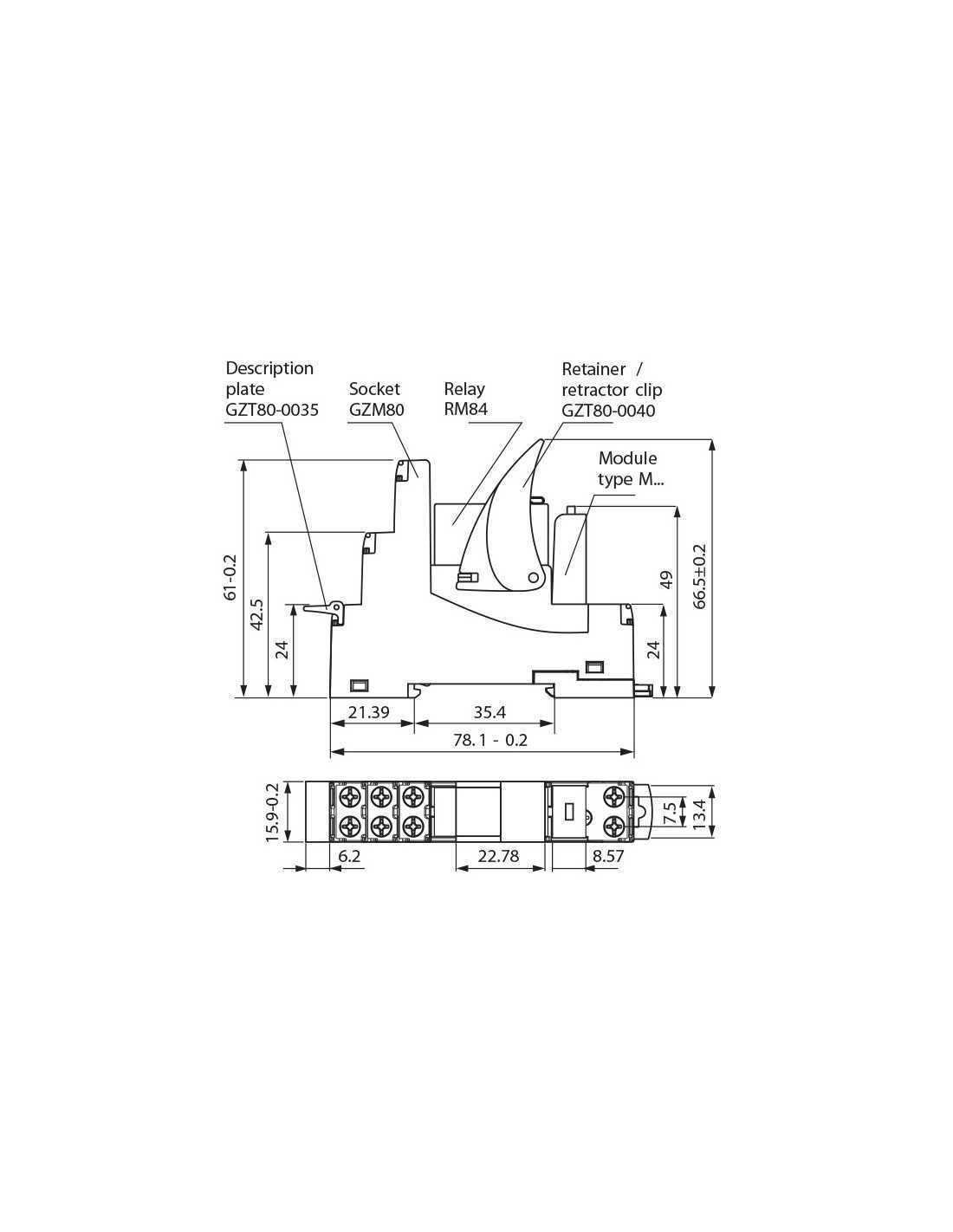

Interface relay PI84 with socket GTZ80, designed for continuous operation, consists of: electromagnetic relay RM84, grey plug-in socket GZT80, signalling / protecting module type M..., retainer / retractor clip GZT80-0040 (plastic), white description plate GZT80-0035
Pre-assembled relay and socket combination simplifies installation and replacement
Compact industrial design saves panel space
35 mm rail mount acc. to EN 60715 or on panel mounting with one M3 screw
Compatible with signaling, protection, and interconnection accessories for flexible system integration
Available with sealed IP67 relay protection and cadmium-free contacts
May be linked with interconnection strip type ZGGZ80
DATA Sheet Link
- Industrial Relays - Coil Voltage (V)
- 110
- Industrial Relays - Coil Type
- DC
- Industrial Relays - Coil resistance at 20 °C in Ω
- 25200
- Industrial Relays - Coil operating range max. (at 55°C)
- 280
- Industrial Relays - Coil operating range min. (at 20°C)
- 77
- Industrial Relays - Type of Module
- M43G
- Industrial Relays - Current
- 8A
- Industrial Relays - Voltage
- 250V AC / 24V DC
- Industrial Relays - Wire Range
- 2.5 mm2 / 24-14 AWG
- Industrial Relays - Torque
- 0.7 Nm
