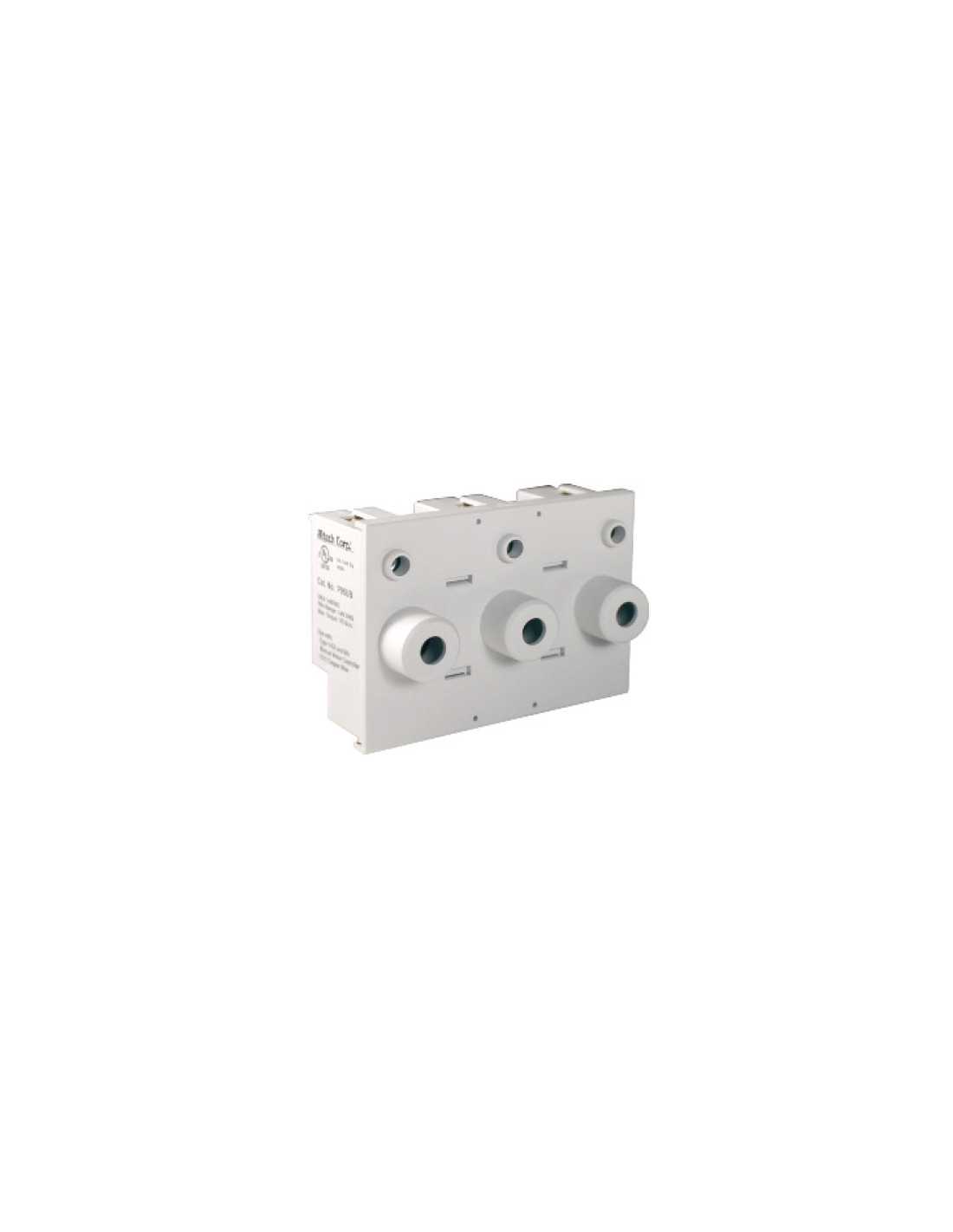

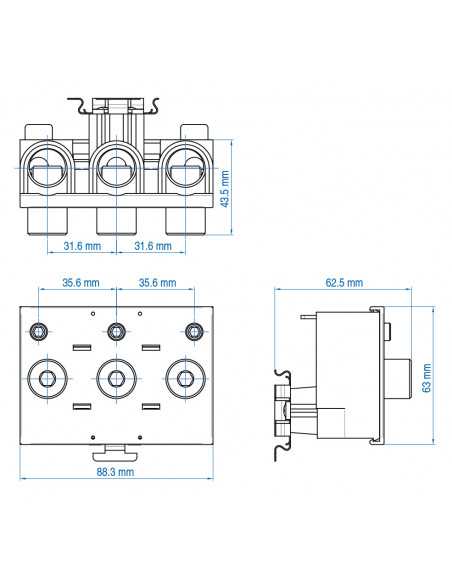

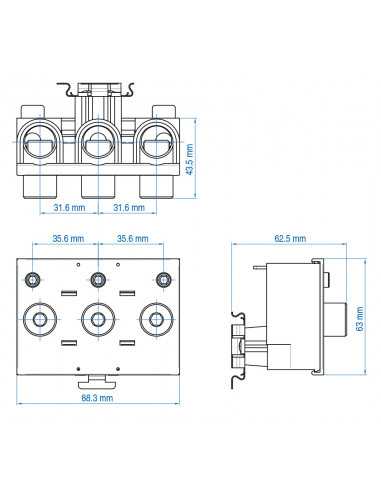

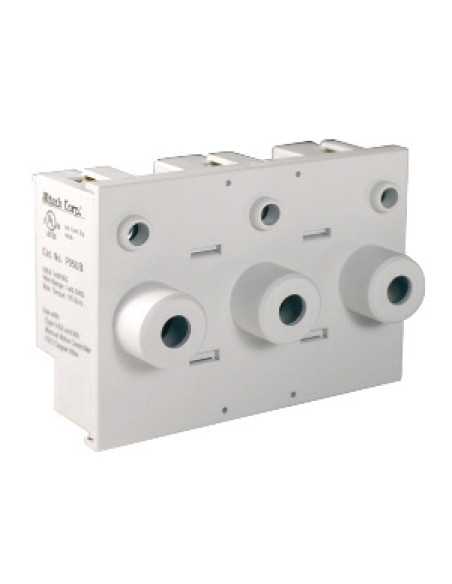

P95UB - Power Feed Block
Electrical rating: 200A/ 600V AC/DC
Wire Ranges: 1-4/0 AWG Cu
Wire Temperature Rating: 75°C
Required Torque: 19.5 Nm (175 lb. in.)
Material of Lug: Brass
Insulation Material: Polyamide
| For use with: | UL1077/508 18 and 25sqmm |
| 3 phase Busbars (standard spacing only) |
