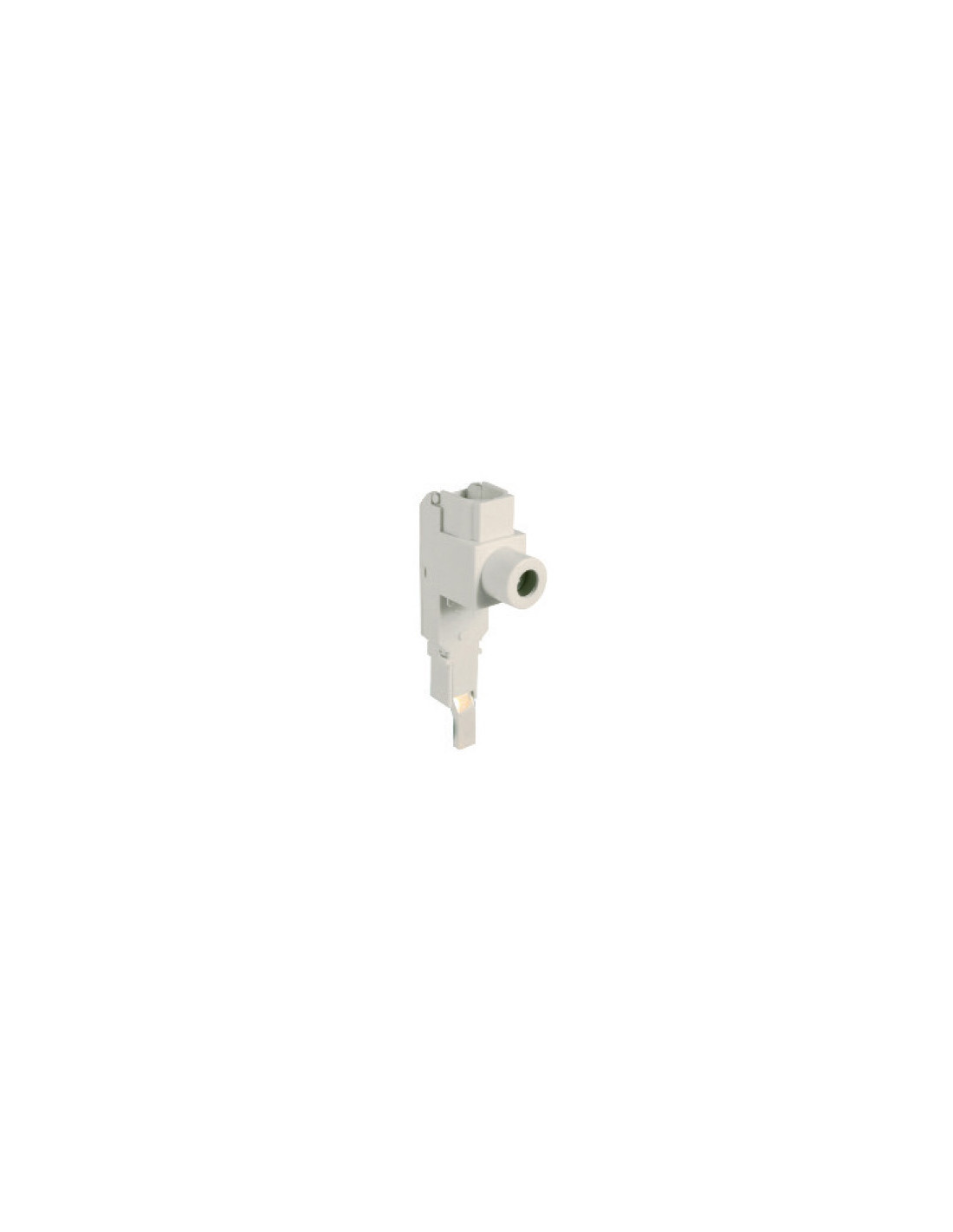

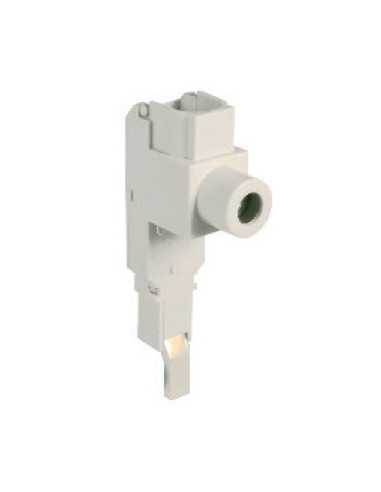

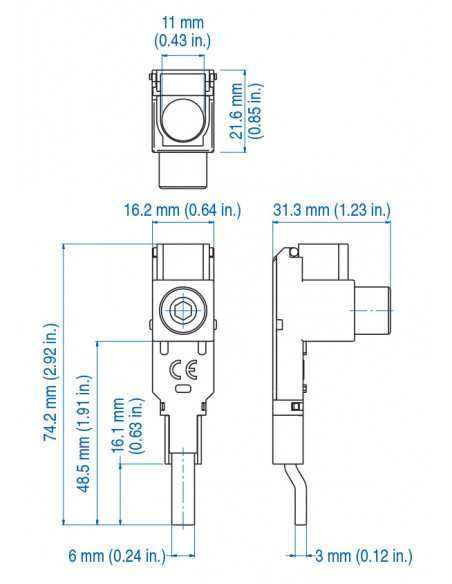

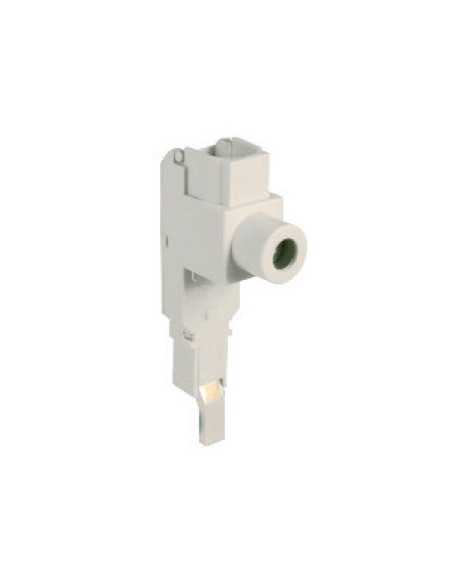

P35ULT - Power Feed Lug
Electrical rating: 115A/600V AC/DC
Wire Ranges: 14-2 AWG Cu
Wire Temperature Rating: 75°C
Required Torque: 4Nm (35.4 lb. in.)
Material of Lug: Brass
Insulation Material: Polyamide
For use with: UL489 1, 2, 3 Phase Busbar
Tap to zoom
