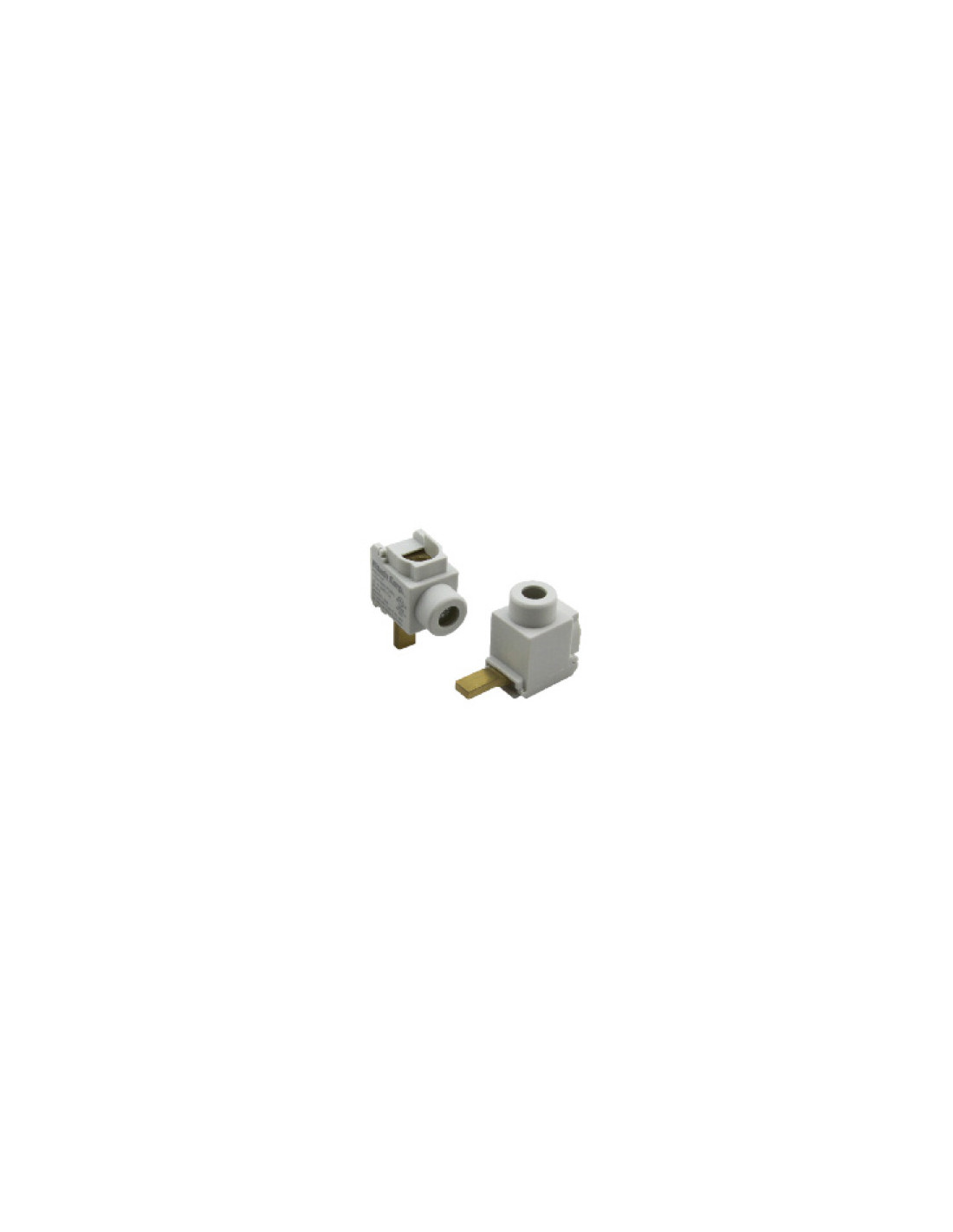

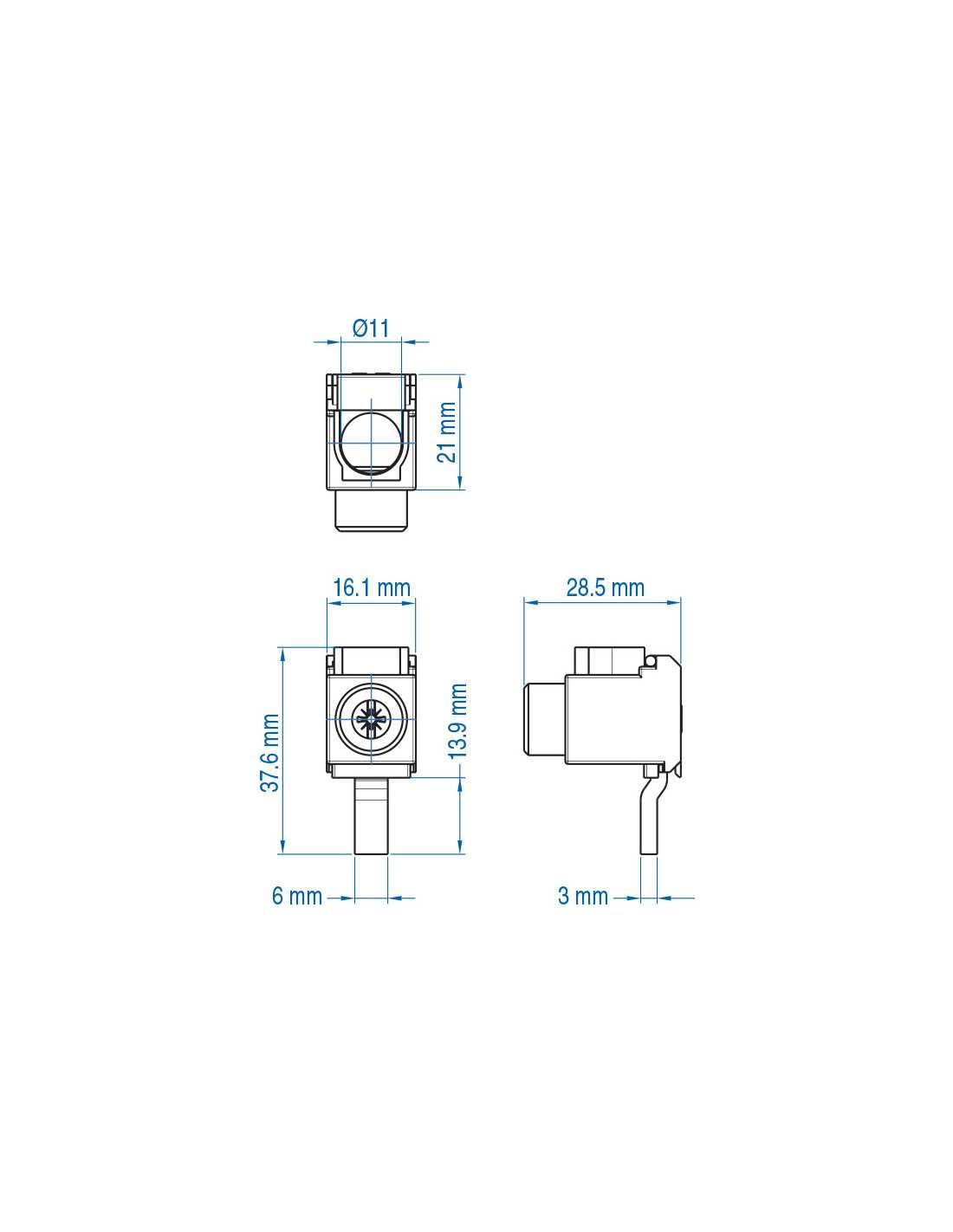

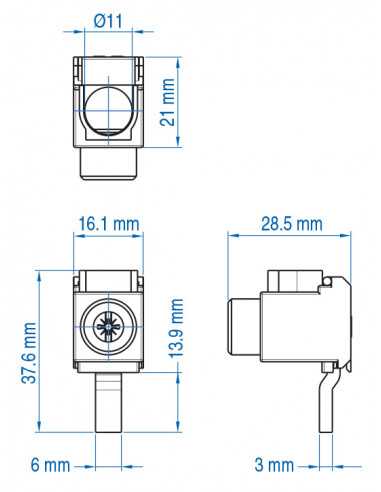

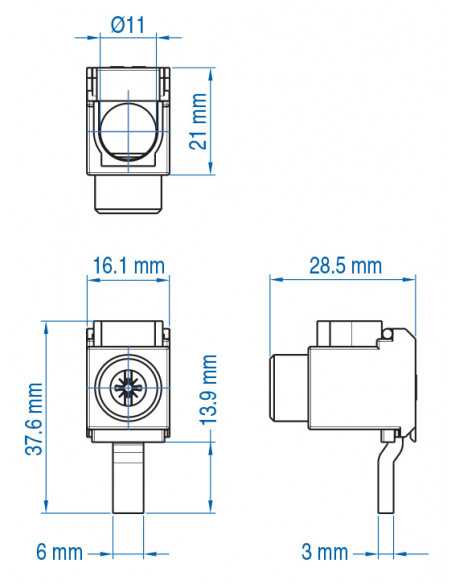

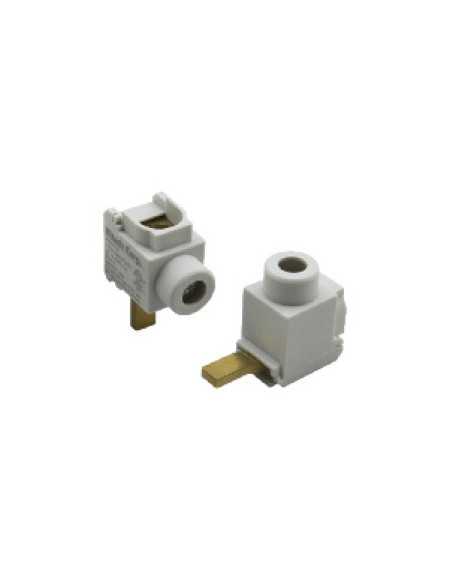

P50UT-LP - Power Feed Lug
Electrical rating: 115A/1000V AC/DC
Wire Ranges: 10-1/0 AWG Cu
Wire Temperature Rating: 60°C
Required Torque: 5.6Nm (50 lb. in.)
Material of Lug: Brass
Insulation Material: Polyamide
| For use with: |
| |
| 1 phase Busbar |
Tap to zoom
