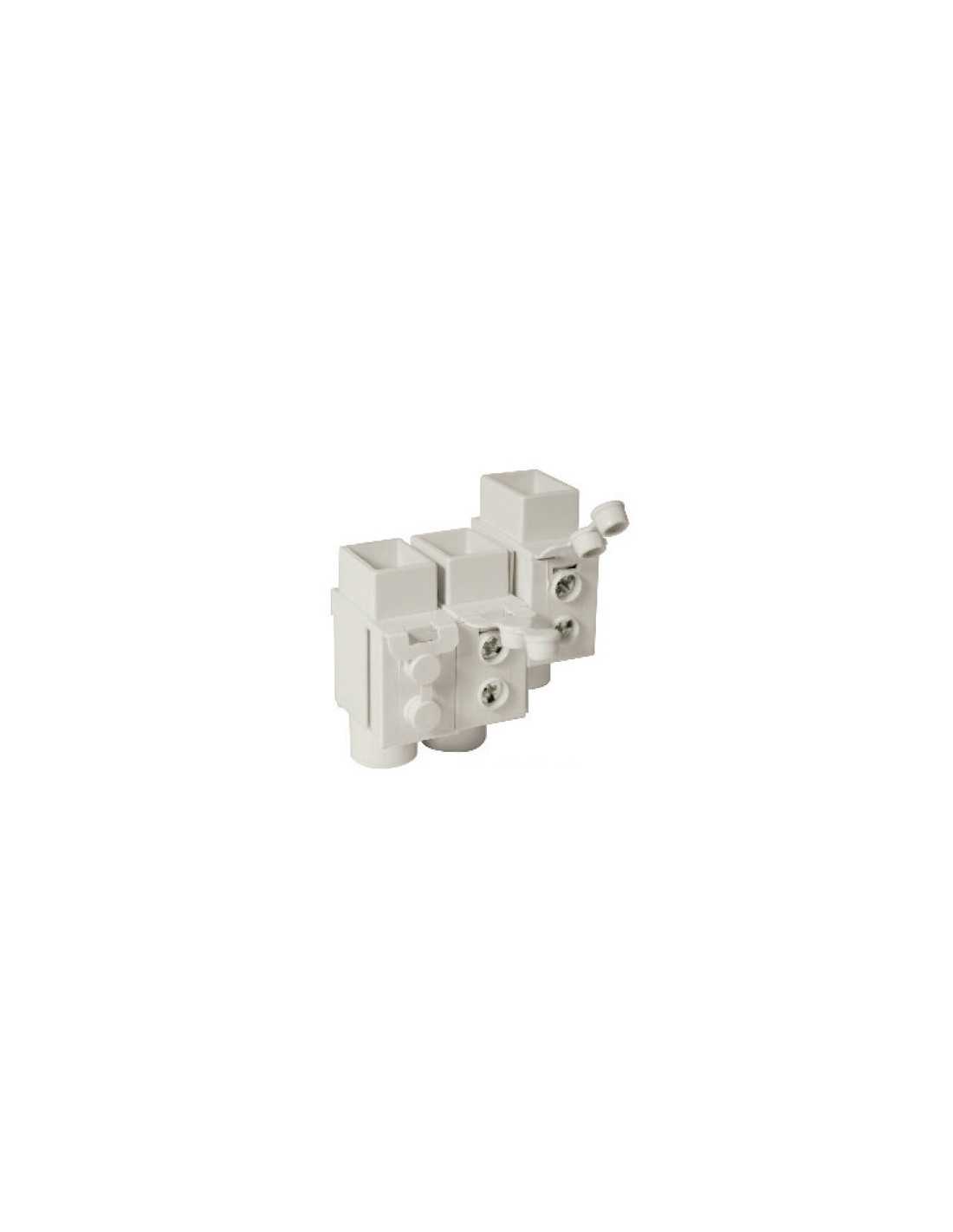

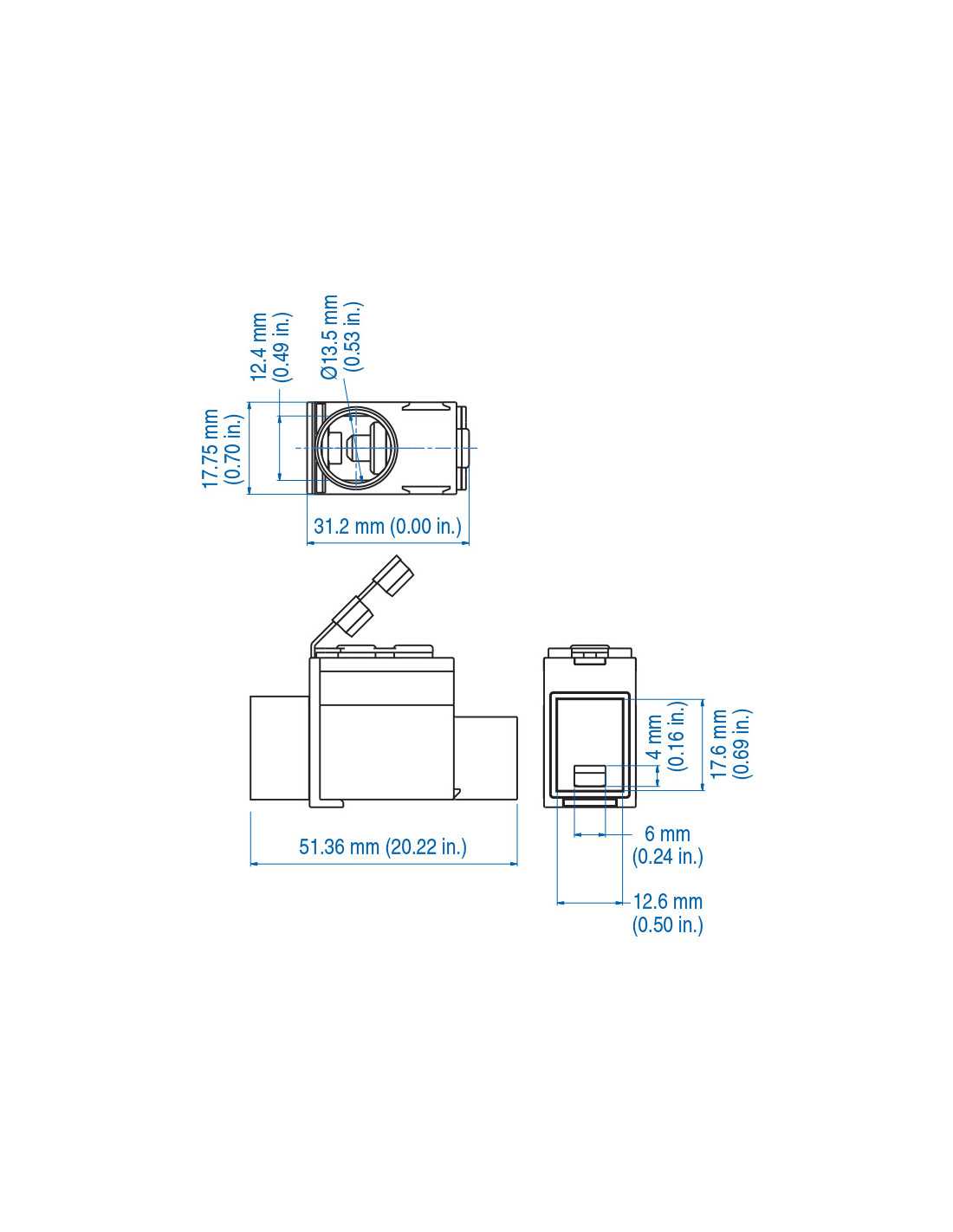

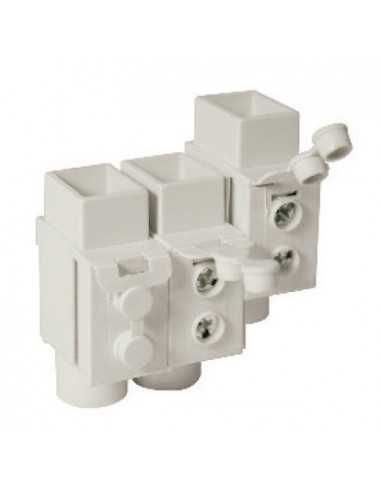

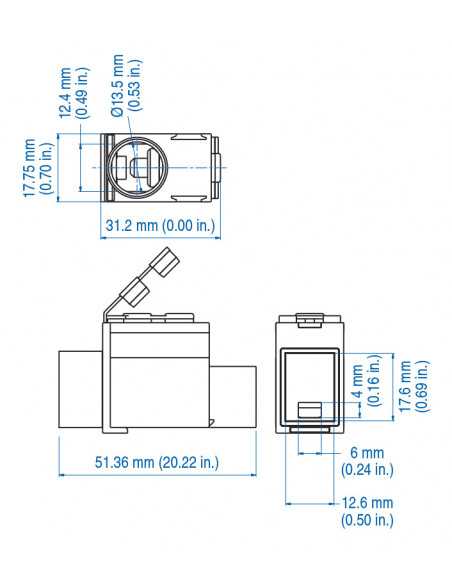

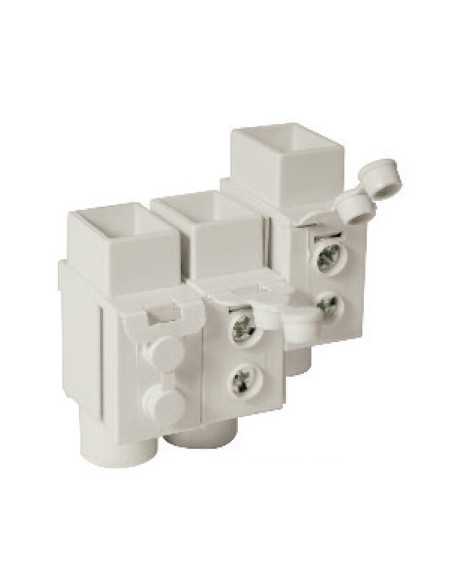

P50ULB - Modular Direct Power Feed
Electrical rating: 115A/600V AC/DC
Wire Ranges: 14-2 AWG Cu
Wire Temperature Rating: 75°C
| Required Torque: | Cable Side: 4Nm/31 lb. in. (14-6AWG) |
Cable Side: 4Nm/35.4 lb. in. (4-1AWG) | |
| Busbar Side: 2.5Nm/22 lb. in. |
Material of Lug: Brass
Insulation Material: Polyamide
For use with: UL489 1, 2, 3 Phase Busbar
Tap to zoom
