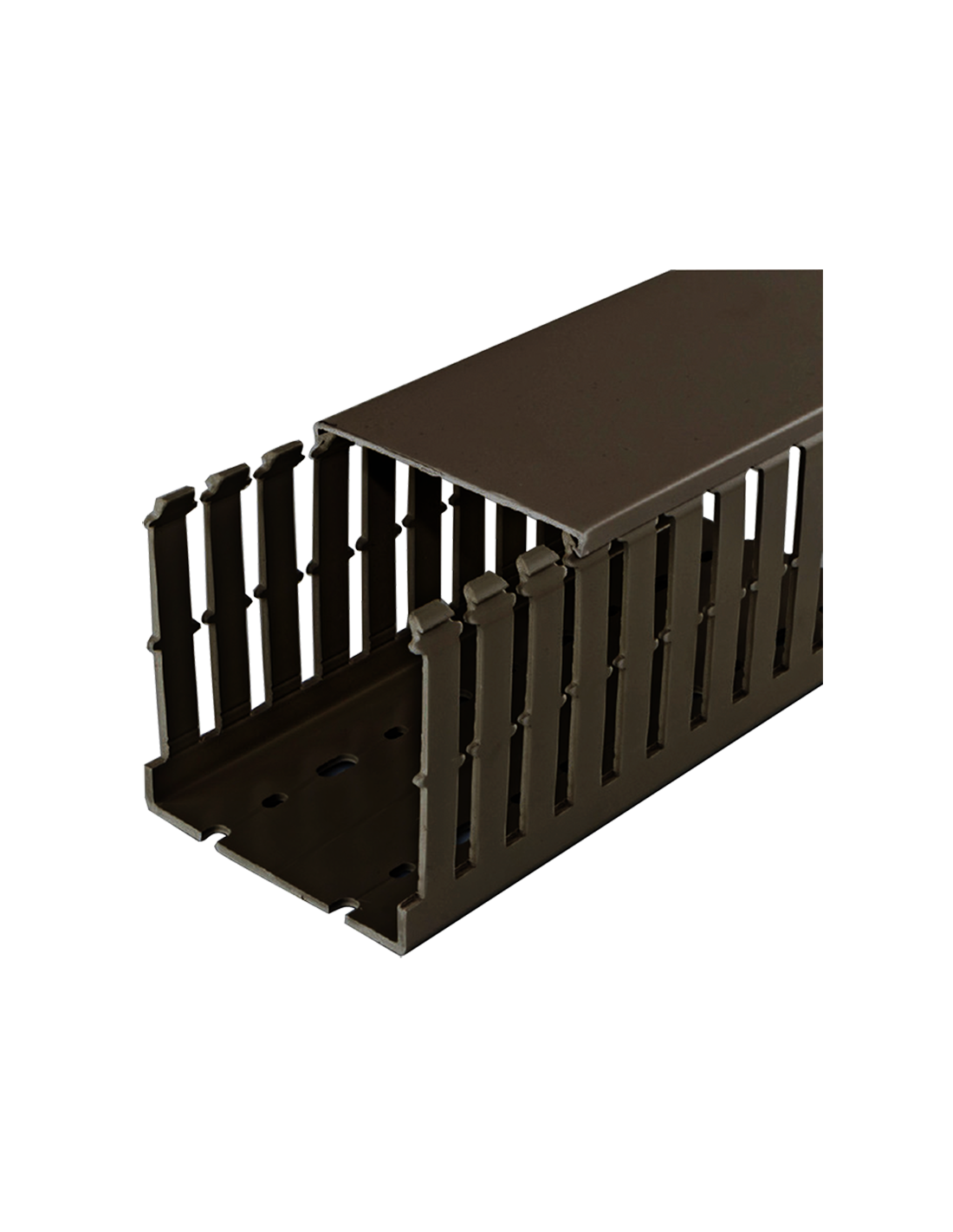

Wire Ducts
B100X50T/B
- Ideal for use with slimmer terminal blocks where more access is required
- Improves appearance of panels with cables out in best position
- 0.49" slot pitch
- 0.20" slot width
- 16 sizes in a choice of gray, white or black
- UL, CSA and Lloyds Register approved
Related products and accessories
Supplied with lid.
- Nominal Size - w x h (inches)
- 4" x 2"
- External Dimensions: Width - inches (mm)
- 3.86 (98)
- External Dimensions: Height - inches (mm)
- 1.89 (48)
- Standard Pack: no. of lengths - 6 1/2' each
- 4
- Standard Pack - Total feet
- 26
- Material
- Self Extinguishing PVC
- Service Temperature
- +5°F to + 140°F (-15°C to + 60°C)
- Standards
- base slots to EN50085-2-3
- Standard Colors
- Black
- Flammability
- UL94 V-O rated material
B100X50T/B
