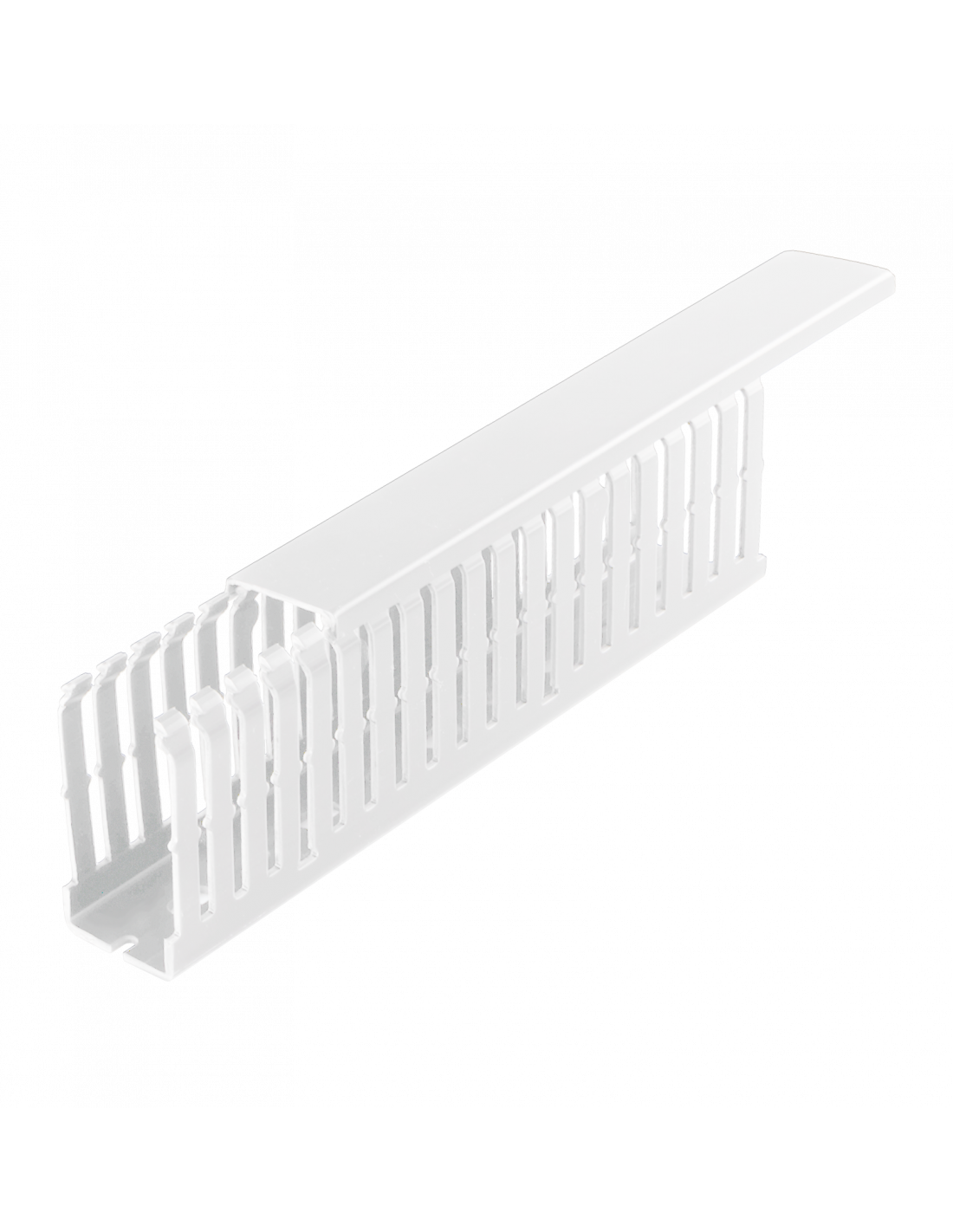

Wire Ducts
B50X35T/W
B50X35T/W
- Ideal for use with slimmer terminal blocks where more access is required
- Improves appearance of panels with cables out in best position
- 0.49" slot pitch
- 0.20" slot width
- 16 sizes in a choice of gray, white or black
- UL, CSA and Lloyds Register approved
Supplied with lid.
- Nominal Size - w x h (inches)
- 2" x 1 1/2"
- External Dimensions: Width - inches (mm)
- 1.89 (48)
- External Dimensions: Height - inches (mm)
- 1.40 (35.5)
- Standard Pack: no. of lengths - 6 1/2' each
- 8
- Standard Pack - Total feet
- 52
- Material
- Self Extinguishing PVC
- Service Temperature
- +5°F to + 140°F (-15°C to + 60°C)
- Standards
- base slots to EN50085-2-3
- Standard Colors
- White
- Flammability
- UL94 V-O rated material
B50X35T/W
