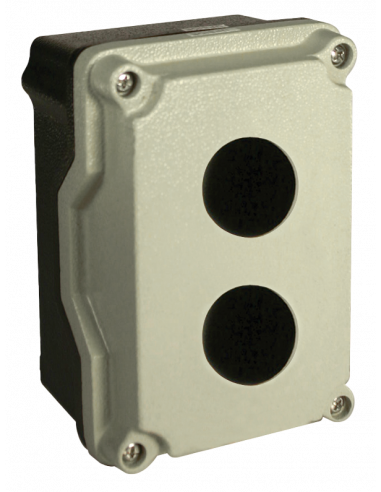

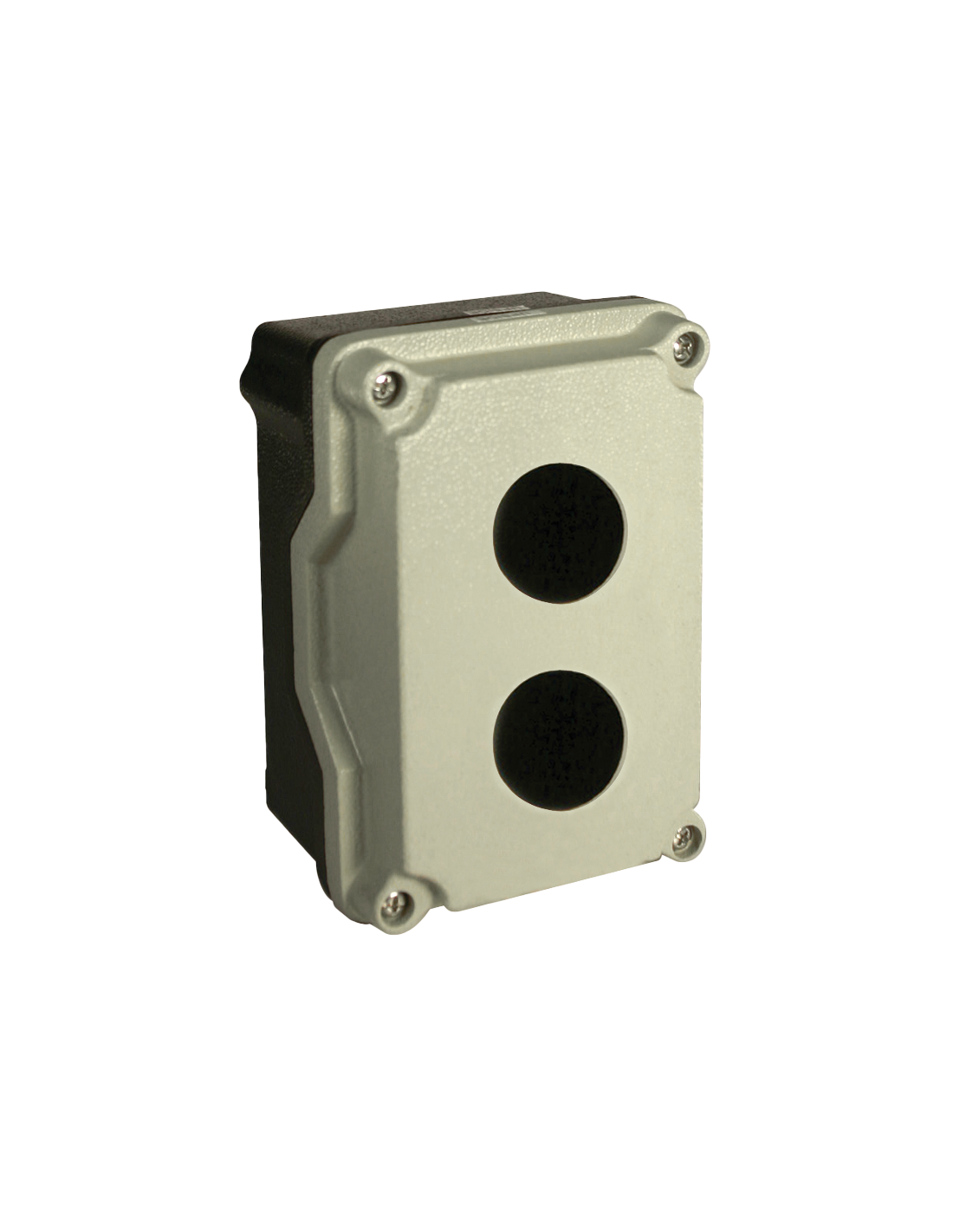

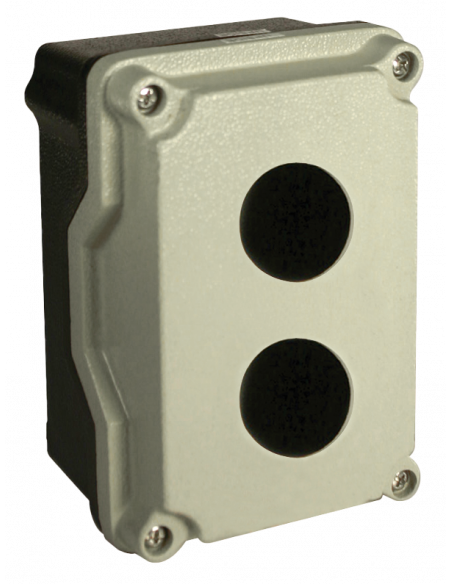

7009C13 Aluminum Enclosures for 22mm Operators
Click for Data Sheet
Aluminum (72mm Height) Pressure Die Cast
- Push Button Size
- 22 mm
- Push Button Enclosure Material
- PDC Aluminum, EH
- Push Button Enclosure Operator Capacity
- 2
- Push Button Enclosure Color
- Black Base/Grey Cover

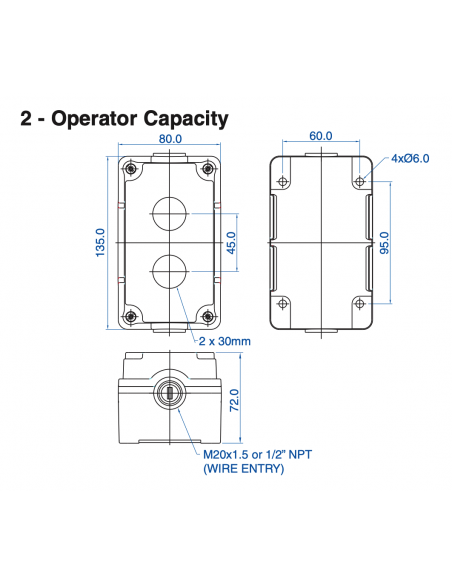

- Push Button Enclosure Dimensions L x W x H
- 80x135x72 mm (3.15x5.32x2.83 in)
- Cable Entry Thread Size (Aluminum Enclosures)
- 2x1/2”-14 NPT
- Mounting Hole Diameter
- 4 x 6mm
7009C13
No reviews
Tap to zoom
