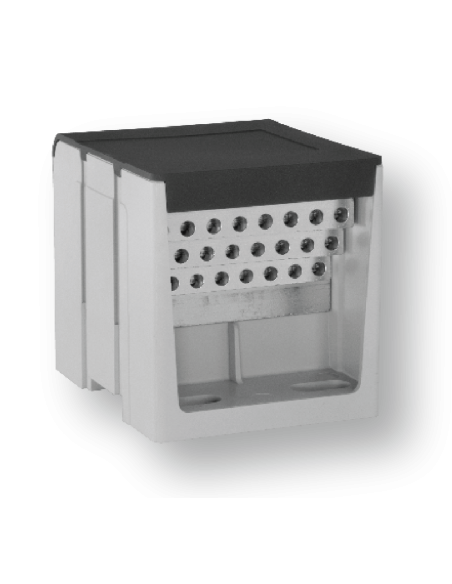

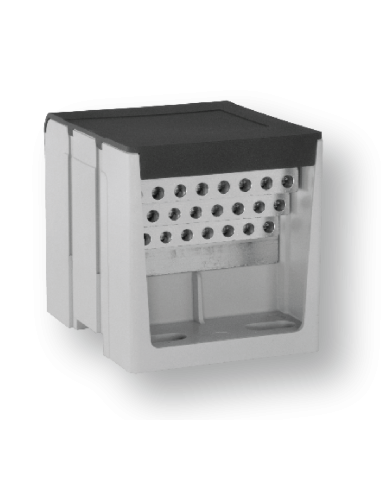

38690 - Power Distribution Block for Solar

The P400A Power Distribution Block is the perfect solution for Solar Combiner Box Applications. With 1500 V UL approval and a maximum current of 800 A for aluminum and copper wires, the PDB400A has the ratings required for the Solar Industry. Easy and quick mounting on DIN rail or directly to a mounting plate provides flexibility and security.

• 800A up to 1500V AC/DC

• 24 Inputs

• Solar Industry ratings

• A perfect solution for Solar Combiner Box Applications.

• 1500 V UL approval and a maximum current of 800 A for aluminum and copper wires.

• Line: 2 Studs M10 x 35mm

• Suitable for listed lugs or copper bars

• Lugs must fit on M10 studs, 1.55" (39mm) max width

• Load: 24x #6 - 14 AWG Copper wire; #6 - 10 AWG Aluminum wire

Technical Ratings

• 1500V per UL 1059 Class E & CSA 22.2 No.158, Class C requirements
• 600V per UL 1059 Service & Industrial Class C requirements
• 600V per CSA 22.2 No.158 Service & Industrial Class E requirements
• Short Circuit Current Rating (SCCR) of 10.000A
• CU 9 - 90°C connector terminal rating UL Listing
• Tested for 1500V AC/DC, rated to UL 1059

DATA Sheet Link

< Product photo may vary depending on part number selection.
