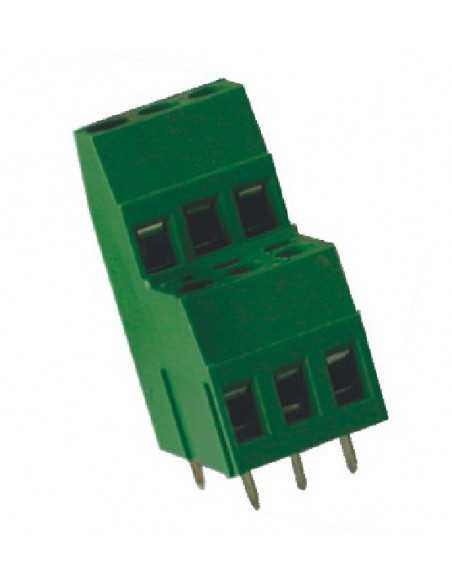

MVDK-2521
PCB Term Blk, 5.08mm, 42 Pole, Dbl Level, green Contact Altech for 3D Step File at info@altechcorp.com |
| 16A, 300V, 14-30AWG, 29.5mm height, no offset |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 5.08mm
- Connection Type
- Cage Clamp
- Series
- MVDK25
- Poles
- 42
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 14
- max Wire size solid AWG
- 14
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 2.50
- max Wire size solid sqmm
- 4.00
- Current Rating UL
- 16A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 16A
- Voltage Rating IEC
- 450V
- Height
- 29.50mm
- Length
- 106.68mm
- Number Rows
- 2
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear, Double Row
- Solder Pin Length
- 4.30mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 50
- Packaging
- Carboard Box
- Weight (kg)
- 0.077700
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
MVDK-2521
