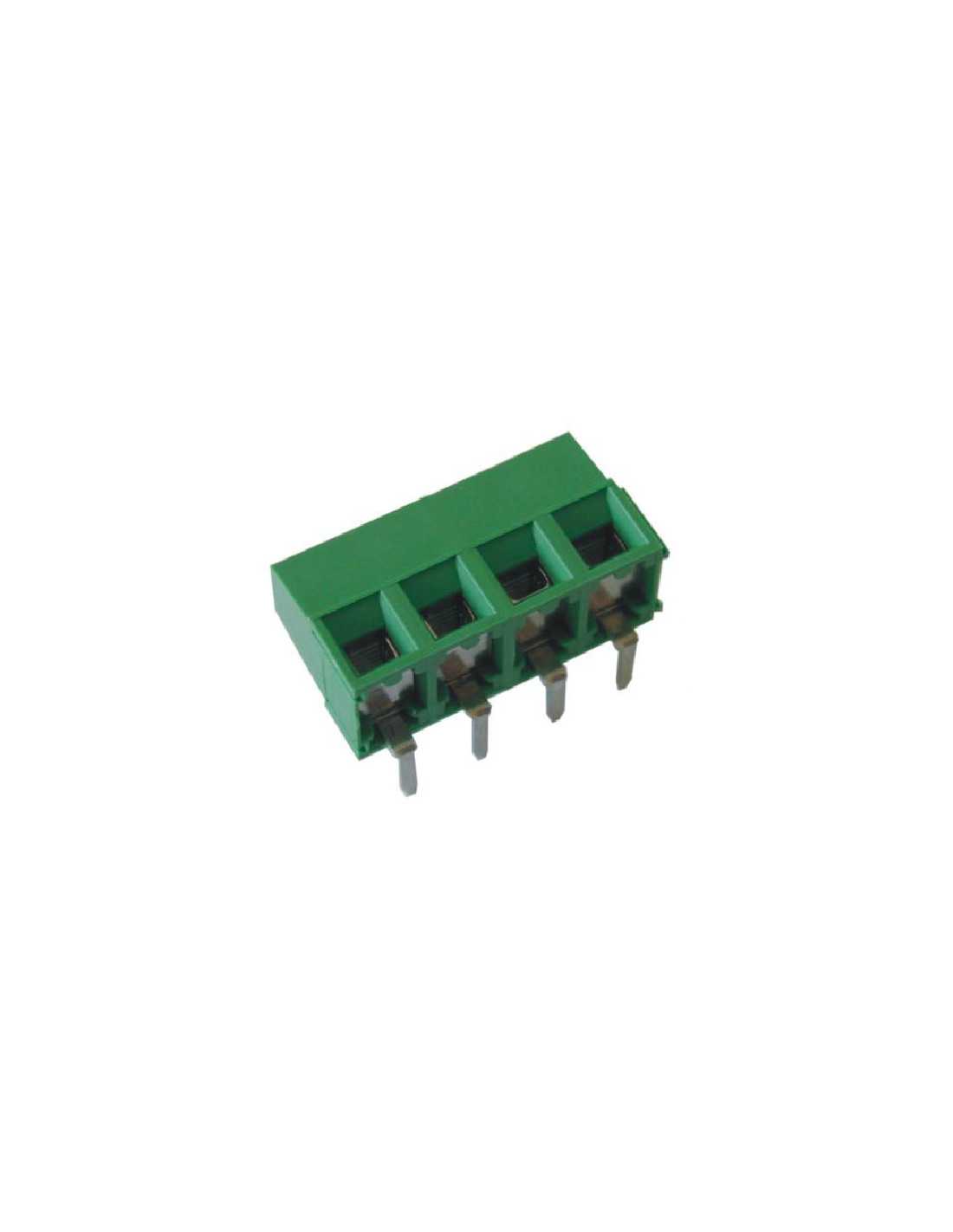

MV1514-5,08-H
PCB Term Blk, 5.08mm, 14 Pole, Top wire, green Contact Altech for 3D Step File at info@altechcorp.com |
Related products and accessories
| 13.5A, 300V, 16-30AWG, 8.1mm height, modular |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 5.08mm
- Connection Type
- Cage Clamp
- Series
- MV15
- Poles
- 14
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 16
- max Wire size solid AWG
- 16
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 1.50
- max Wire size solid sqmm
- 1.50
- Current Rating UL
- 13.5A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 13.5A
- Voltage Rating IEC
- 250V
- Height
- 8.10mm
- Length
- 71.12mm
- Number Rows
- 1
- Mounting
- horizontal
- Wire Entry
- 90°
- PCB Layout
- Linear
- Solder Pin Length
- 3.95mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 50
- Packaging
- Carboard Box
- Weight (kg)
- 0.012698
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040

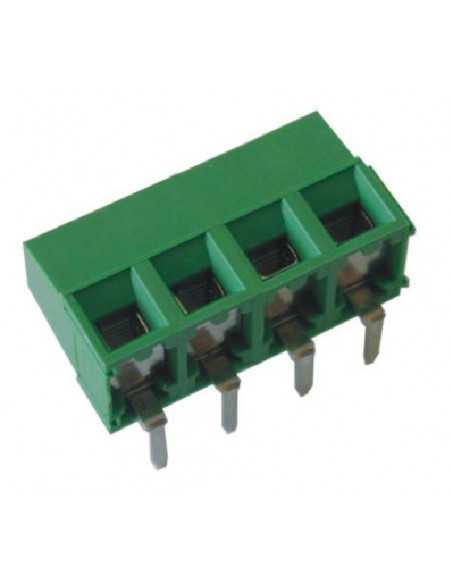

MV1514-5,08-H
