MV1520-5,08-V

MV1520-5,08-V

MV1520-5,08-V

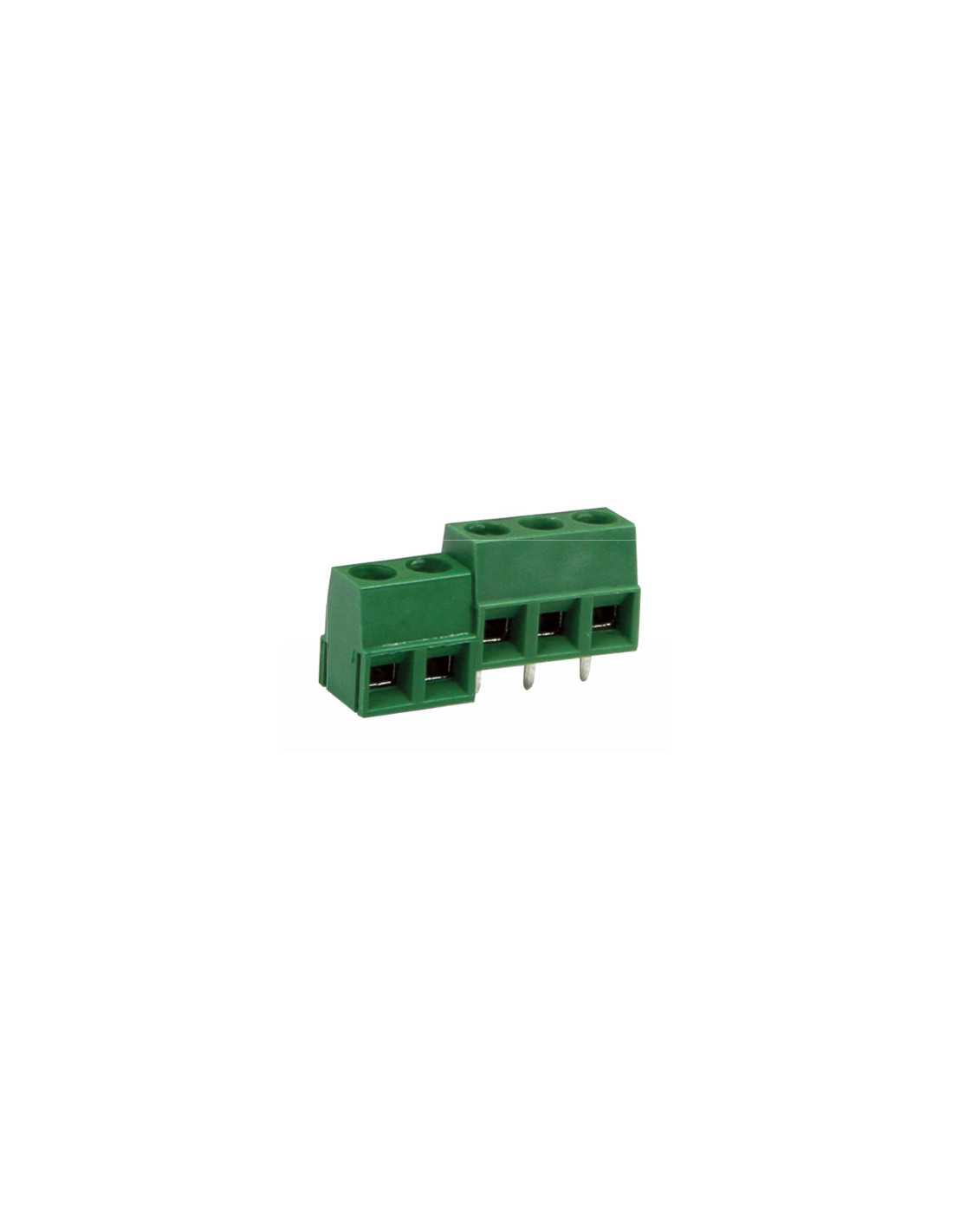

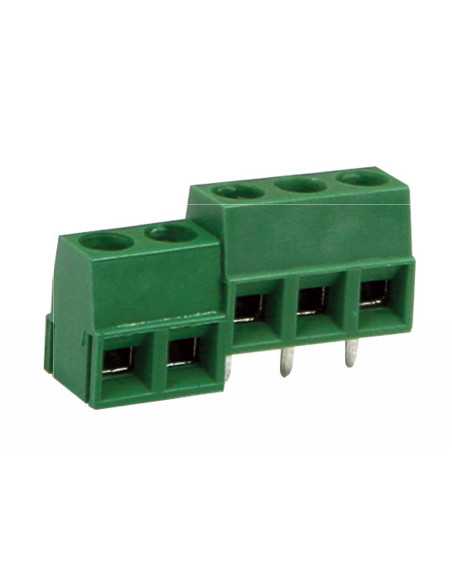

PCB Term Blk, 5.08mm, 20 Pole, Front wire, green

Contact Altech for 3D Step File at info@altechcorp.com

13.5A, 300V, 16-30AWG, 10.6mm height, modular

Color: Green
PCB Type: Fixed
Pin Spacing: 5.08mm
Connection Type: Cage Clamp
Series: MV15
Poles: 20
min Wire Size AWG: 30
max Wire size stranded AWG: 16
max Wire size solid AWG: 16
min Wire size sqmm: 0.25
max Wire size stranded sqmm: 1.50
max Wire size solid sqmm: 1.50
Current Rating UL: 13.5A
Voltage Rating UL: 300V
Current Rating IEC: 13.50A
Voltage Rating IEC: 250V
Height: 10.60mm
Length: 101.60mm
Number Rows: 1
Mounting: Vertical
Wire Entry: 0°
PCB Layout: Linear Center
Solder Pin Length: 3.70mm
PCB Hole Size: 1.30mm
Mounting Type: Wave soldering
Marking: NA
Standard Pack: 50
Packaging: Carboard Box
Weight (kg): 0.017080
Country of Origin: Italy
Tariff Code: 8536.69.4040

Part Number MV1520-5,08-V
