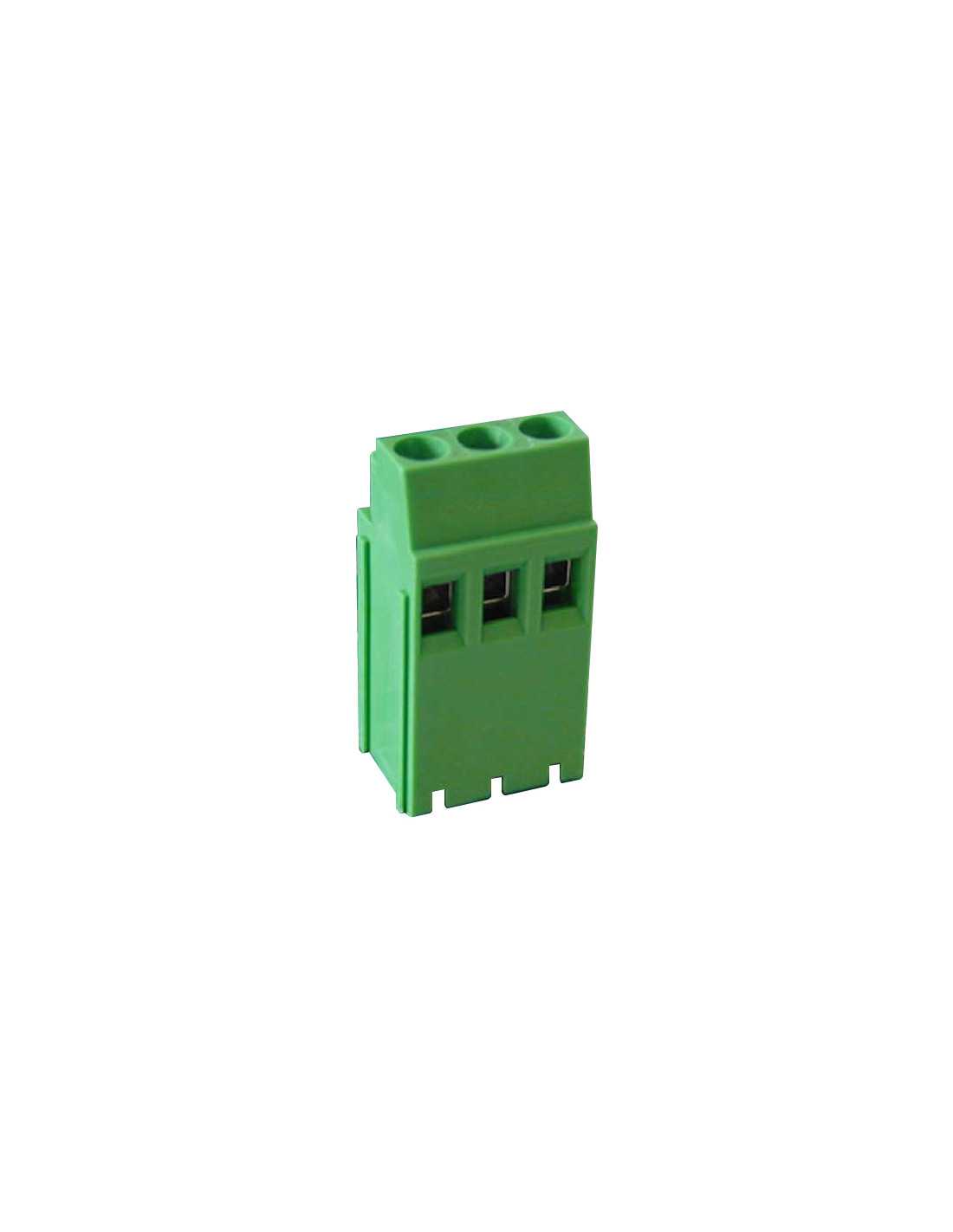

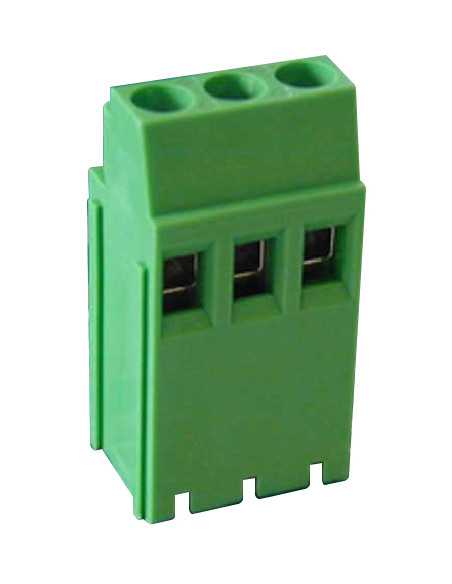

MMT253-5,00-V
PCB Term Blk, 5.00mm, 3 Pole, Front wire, green |
Related products and accessories
| 20A, 300V, 12-30AWG, 29.5mm height, modular |
- Color
- Green
- PCB Type
- Fixed
- Pin Spacing
- 5.00mm
- Connection Type
- Cage Clamp
- Series
- MMT25
- Poles
- 3
- min Wire Size AWG
- 30
- max Wire size stranded AWG
- 12
- max Wire size solid AWG
- 12
- min Wire size sqmm
- 0.25
- max Wire size stranded sqmm
- 2.50
- max Wire size solid sqmm
- 4.00
- Current Rating UL
- 20A
- Voltage Rating UL
- 300V
- Current Rating IEC
- 20A
- Voltage Rating IEC
- 450V
- Height
- 29.50mm
- Length
- 15.00mm
- Number Rows
- 1
- Mounting
- Vertical
- Wire Entry
- 0°
- PCB Layout
- Linear Center
- Solder Pin Length
- 4.80mm
- PCB Hole Size
- 1.30mm
- Mounting Type
- Wave soldering
- Marking
- NA
- Standard Pack
- 100
- Packaging
- Carboard Box
- Country of Origin
- Italy
- Tariff Code
- 8536.69.4040
MMT253-5,00-V
